Type: LED screen dedicated for indoor installation demanding image in high resolution

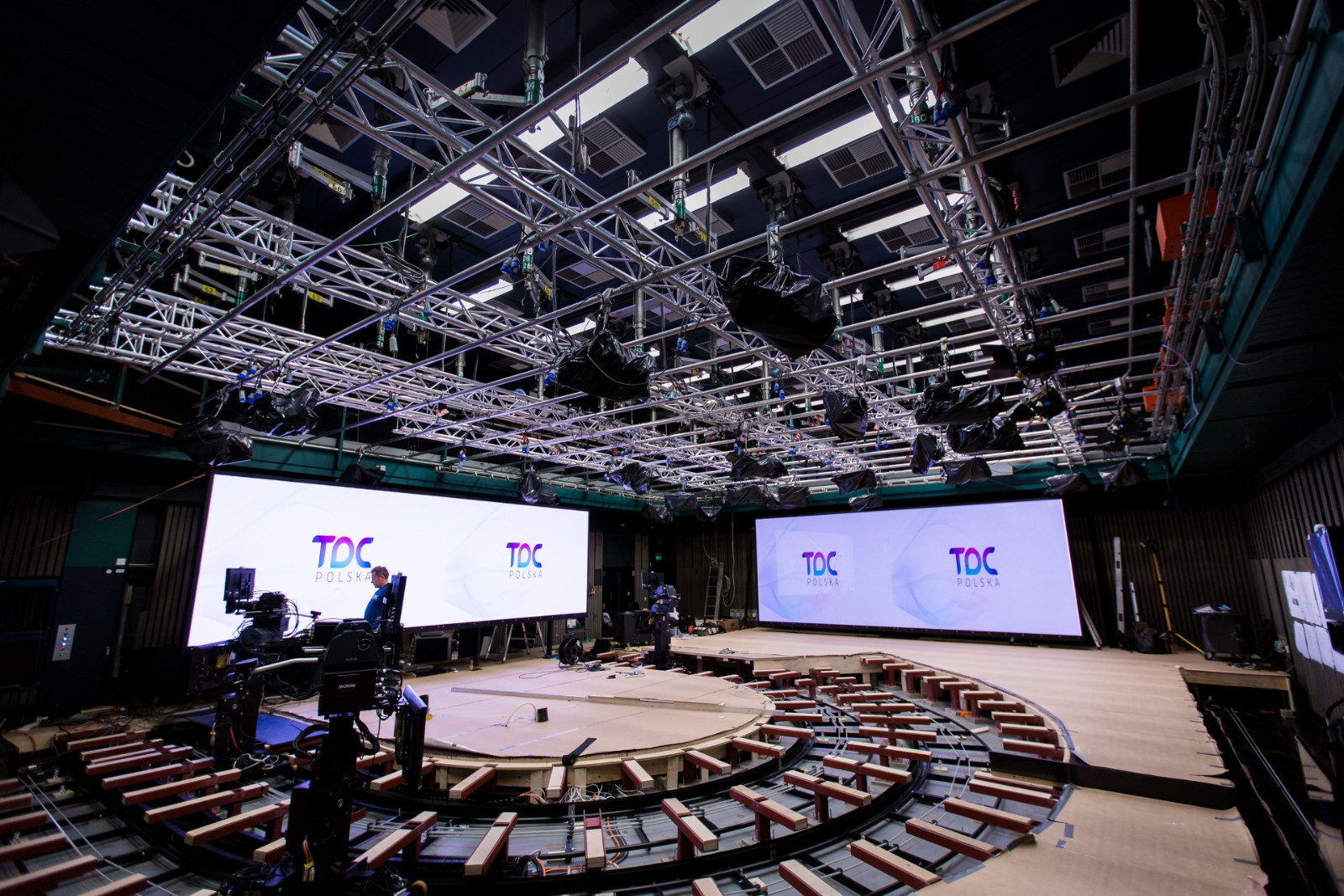

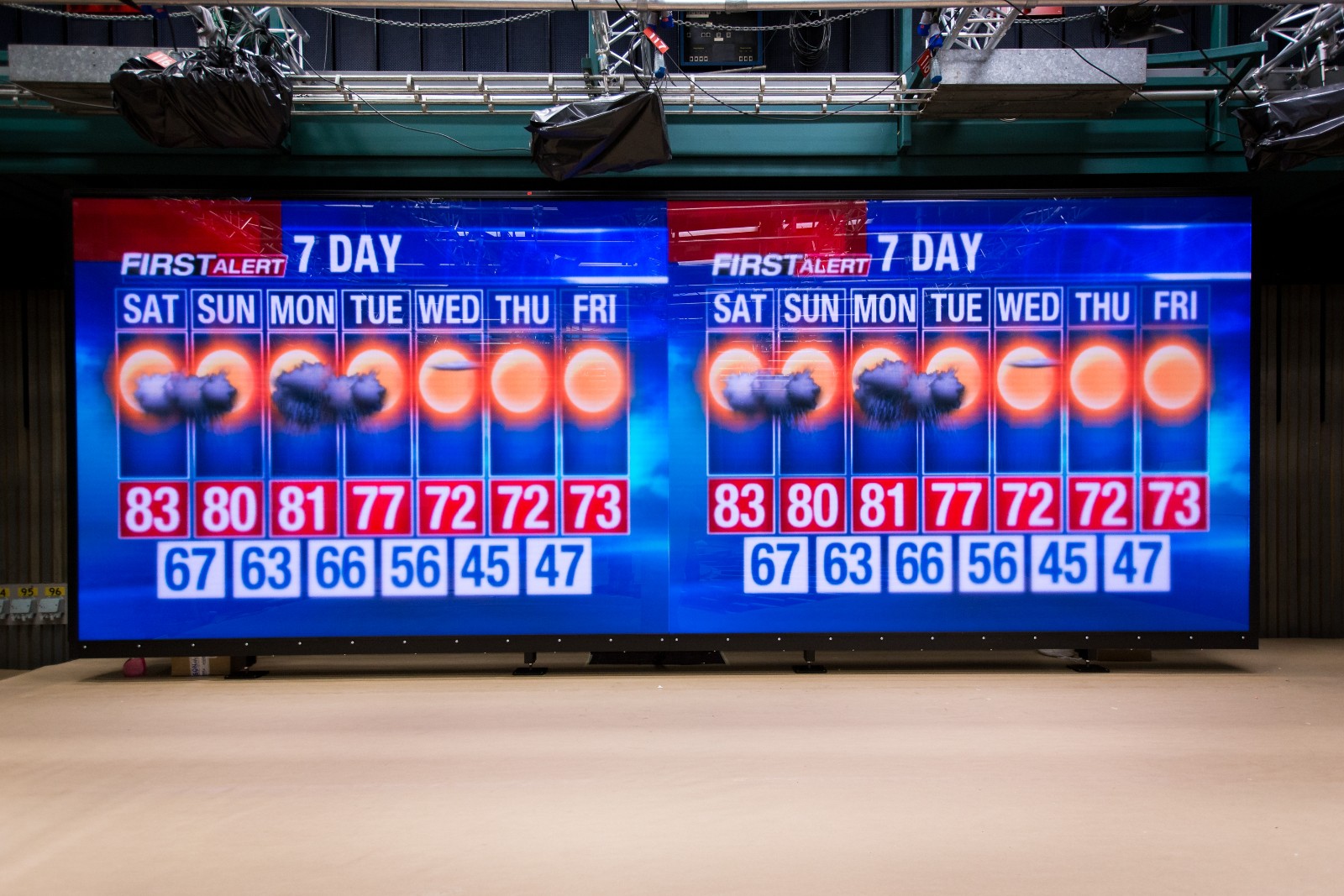

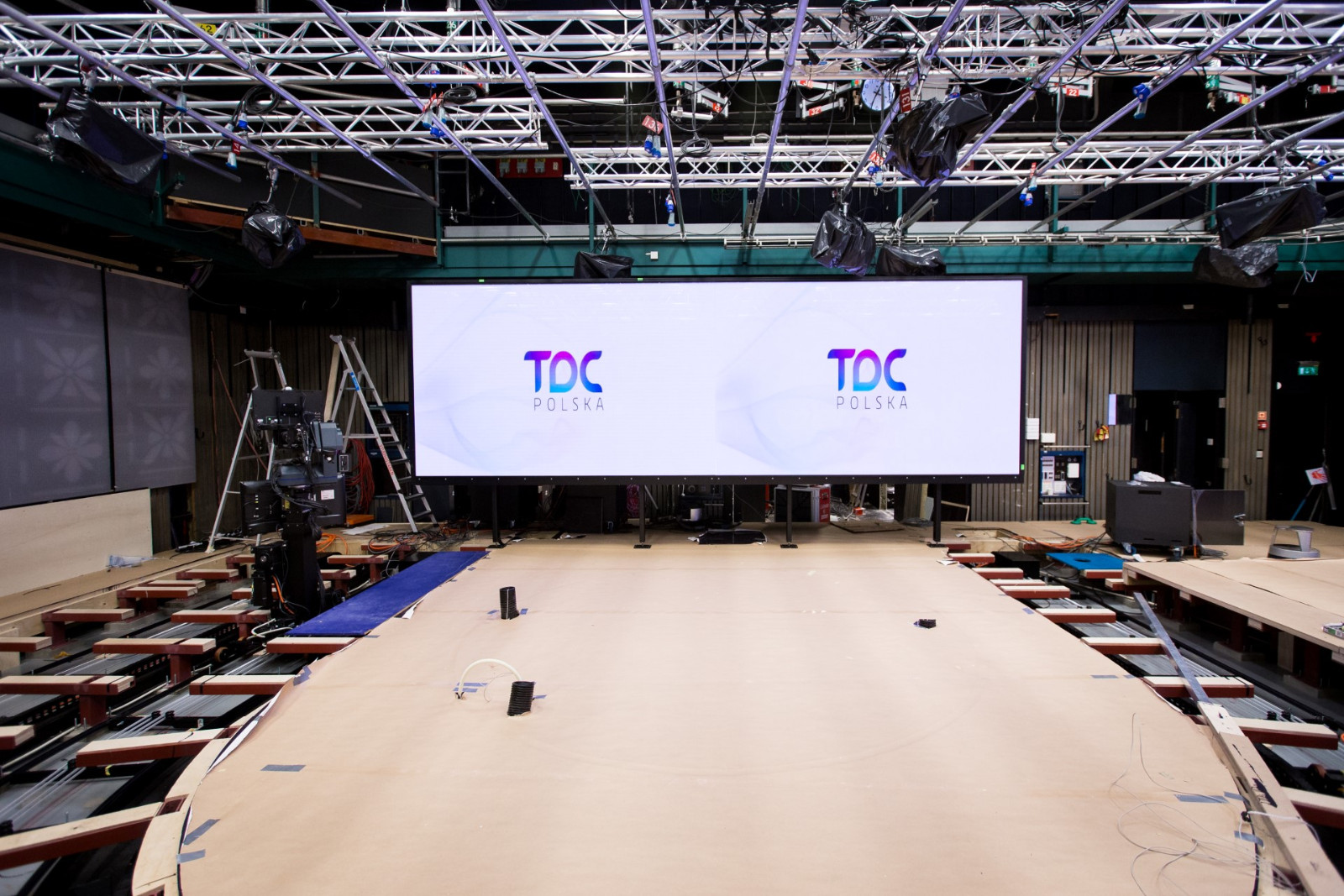

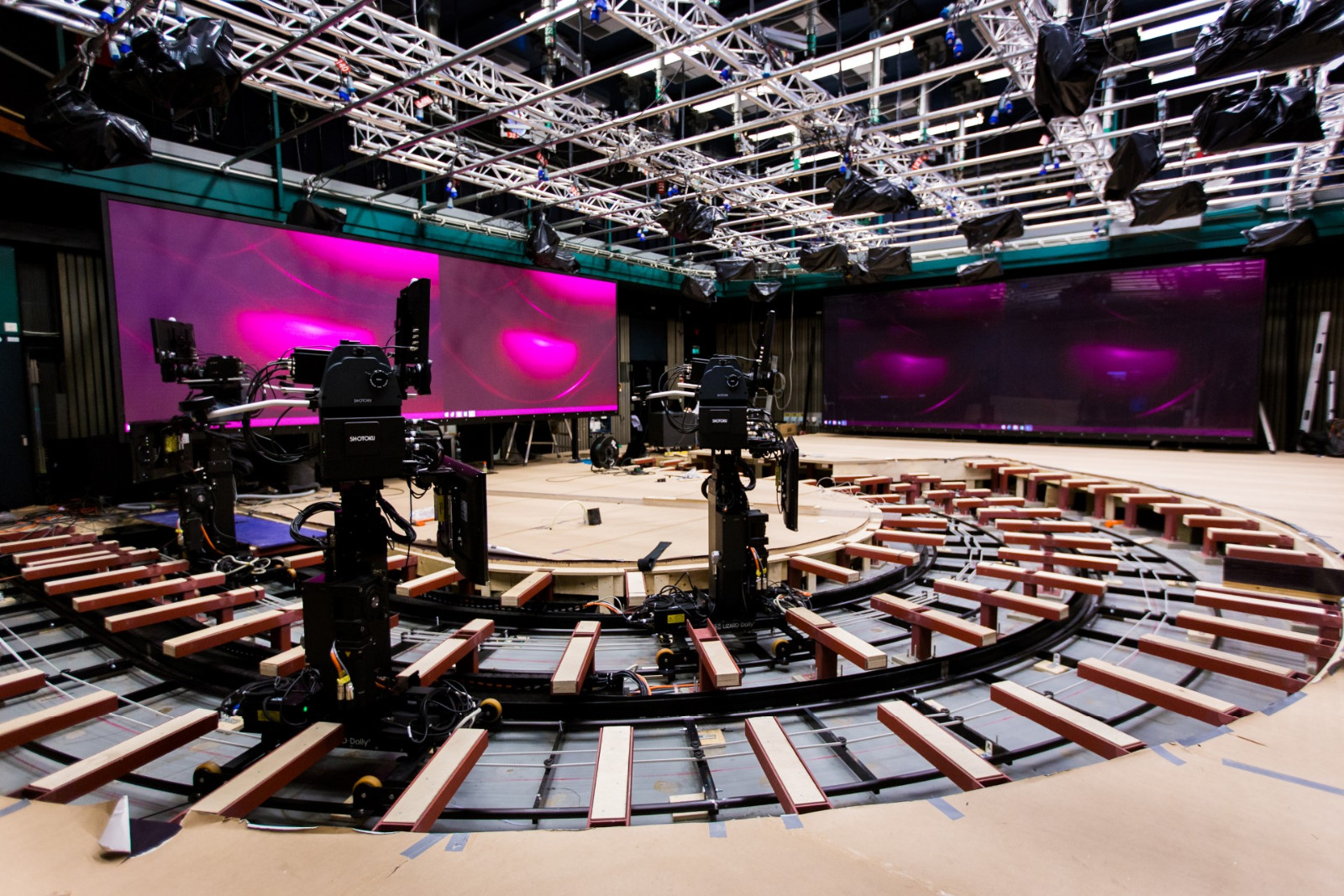

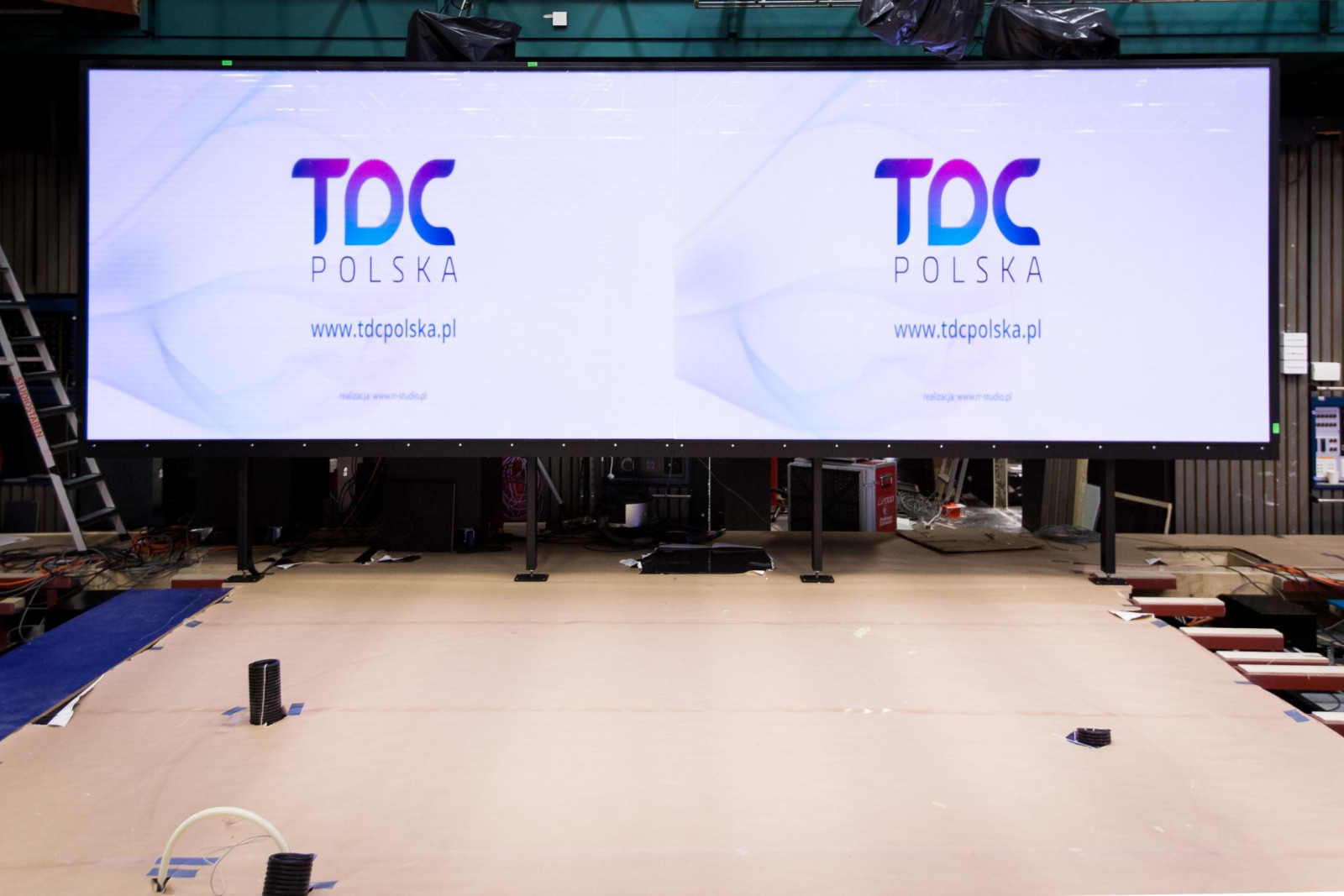

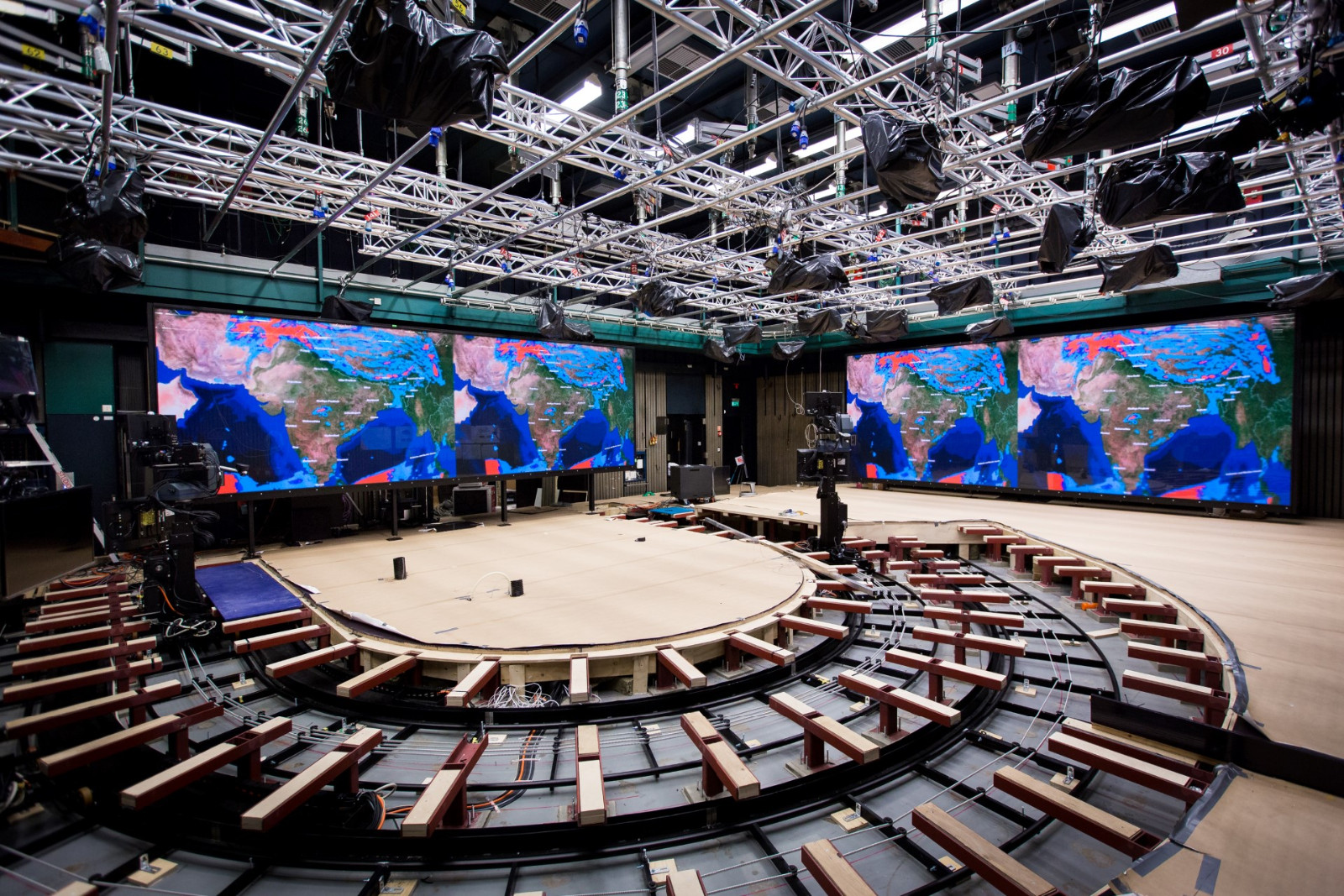

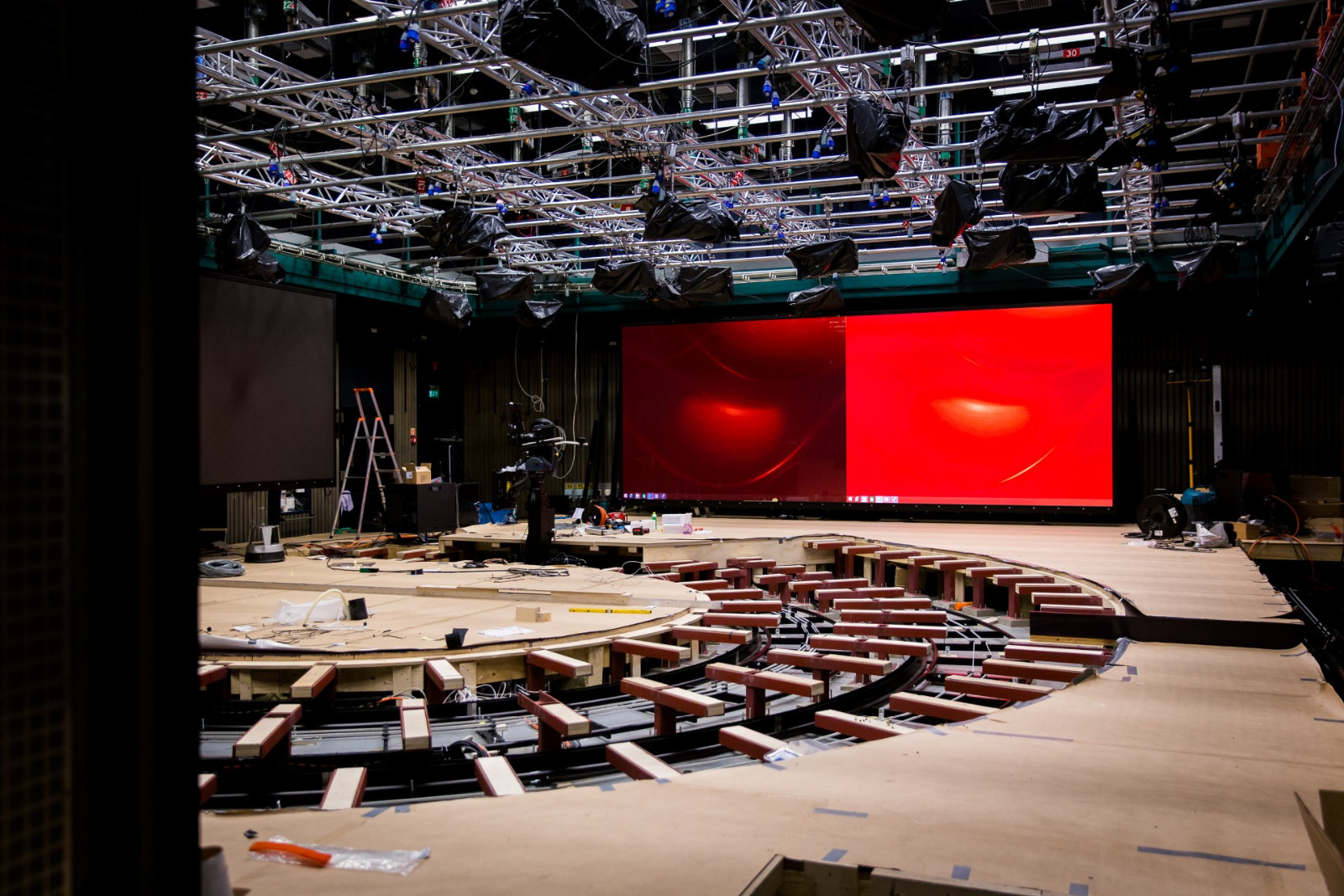

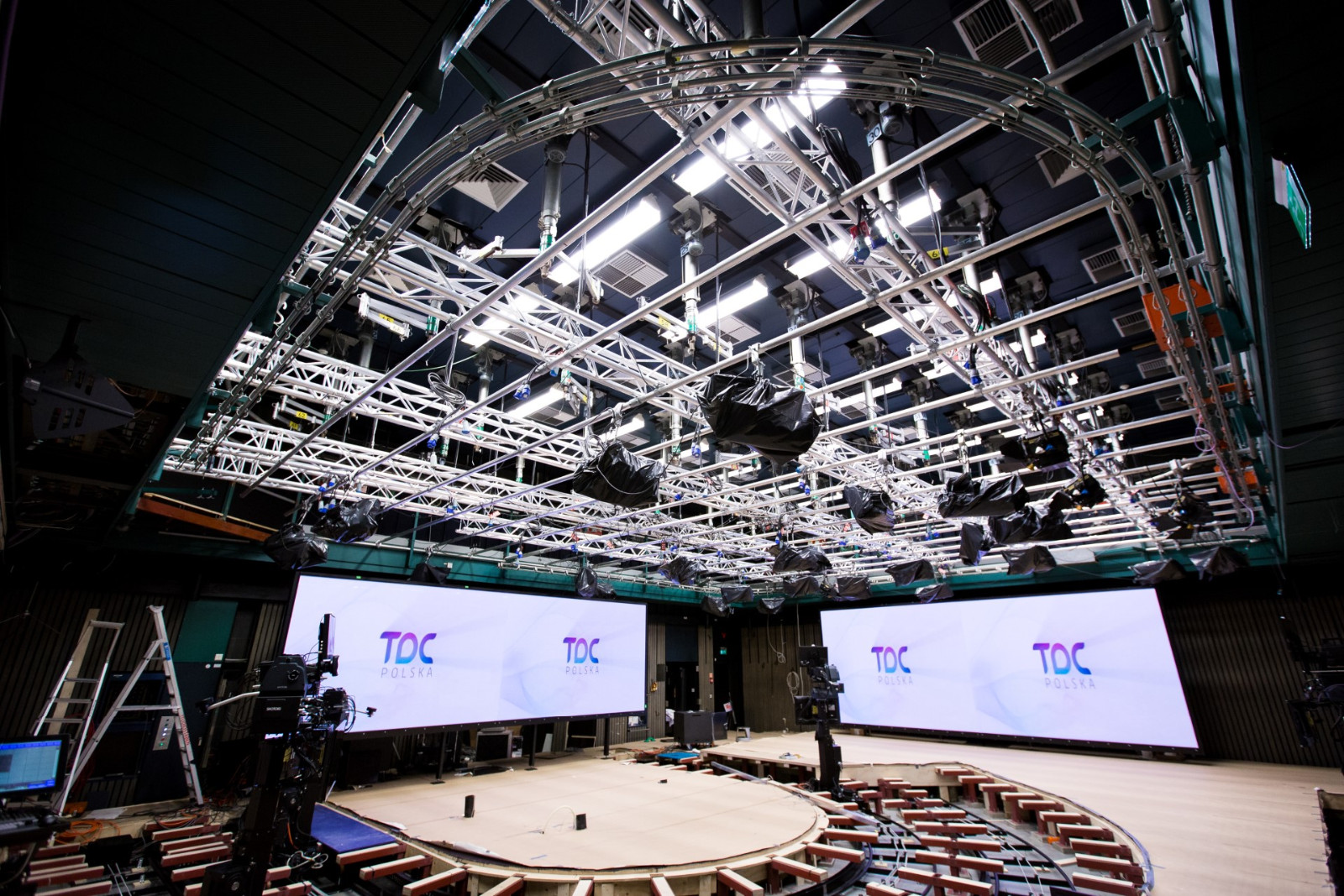

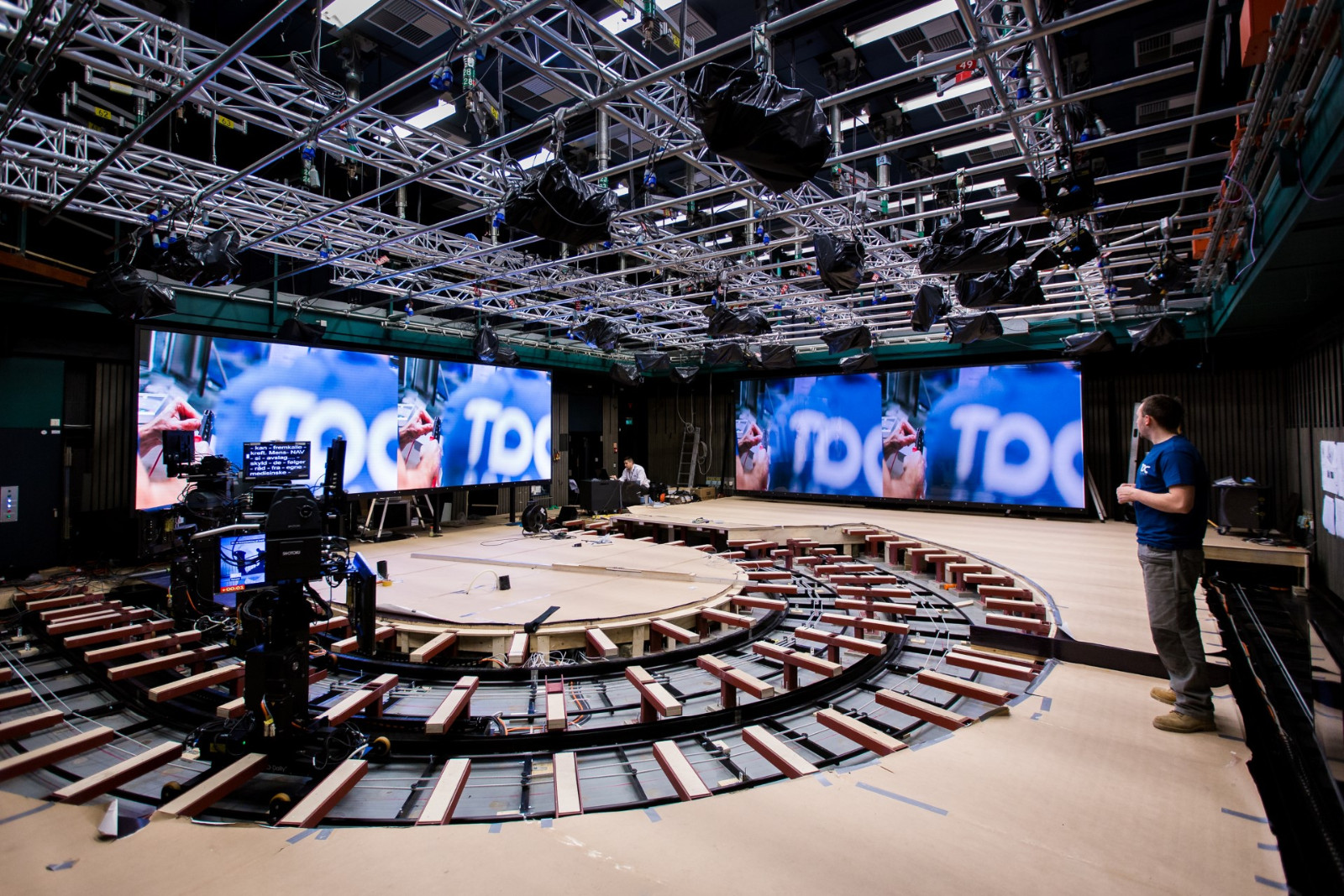

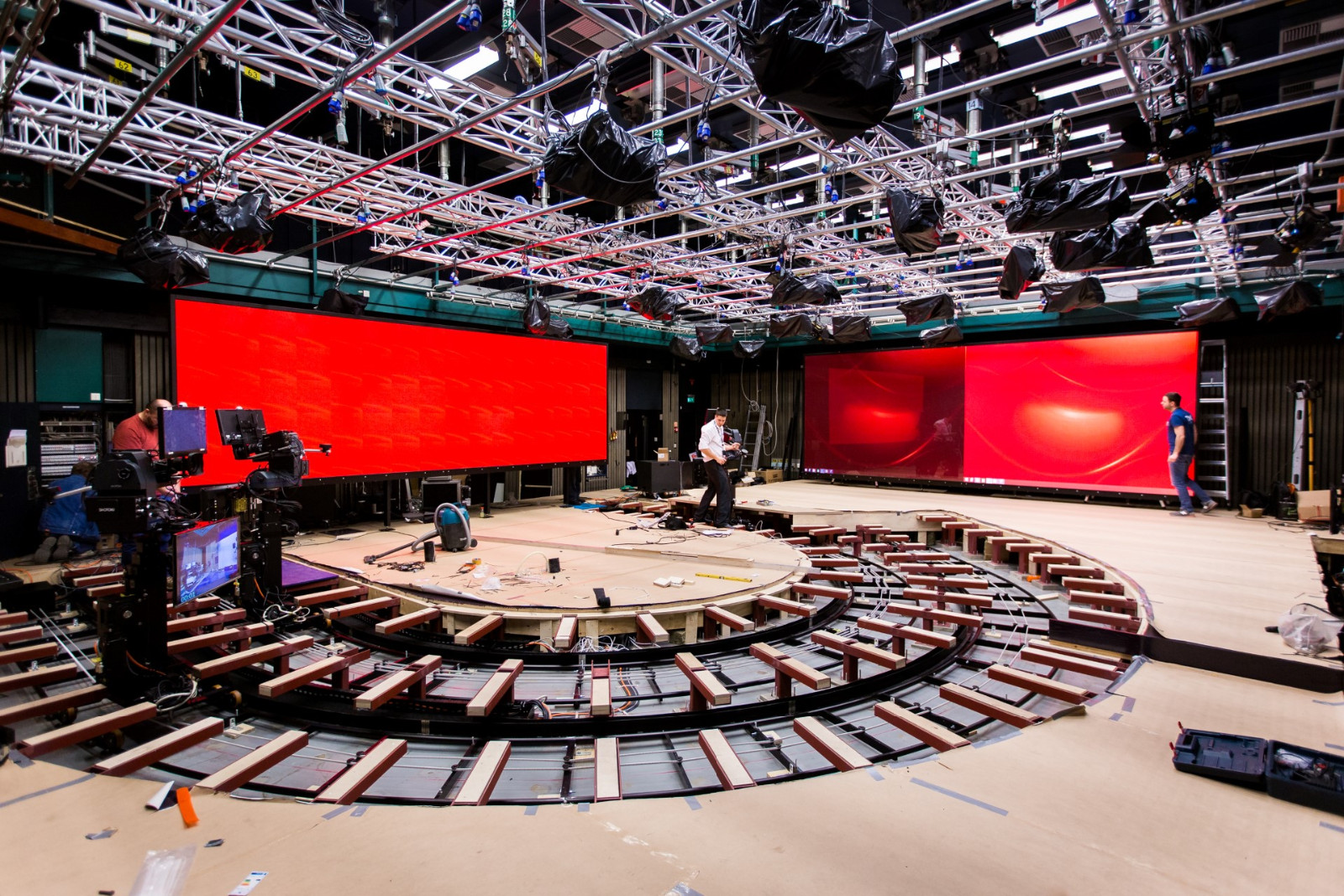

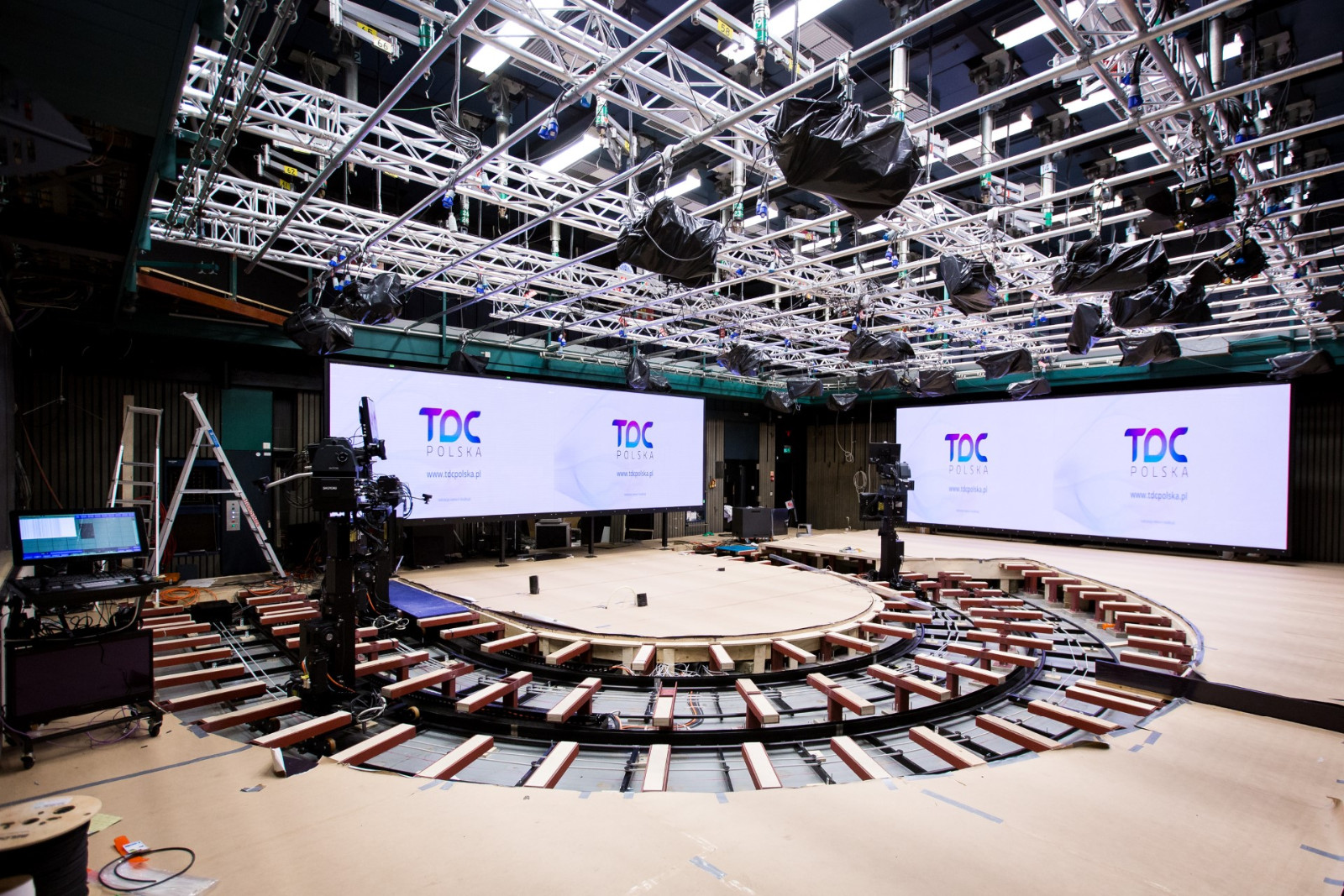

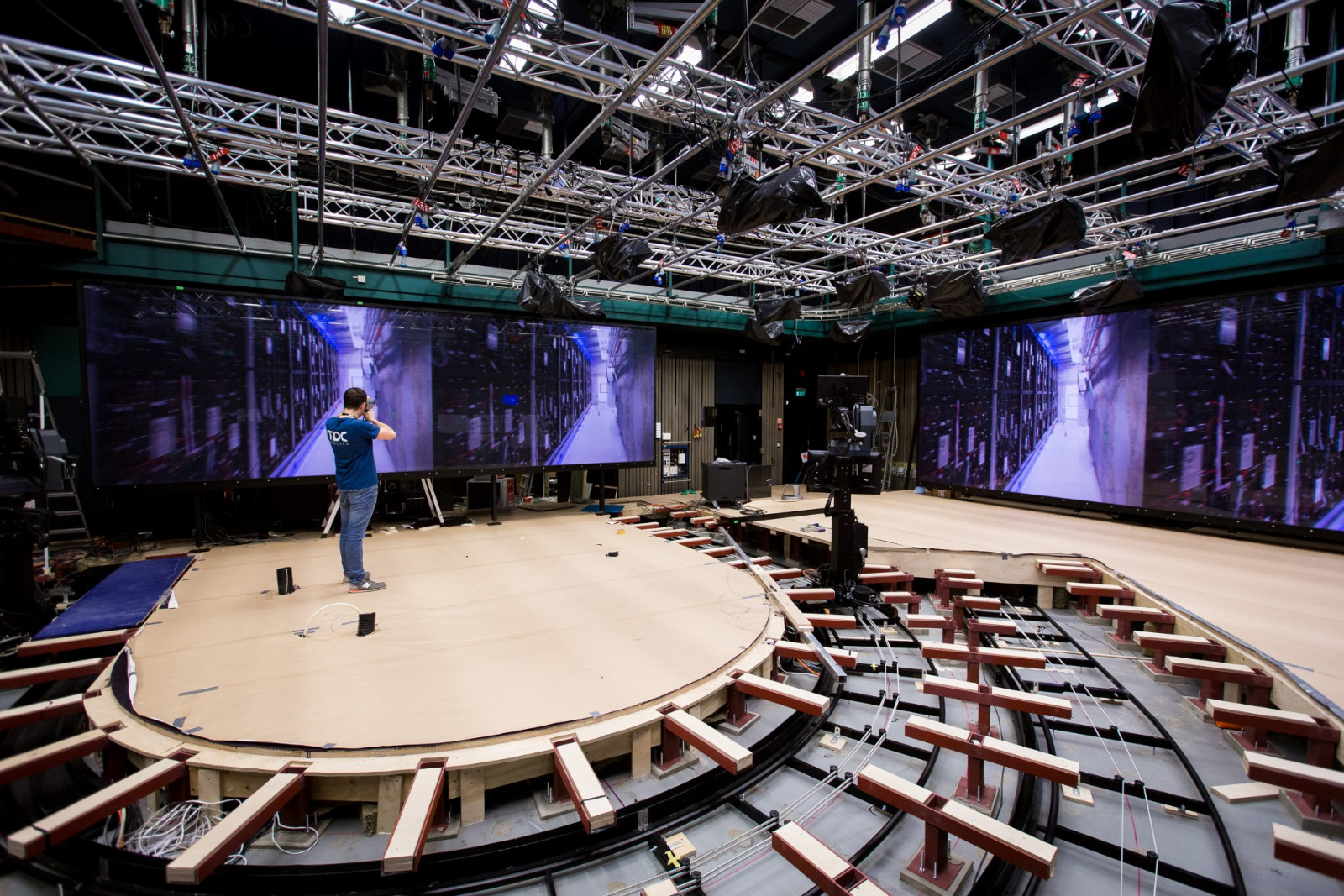

Application: TV studios, traffic/crisis control centres, video conferences, stock exchanges, high resolution advertising banners
Distinguishing feature: Image in HD resolution 2k,4k,8k
| Pixel pitch: | 0.9 mm (0.036in) | 1.0 mm (0.04in) | 1.2 mm (0.048in) | 1.5 mm (0.06in) | 1.85 mm (0.07in) | 2.0 mm (0.08in) | 2.5 mm (0.1in) |
| Pixel Density (pixels/m2) | 1,111,111 | 1,000,000 | 833,333 | 444,444 | 293,452 | 250,000 | 160,000 |
| Pixel Configuration | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Module Dimension | - | 192*96mm 7.56*3.78in |
- | 96*96mm 3.78*3.78in |
192*96mm 7.56*3.78in |
192*96mm 7.56*3.78in |
200*80mm 7.87*3.15in |
| Module Resolution (pixels) | - | 192*96 | - | 64*64 | 104*52 | 96*48 | 80*32 |

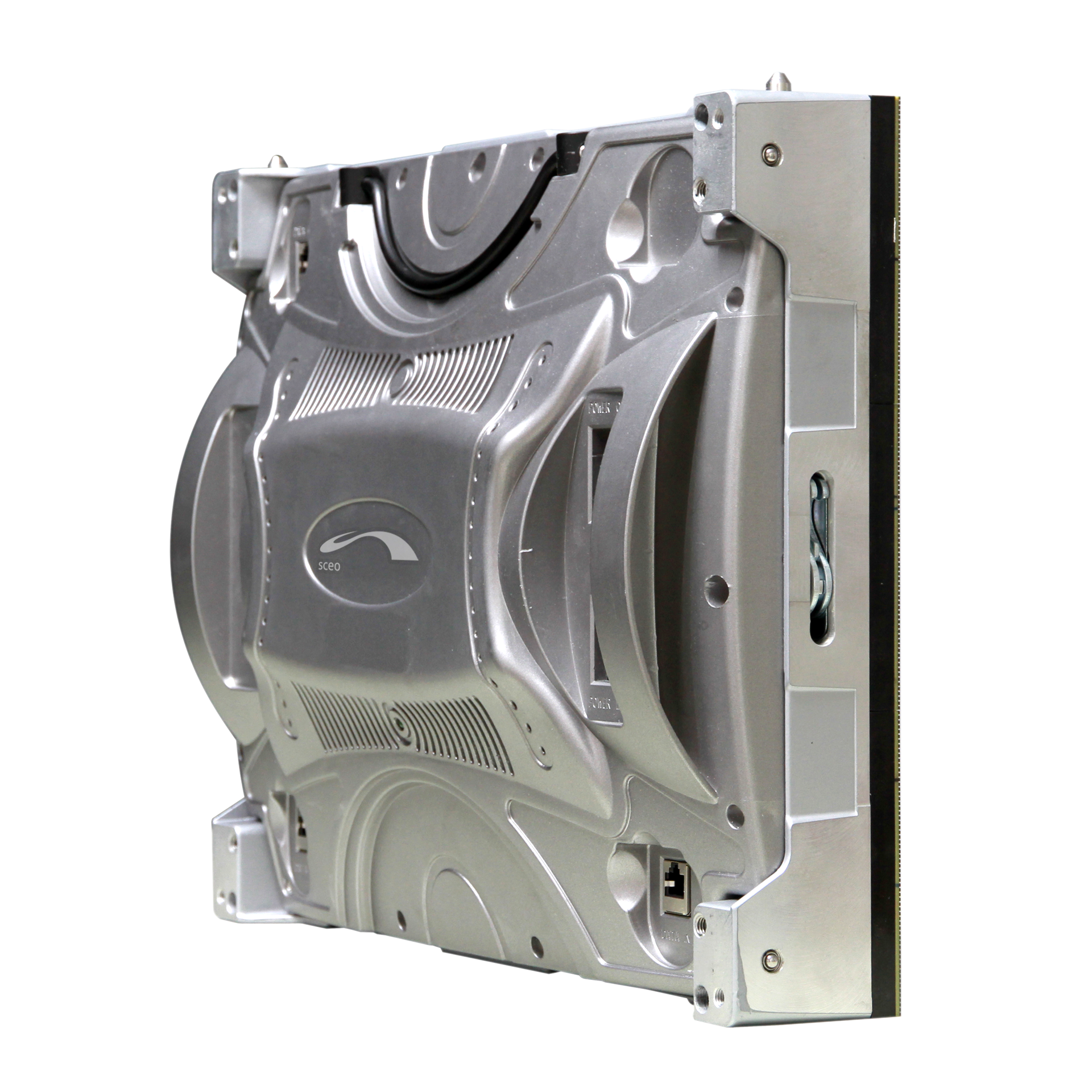

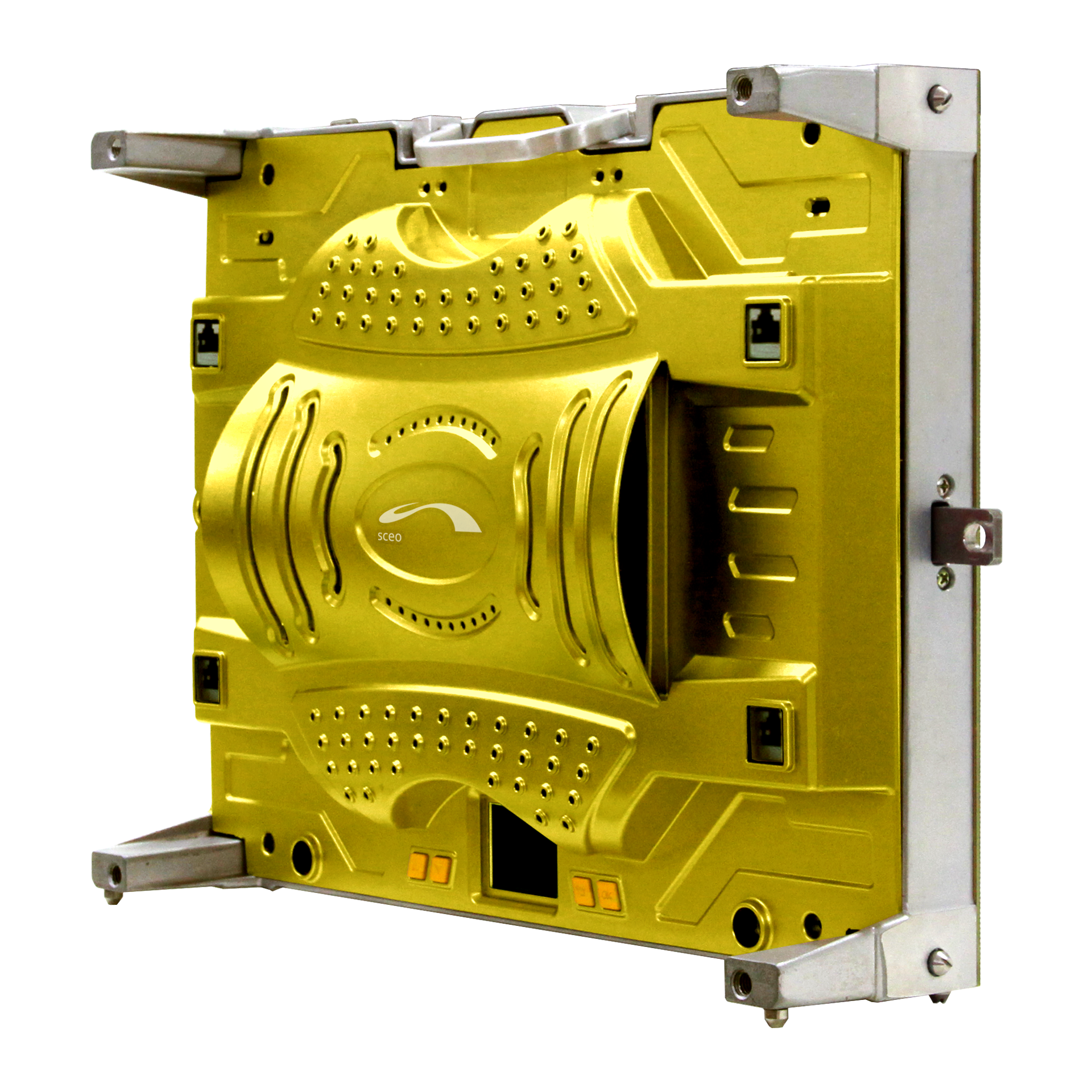

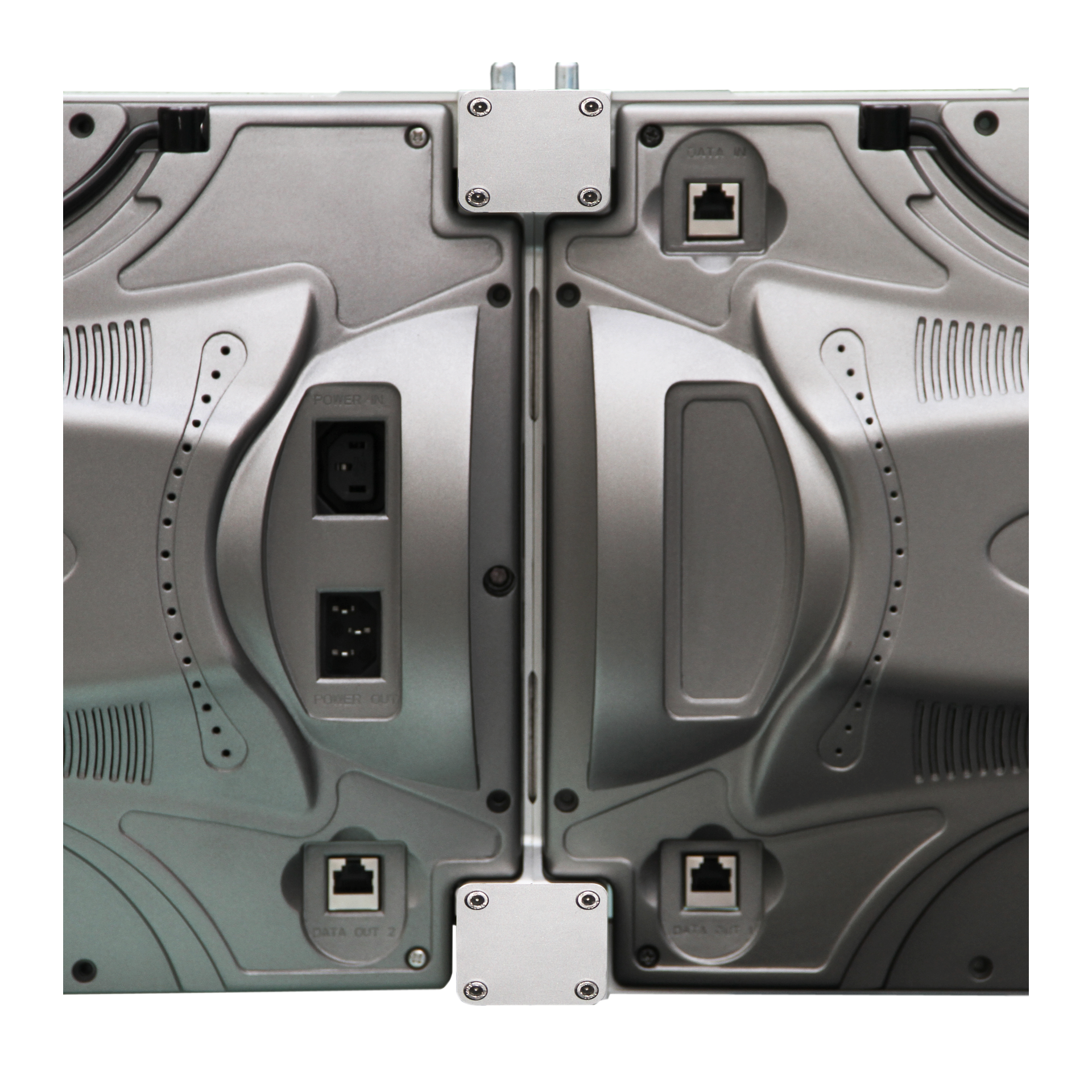

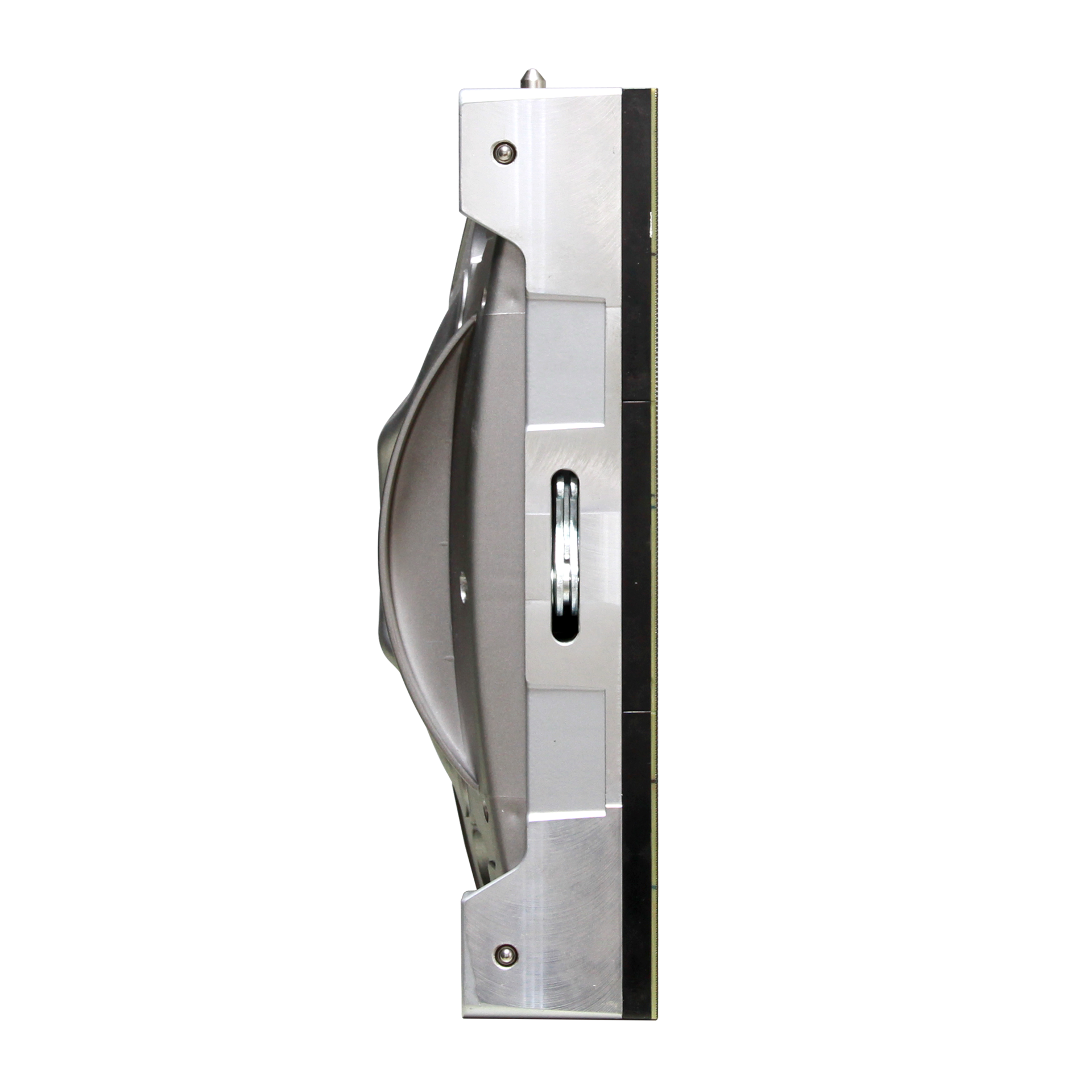

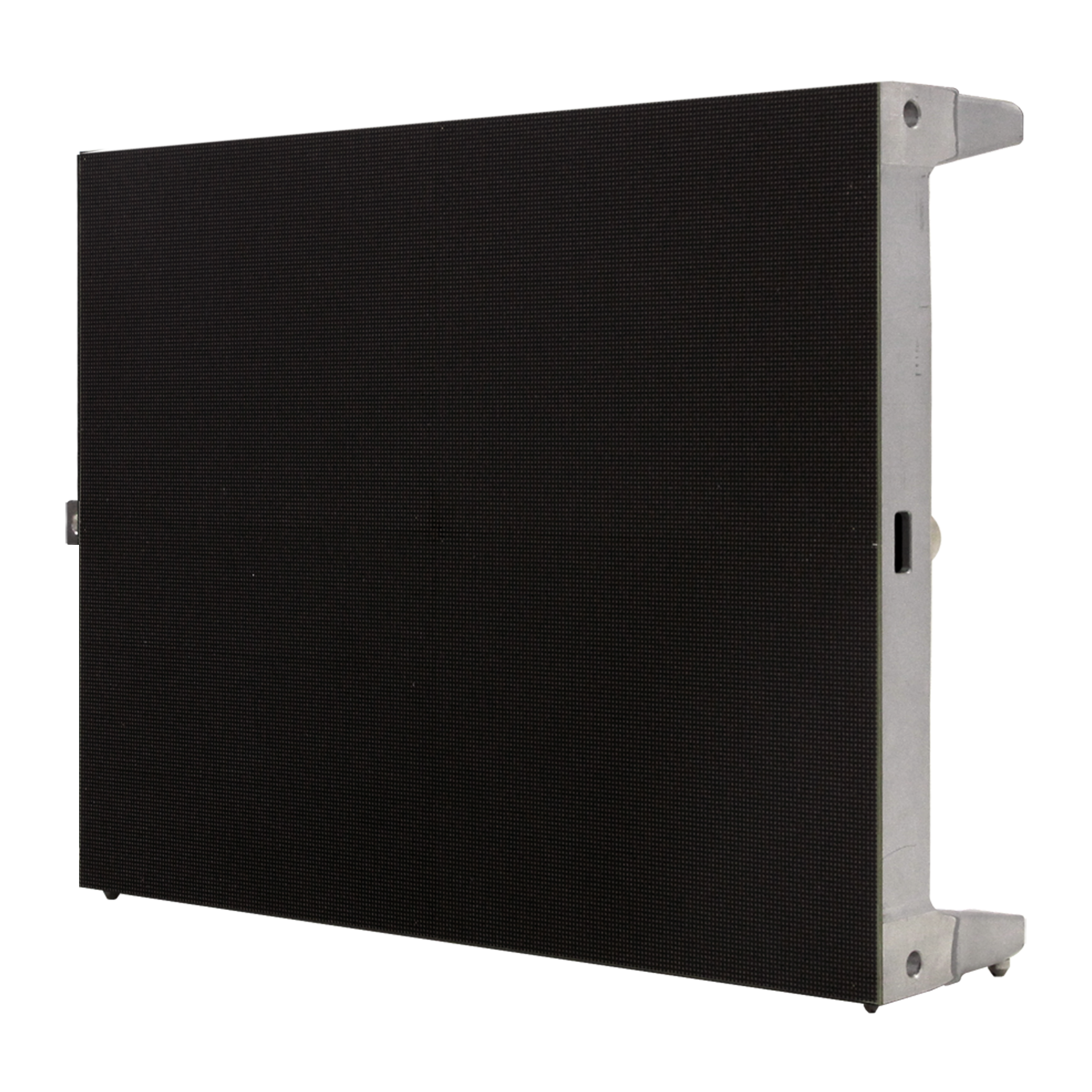

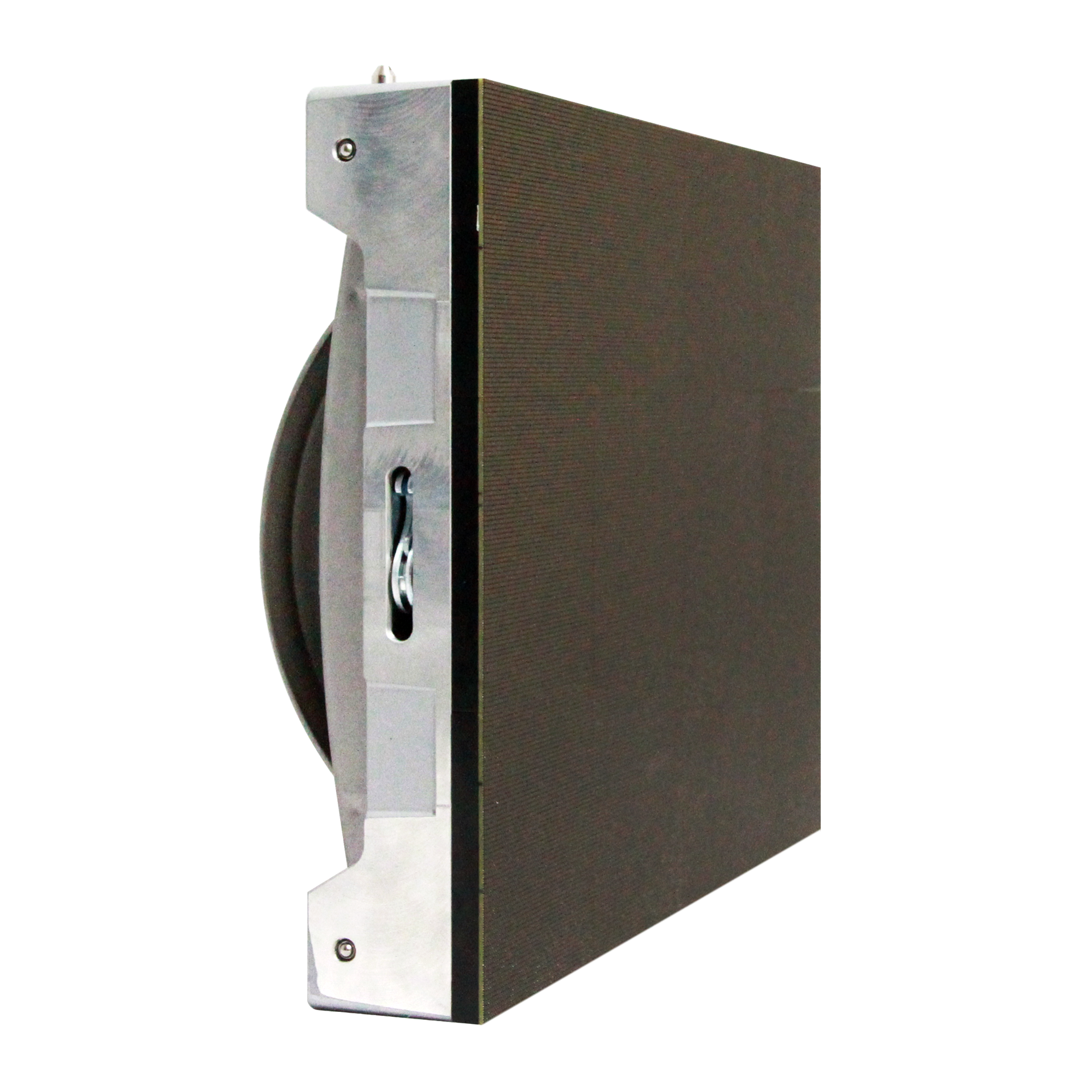

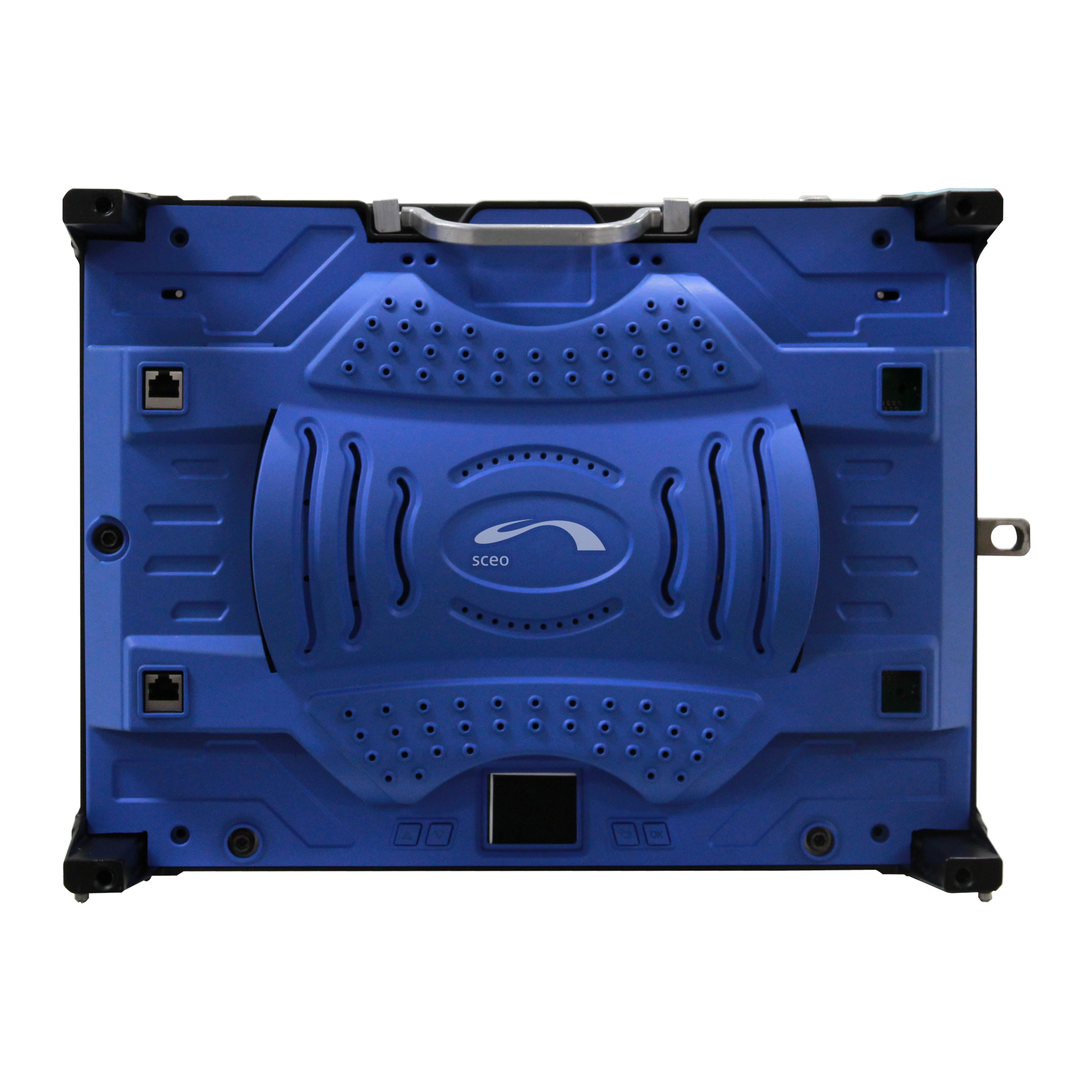

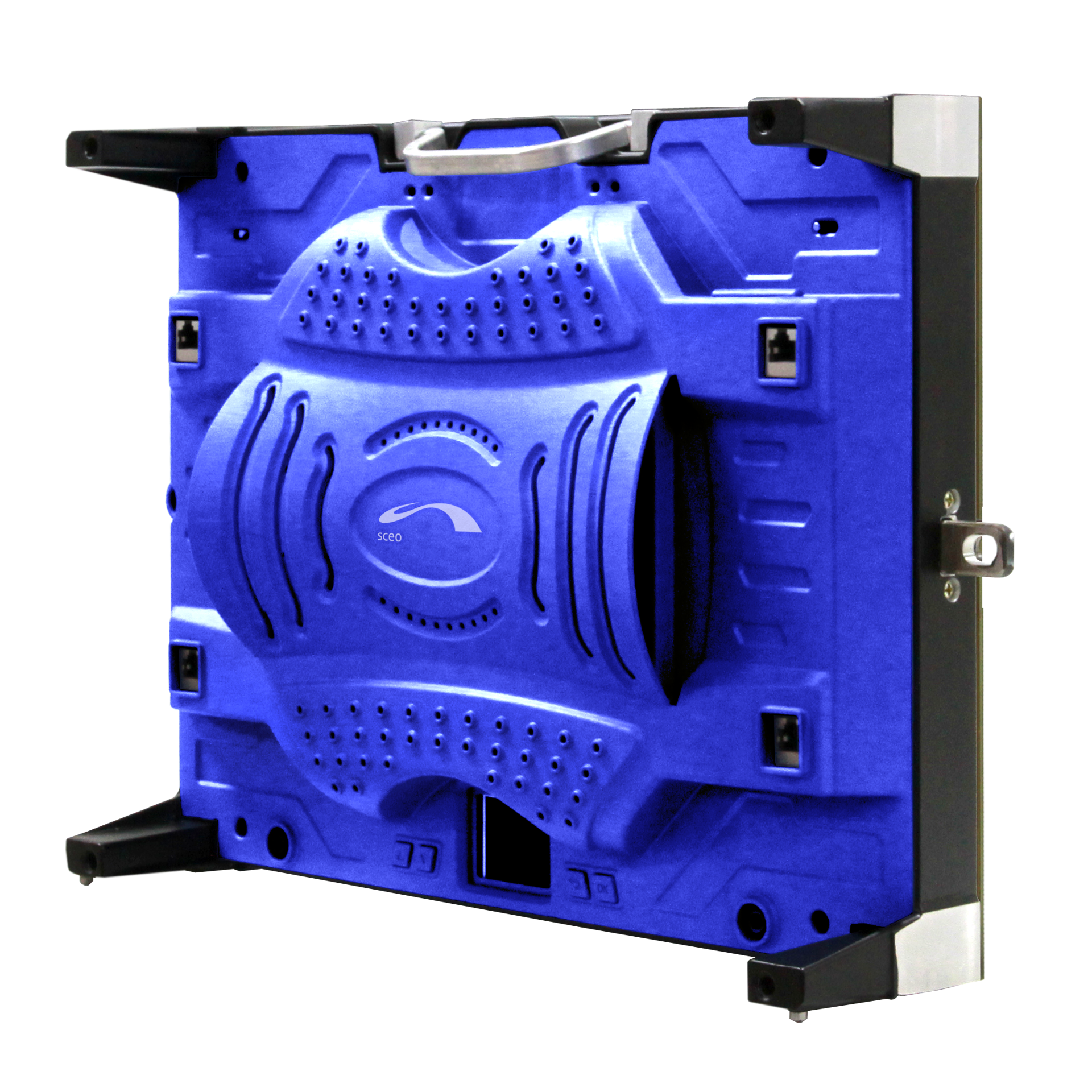

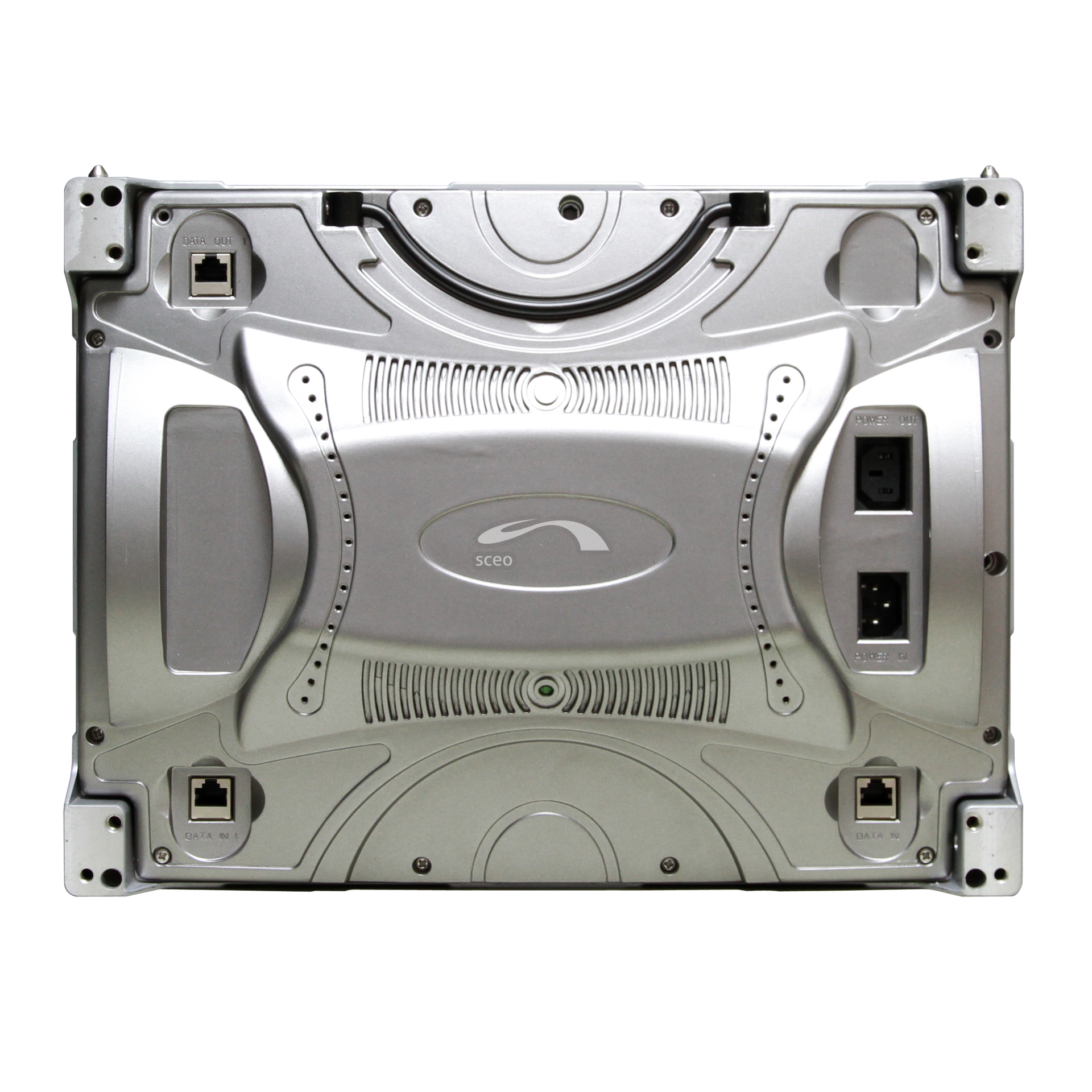

| Cabinet Dimensions (W*H*D) | 609.92x 343.08 mm | 384*288mm 15.12*11.34in |
609.92x 343.08 mm | 384*288mm 15.12*11.34in |
384*288mm 15.12*11.34in |
384*288mm 15.12*11.34in |
400*400mm 15.7*15.7in |
| Cabinet Resolution (pixels) | 640*360 | 384*288 | 480*270 | 256*192 | 208*156 | 192*144 | 160*160 |
| Weight (kg/cabinet) | 7.5kg (16.5lb) | 4.3kg (9.48lb) | 7.5kg (16.5lb) | 4.3kg (9.48lb) | 4.3kg (9.48lb) | 4.3kg (9.48lb) | 5.35kg (11.78lb) |
| Material | Die-casting Aluminium | Aluminium | Die-casting Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Brightness (nits) | adjustable | adjustable | adjustable | adjustable | adjustable | adjustable | 800 NITS |
| Brightness sensor (optional) | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Viewing angle | >=178o/178o | >=178o/178o | >=178o/178o | >=178o/178o | >=178o/178o | >=178o/178o | >=178o/178o |
| Best viewing distance (m) | 1~4 | 1~4 | 1~4 | 2~5 | 2~7 | 2~7 | 3~9 |
| Display color | 281 trillions | 281 trillions | 281 trillions | 281 trillions | 281 trillions | 281 trillions | 281 trillions |
| Gray Scale levels (bits) | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Max Power consumption (W/m2 ) | 1019 | 900 | 1027 | 900 | 900 | 900 | 900 |

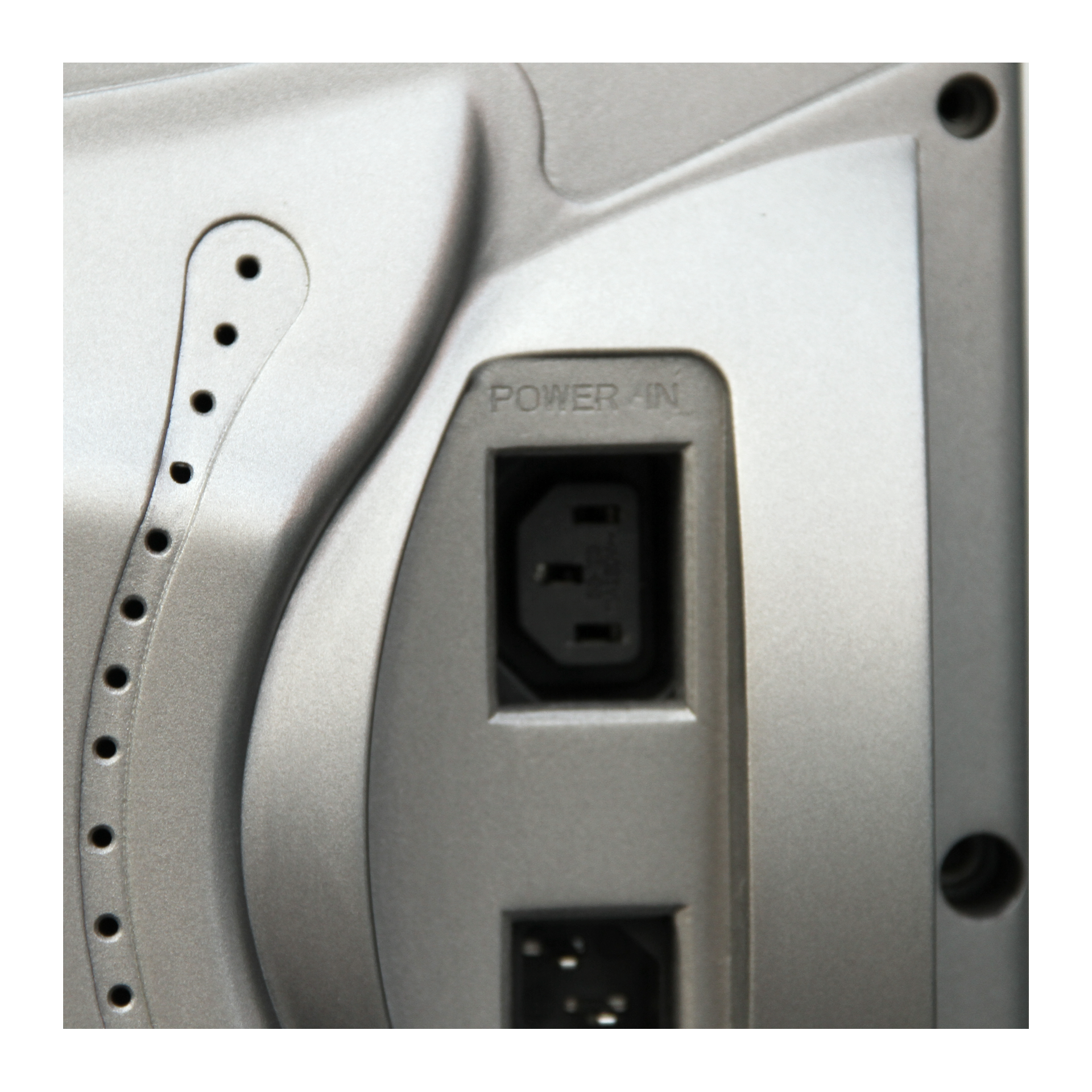

| Input voltage | 100~ 240V, 50/60Hz | ||||||
| Refresh rate (Hz) | >2000 | >2000 | >2000 | >2000 | >2000 | >2000 | >2000 |
| Color Temperature | 1000~11000 | 1000~11000 | 1000~11000 | 1000~11000 | 1000~11000 | 1000~11000 | 1000~11000 |
| Input signal | VGA, DVI, HDMI etc. | VGA, DVI, HDMI etc. | VGA, DVI, HDMI etc. | VGA, DVI, HDMI etc. | VGA, DVI, HDMI etc. | VGA, DVI, HDMI etc. | VGA, DVI, HDMI etc. |
| Controlling system | Colorlight | Colorlight | Colorlight | Colorlight | Colorlight | Colorlight | Colorlight |
| Humidity range | 10%~60% | 10%~60% | 10%~60% | 10%~60% | 10%~60% | 10%~60% | 10%~60% |
| Temperature Range | -10 ~45 | -10 ~45 | -10 ~45 | -10 ~45 | -10 ~45 | -10 ~45 | -10 ~45 |
| Protection rating | Front IP20; Rear IP41 | Front IP20; Rear IP41 | Front IP20; Rear IP41 | Front IP20; Rear IP41 | Front IP20; Rear IP41 | Front IP20; Rear IP41 | Front IP20; Rear IP41 |
| LED lifetime (hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
Certifications: CE, ROHS, ISO9001, ISO 14001
Parameters can be modified according to the individual order.
