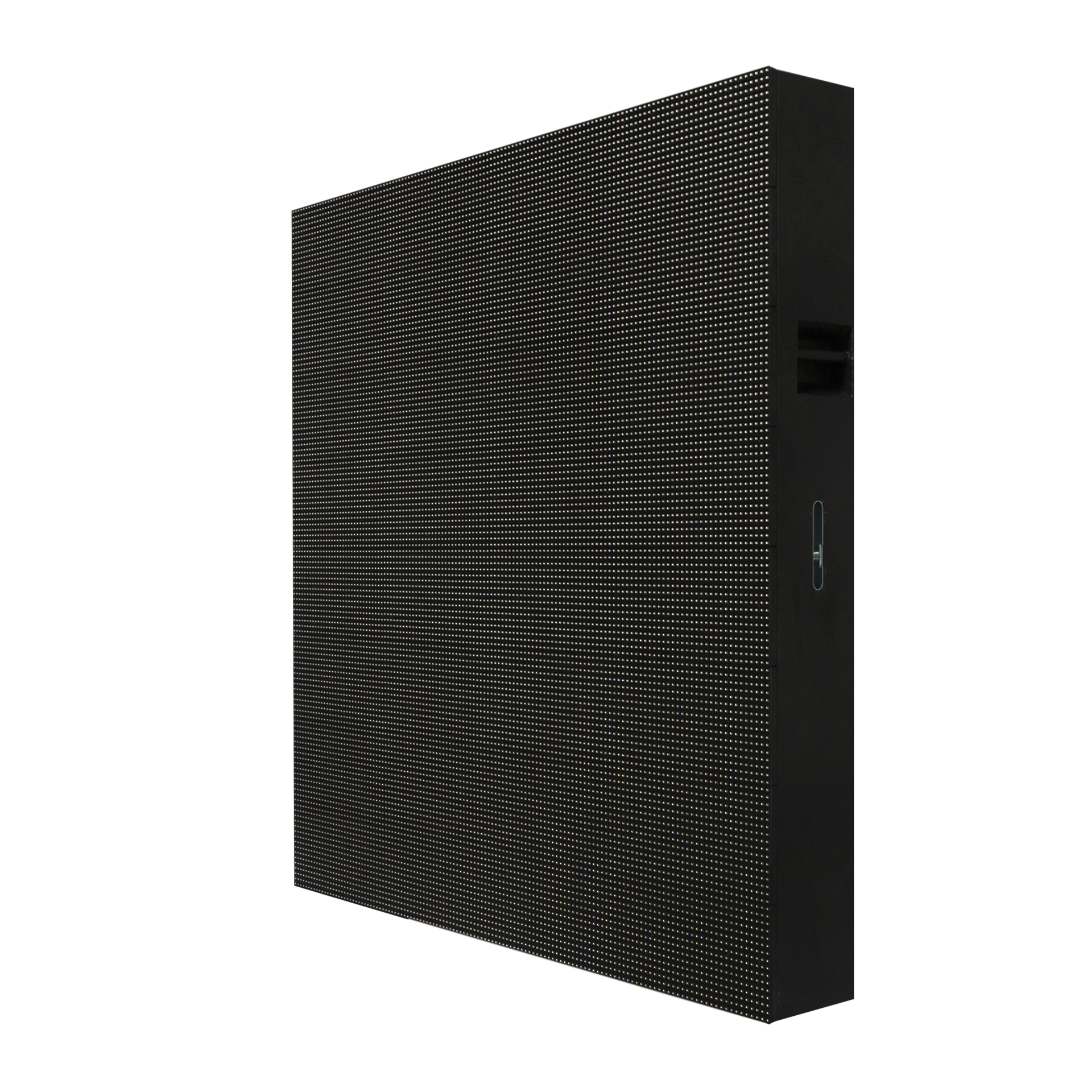

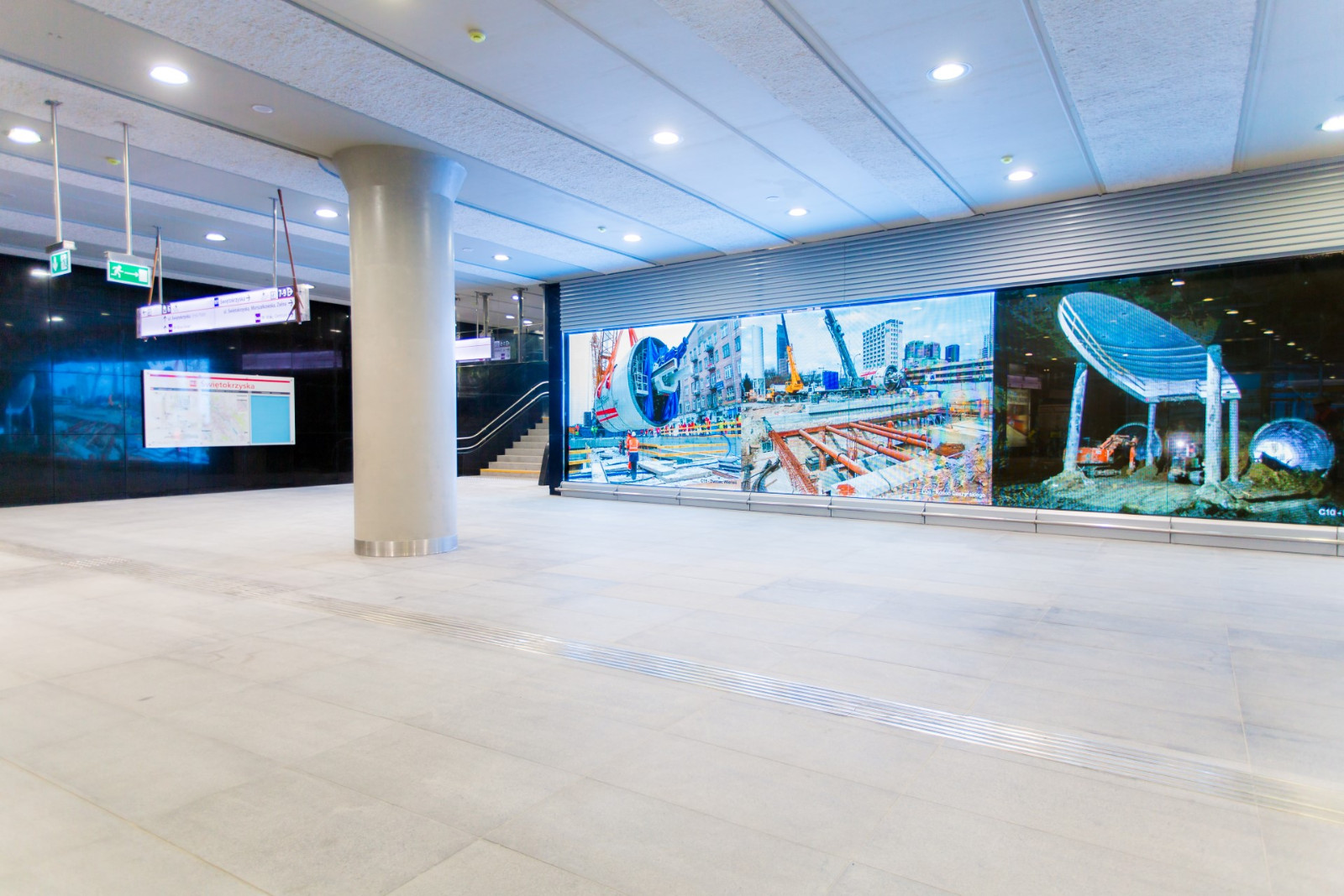

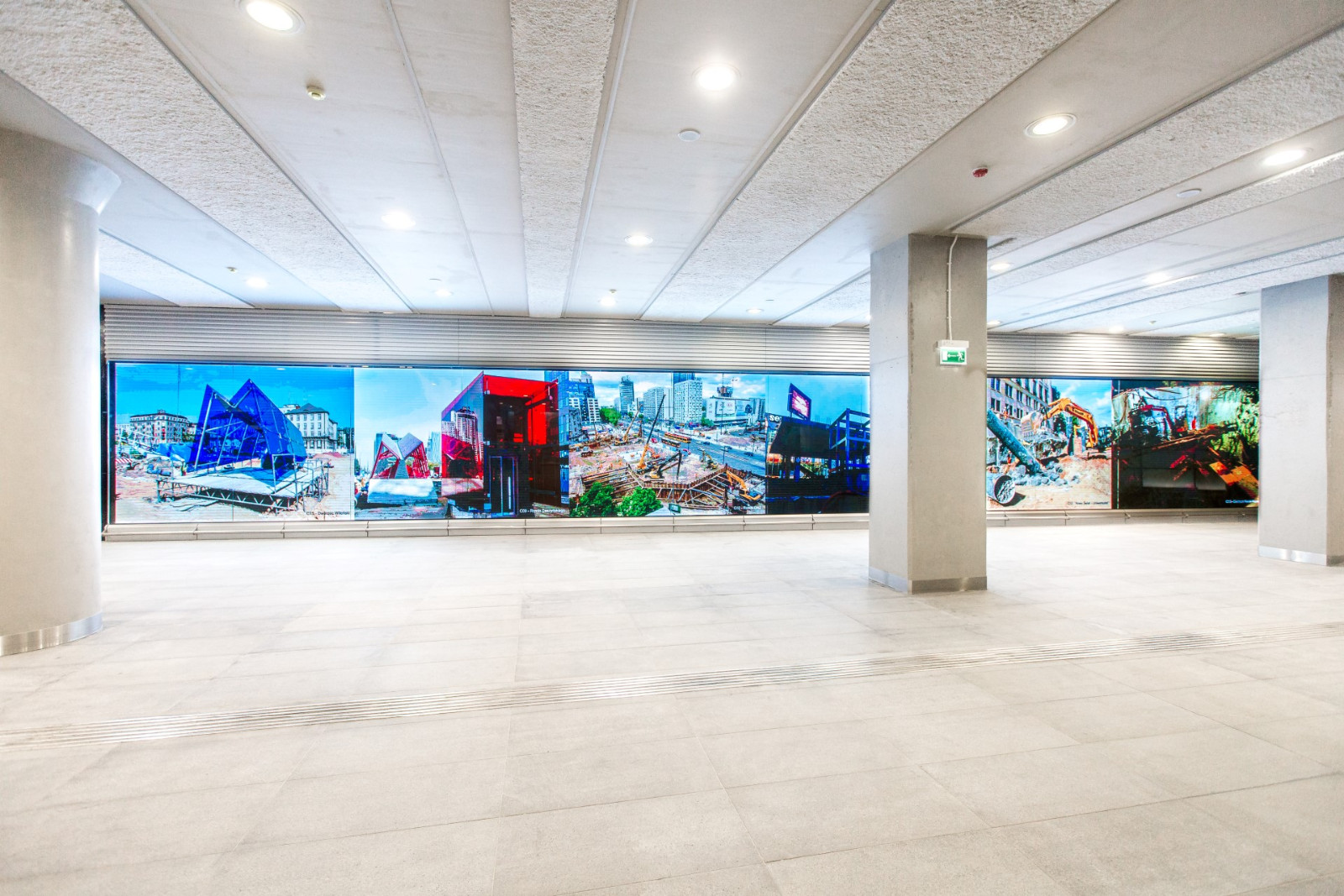

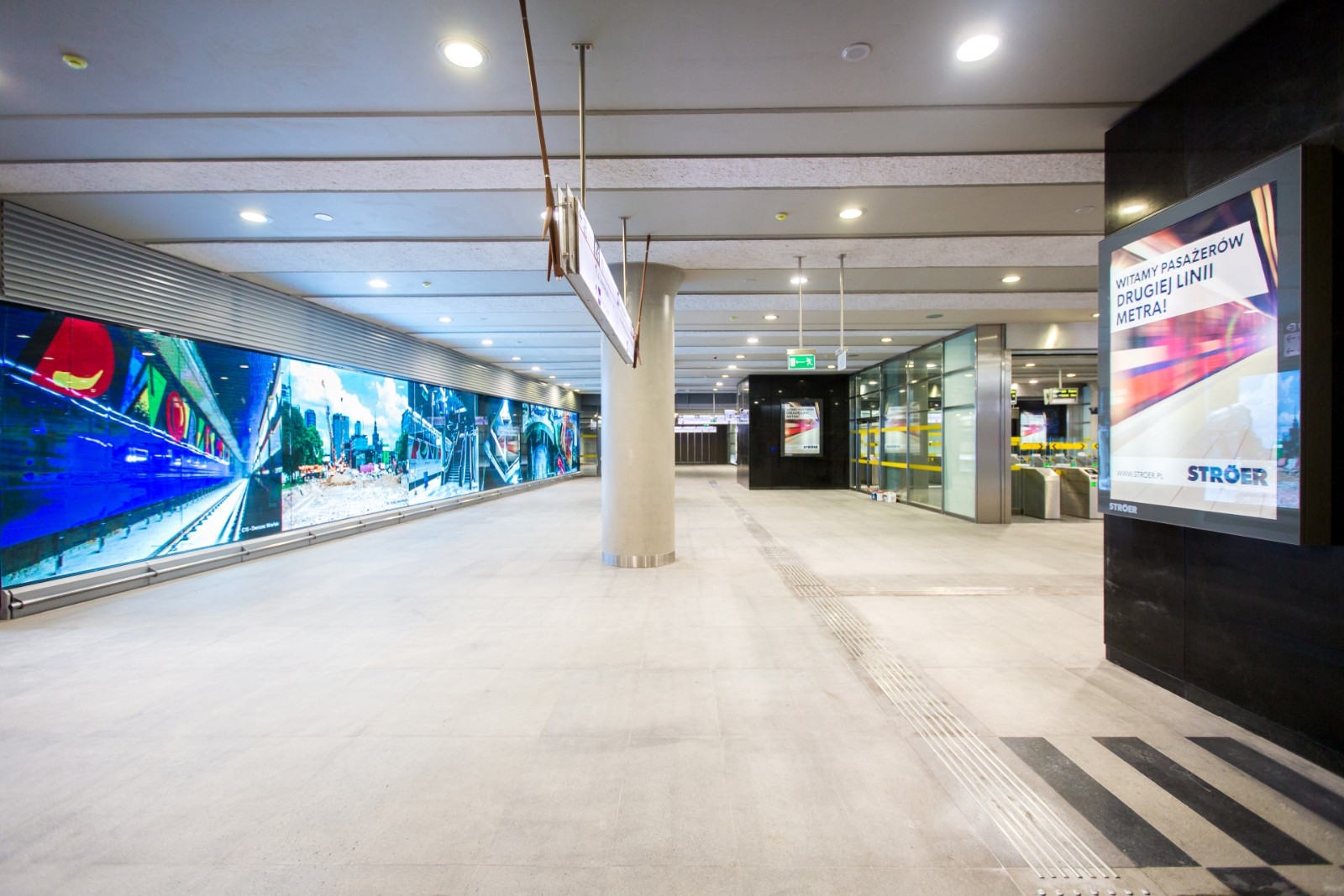

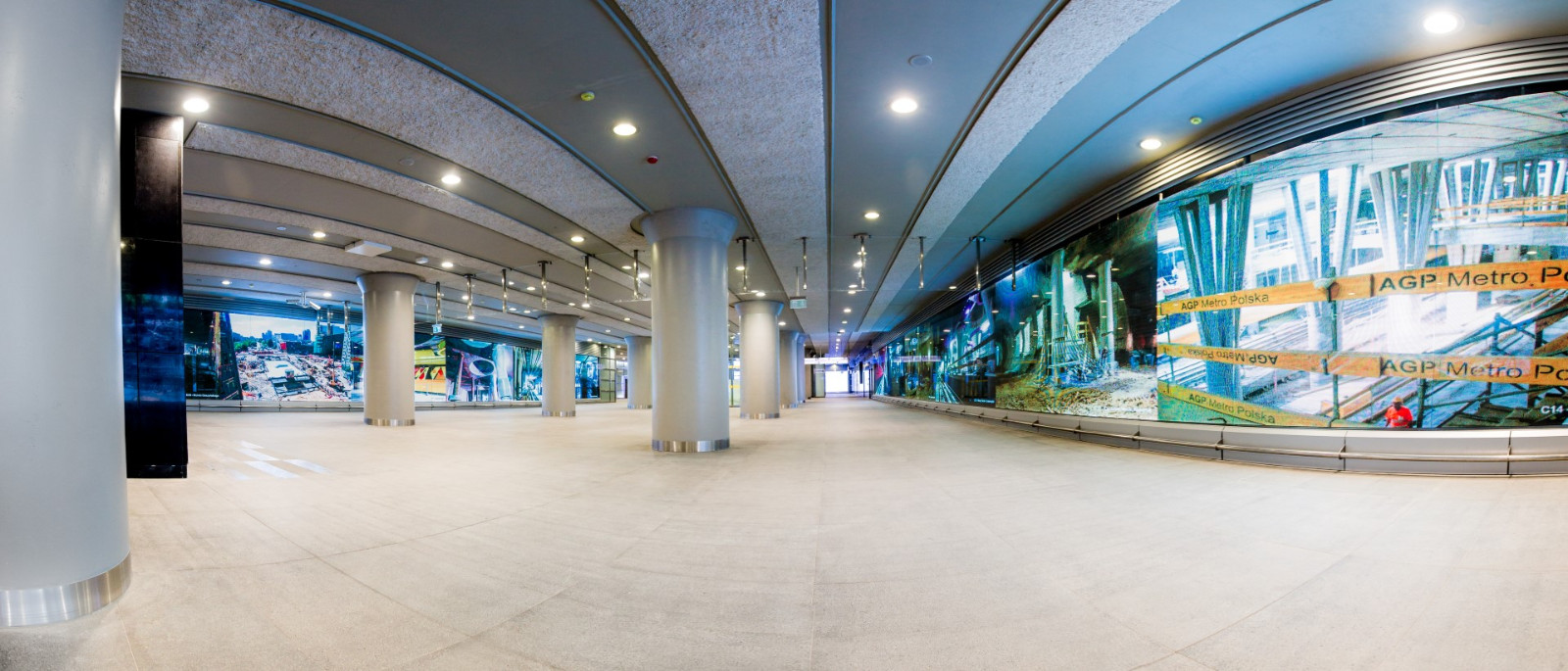

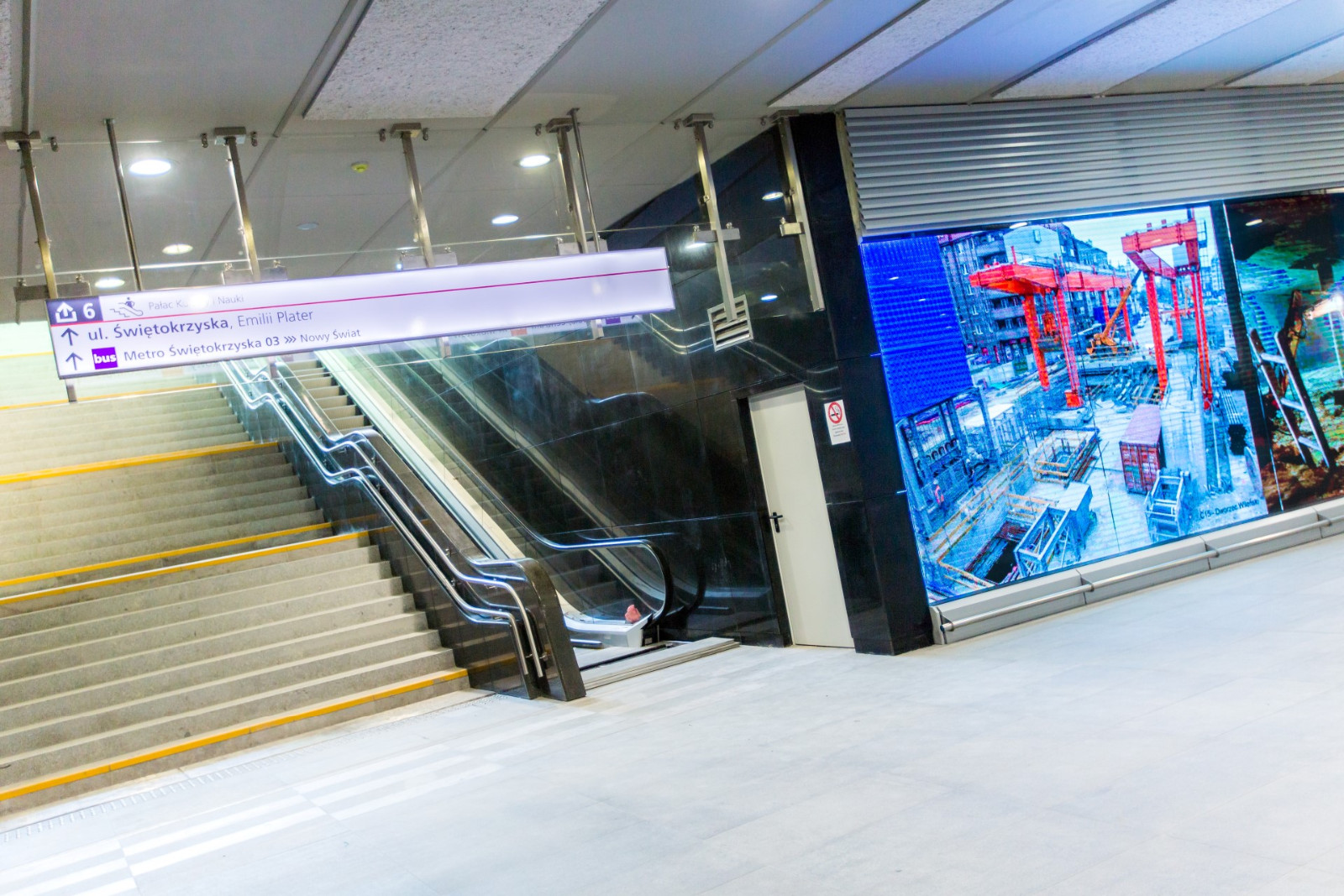

Type: LED screens dedicated for indoor fixed installation, i.e information boards, advertising banners, scoreboards
Application: Concert scenes, exhibition fairs, stores, shopping centres, sports & entertainment halls
Distinguishing feature: Versatility
| Pixel pitch: | 4 mm(0.16in) | 5 mm(0.20in) | 6 mm(0.24in) | 6.25 mm(0.25in) | 7.62 mm(0.3in) | 8 mm(0.31in) | 10 mm(0.39in) | 12 mm(0.47in) |
| Pixel Density (pixels/m2) | 62,500 | 40,000 | 27,777 | 25,600 | 17,222 | 15,625 | 10,000 | 6,944 |
| Pixel Configuration | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |

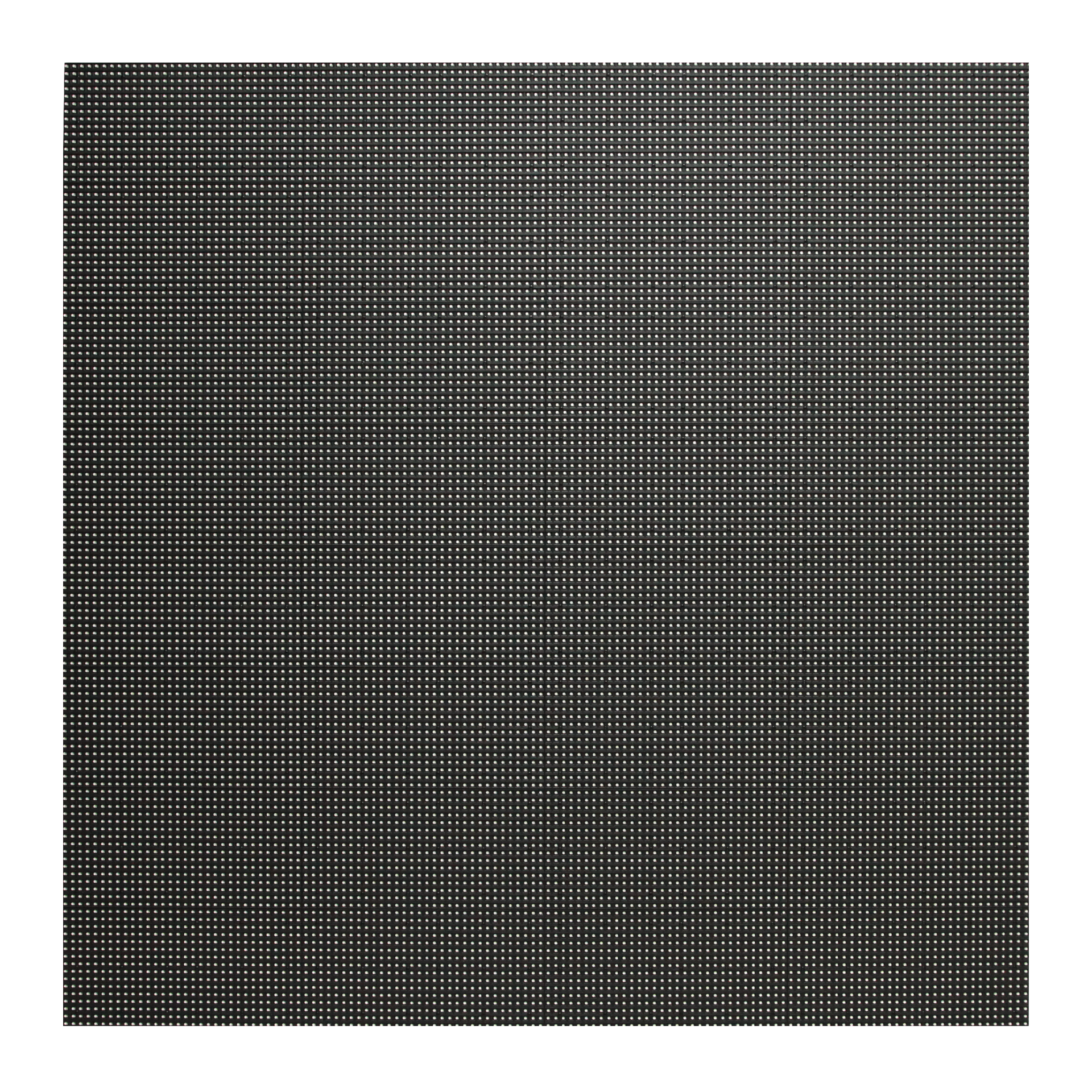

| Module Dimension | 128*128mm 5.04*5.04in |
160*160mm 6.30*6.30in |
192*96mm 7.56*3.78in |
200*100mm 7.87*3.94in |
244*122mm 9.61*4.80in |
256*128mm 10.08*5.04in |
160*160mm 6.30*6.30in |
192*192mm 7.56*7.56in |
| Module Resolution (pixels) | 32*32 | 32*32 | 32*16 | 32*16 | 32*16 | 32*16 | 16*16 | 16*16 |

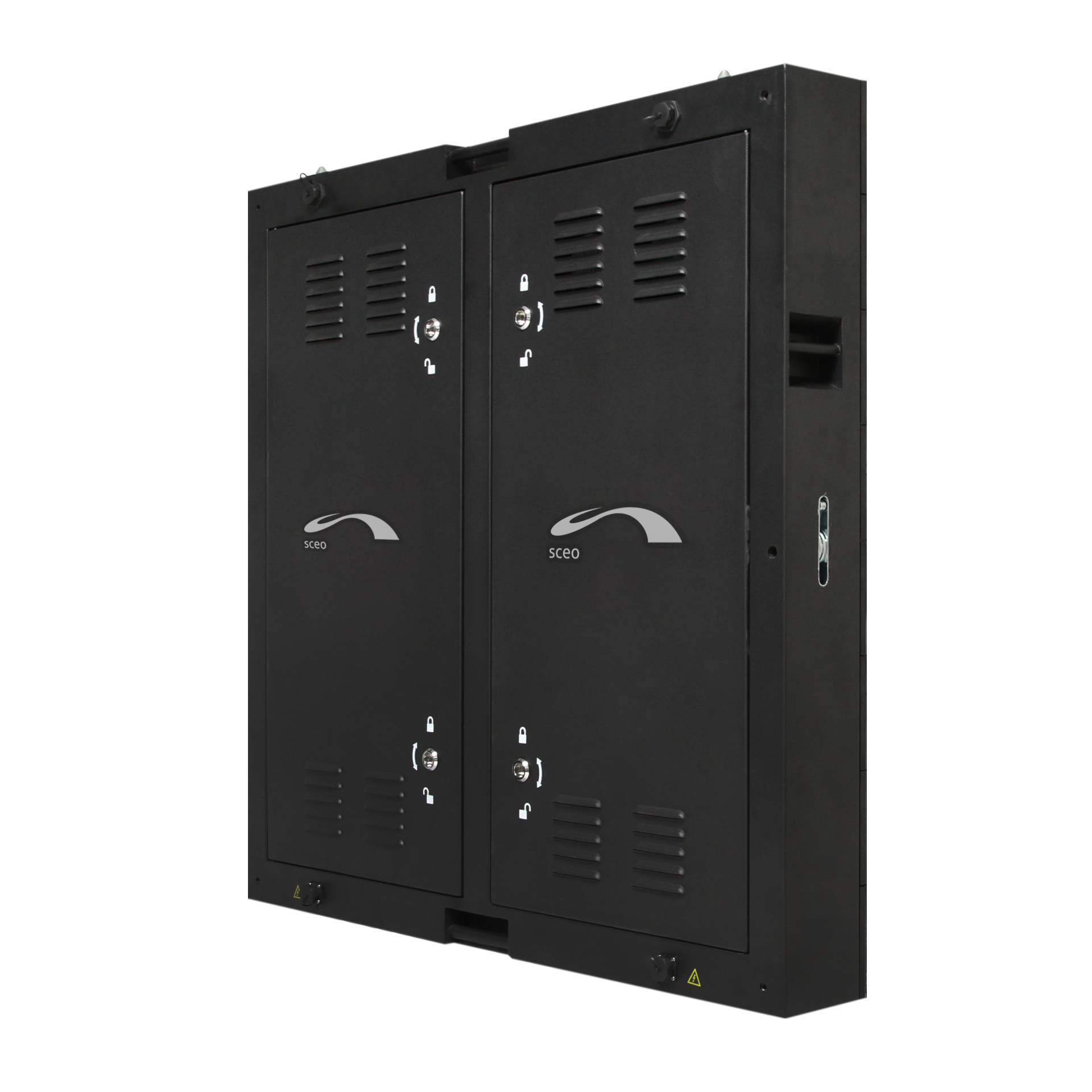

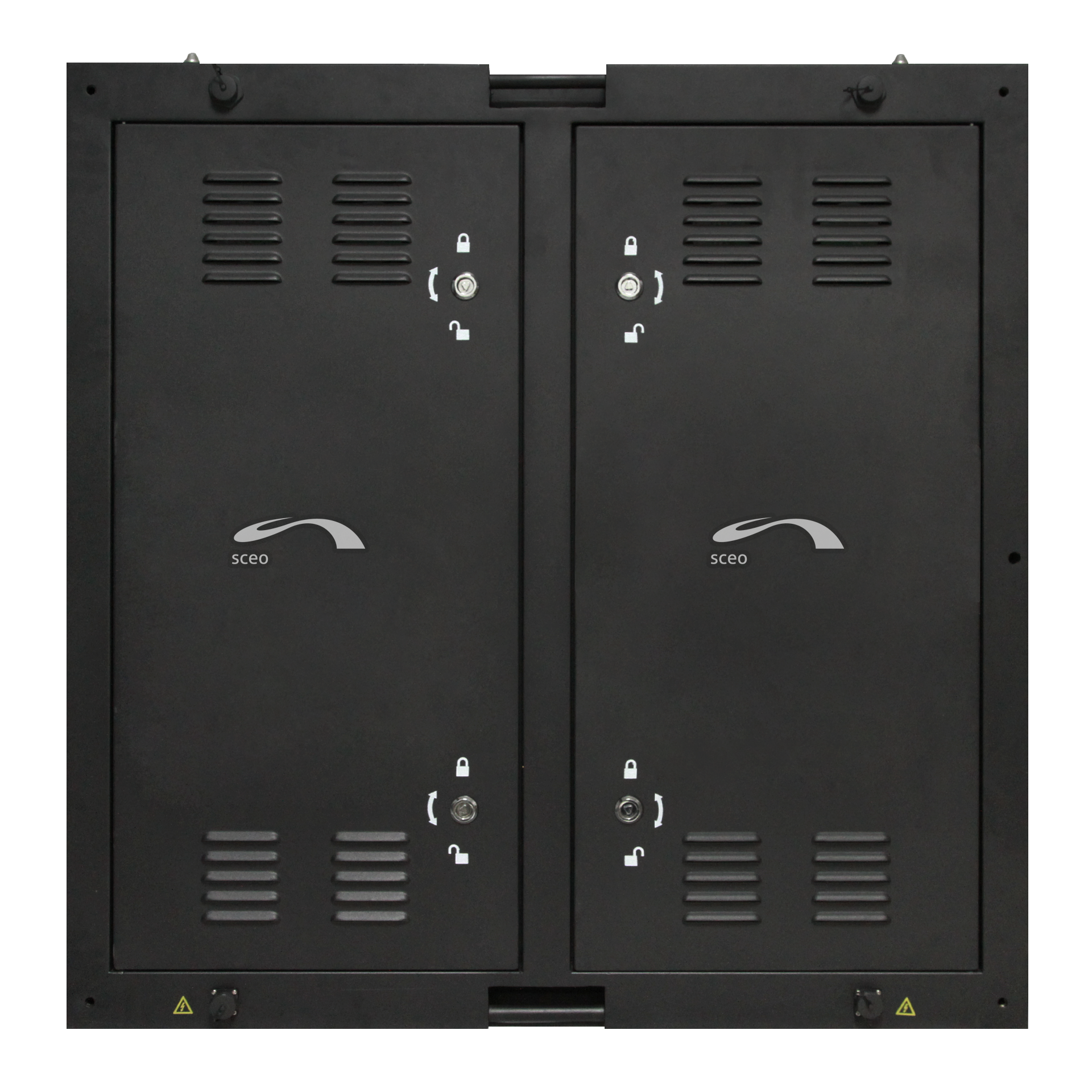

| Cabinet Dimensions | 512*512mm 20.16*20.16in |
640*640mm 25.20*25.20in |
768*576mm 30.24*22.68in |
800*600mm 31.50*23.62in |
976*732mm 38.42*28.82in |
1,024*768mm 40.31*30.24in |
800*640mm 31.50*25.20in |
768*768mm 30.24*30.24in |
| Cabinet Resolution (pixels) | 128*128 | 128*128 | 128*96 | 128*96 | 128*96 | 128*96 | 80*64 | 64*64 |
| Brightness (nits) | 1,200 | 1,800 | 2,200 | 1,800 | 1,800 | 1,800 | 1,800 | 1,600 |
| Max Power consumption (W/m2) | 600 | 650 | 840 | 900 | 750 | 850 | 720 | 520 |
| Best viewing distance (m) | 5~13 | 6~16 | 7~20 | 9~23 | 10~27 | 10~27 | 13~33 | 15~40 |
| Viewing angle (vertical) | 140o | 140o | 140o | 140o | 140o | 140o | 140o | 140o |
| Viewing angle (horizontal) | 140o | 140o | 140o | 140o | 140o | 140o | 140o | 140o |
| Gray Scale levels (bits) | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Refresh rate (Hz) | >300 | >300 | >600 | >600 | >600 | >600 | >600 | >600 |
| Protection rating | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 |
| LED lifetime (hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Input voltage | 90~ 260VAC, 50/60Hz | |||||||
| Humidity range | 10%~99% | 10%~99% | 10%~99% | 10%~99% | 10%~99% | 10%~99% | 10%~99% | 10%~99% |
| Temperature Range | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 |
Parameters can be modified according to the individual order.
