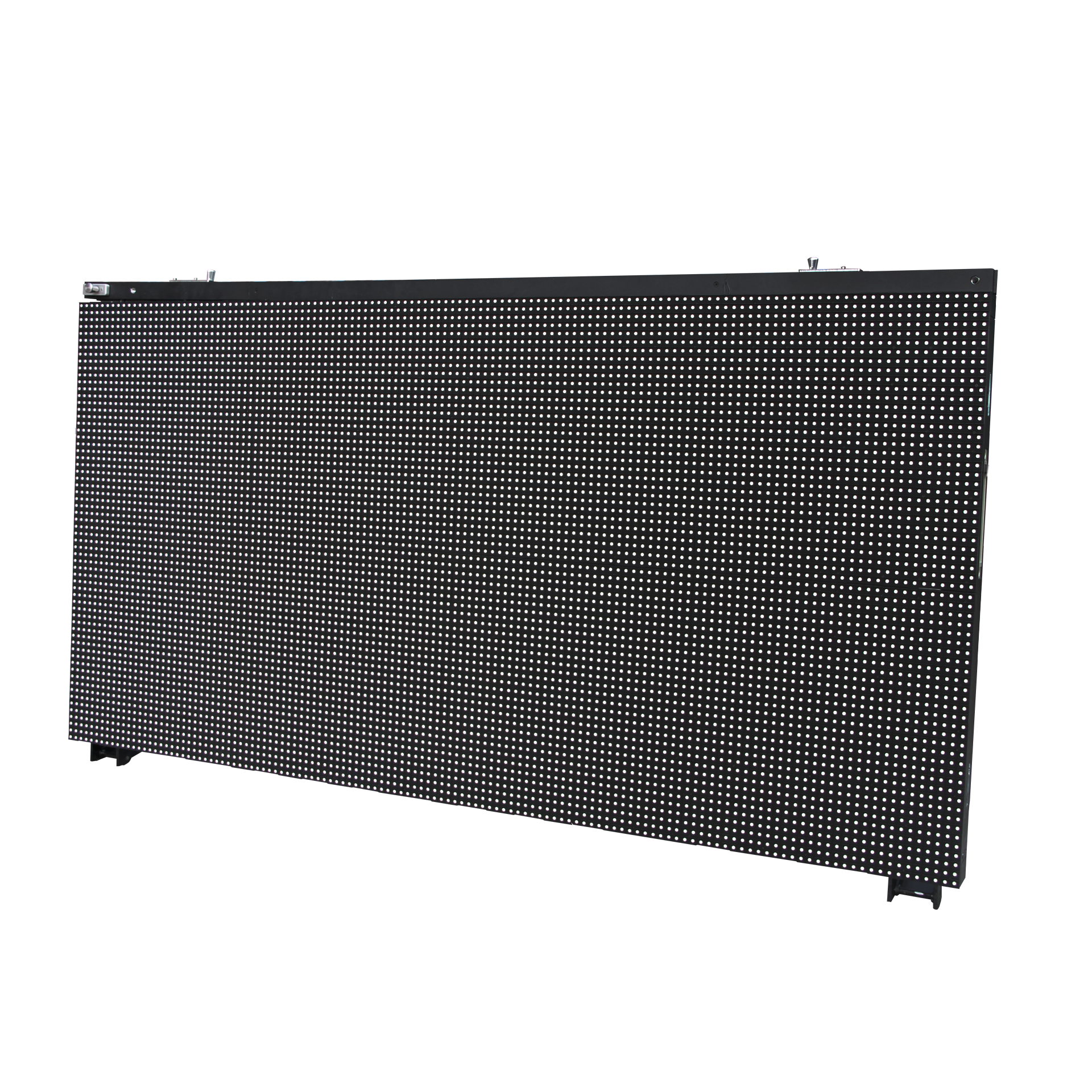

Purpose: LED screen dedicated for indoor and outdoor installation with light weight, ultrathin cabinet and of neat design
Application: Stadiums, ice rinks, pools, tennis courts
Distinguishing feature: Ultrathin and light weight construction
Indoor
Outdoor
No flicker on Camera
16-bit image processing, 281 trillions of colors
High-end components
On-site maintenance in Europe
Management system compliant with ISO 9001 and ISO 14001
Electromagnetic compatibility (EMC)
High brightness
Portable construction
Light weight
Heat dissipation
High refresh
Fan-less
Wide viewing angle
Low power consumption

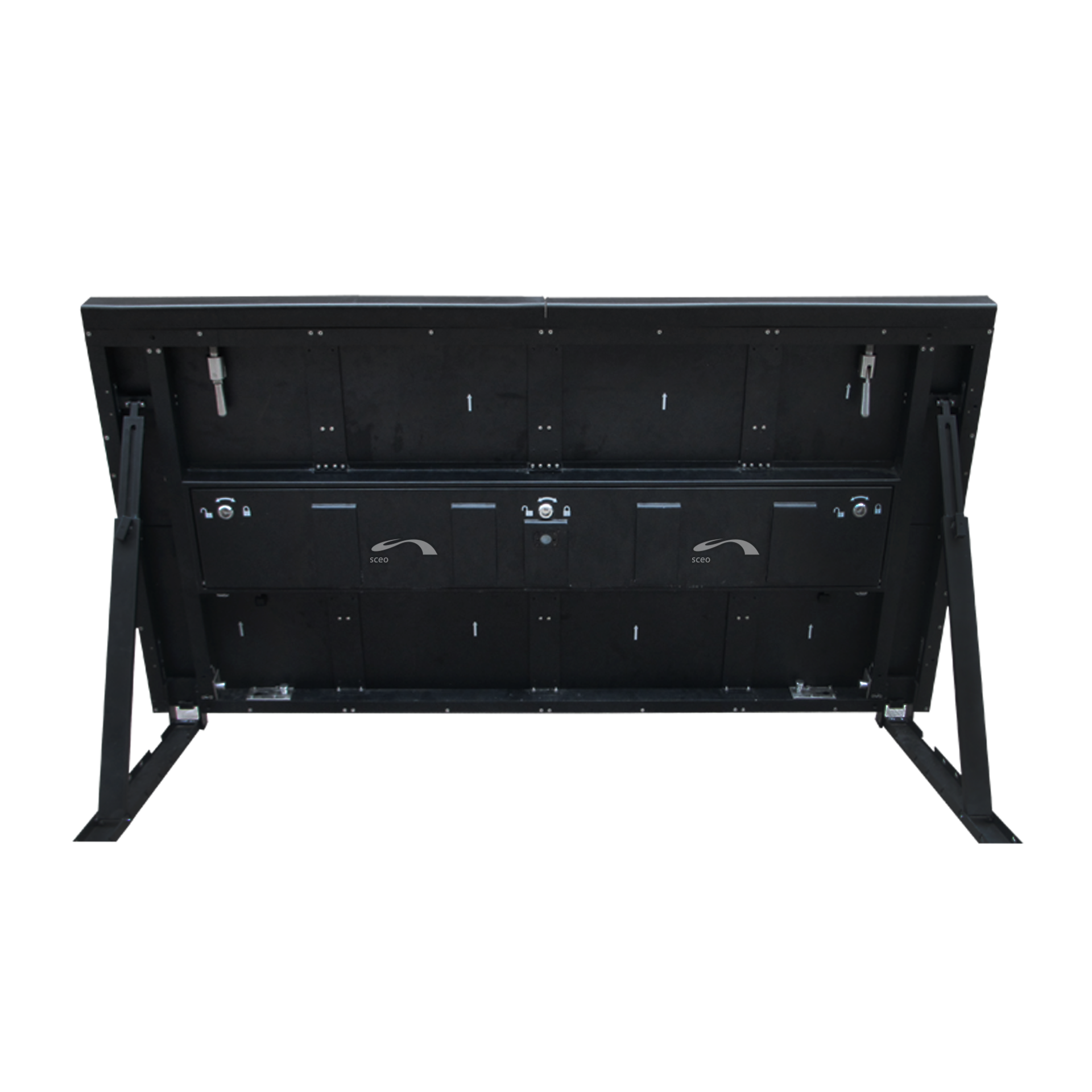

Front serviceable, easy access
High accuracy of installation, diecast system
Seamless display
Ultrathin module
Fast installation
Hit amortizing construction
Back serwis
HD Image
Black face SMD
Tech Specs
| Pixel pitch: | 12 mm (0.47in) | 16 mm (0.63in) |
| Pixel Density (pixels/m2) | 6,944 | 3,906 |
| Pixel Configuration | SMD 3 in 1 | SMD 3 in 1 |
| Cabinet Dimensions (W*H*D) | 1,536*768*65mm 60.47*30.24*25.59in |
1,536*768*65mm 60.47*30.24*25.59in |
| Module Resolution (pixels) | 128*64 | 96*48 |
| Brightness (nits) | 6,000 | 5,500 |
| Best viewing distance (m) | 15~40 | 20~53 |
| Max Power consumption (W/cabinet) | 767 | 720 |
| Viewing angle (vertical) | 140o | 140o |
| Viewing angle (horizontal) | 140o | 140o |
| Gray Scale levels (bits) | 16 | 16 |
| Refresh rate (Hz) | >600 | >1200 |
| Protection rating | Front IP65; Rear IP54 | Front IP65; Rear IP54 |
| LED lifetime (hours) | 100,000 | 100,000 |
| Weight (on cabinet) | 40kg (88.3lb) | 34kg (75lb) |
| Input voltage | 90~ 260VAC, 50/60Hz | 90~ 260VAC, 50/60Hz |
| Humidity range | 10%~99% | 10%~99% |
| Temperature Range | -20 ~ 50 | -20 ~ 50 |
Parameters can be modified according to the individual order.
