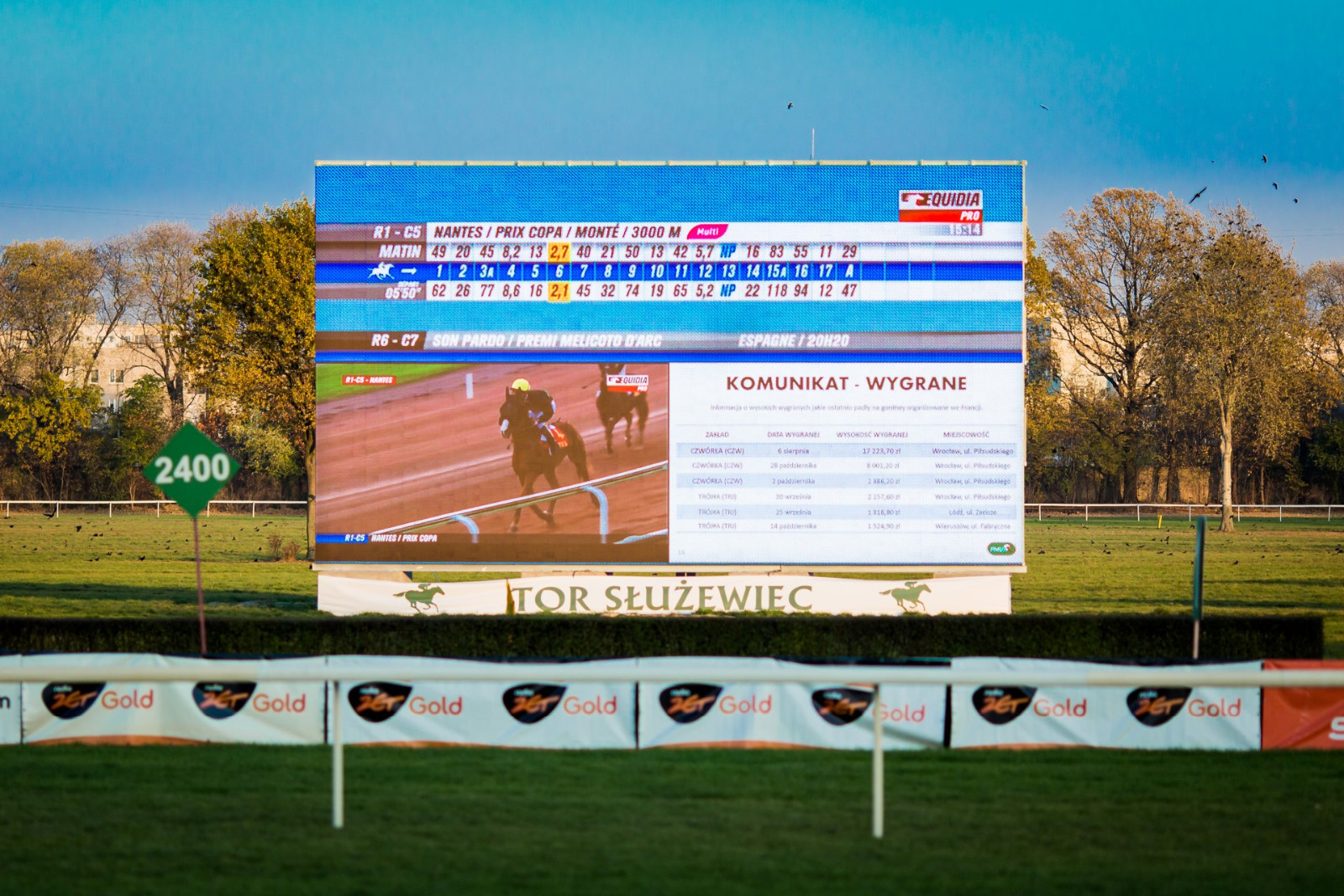

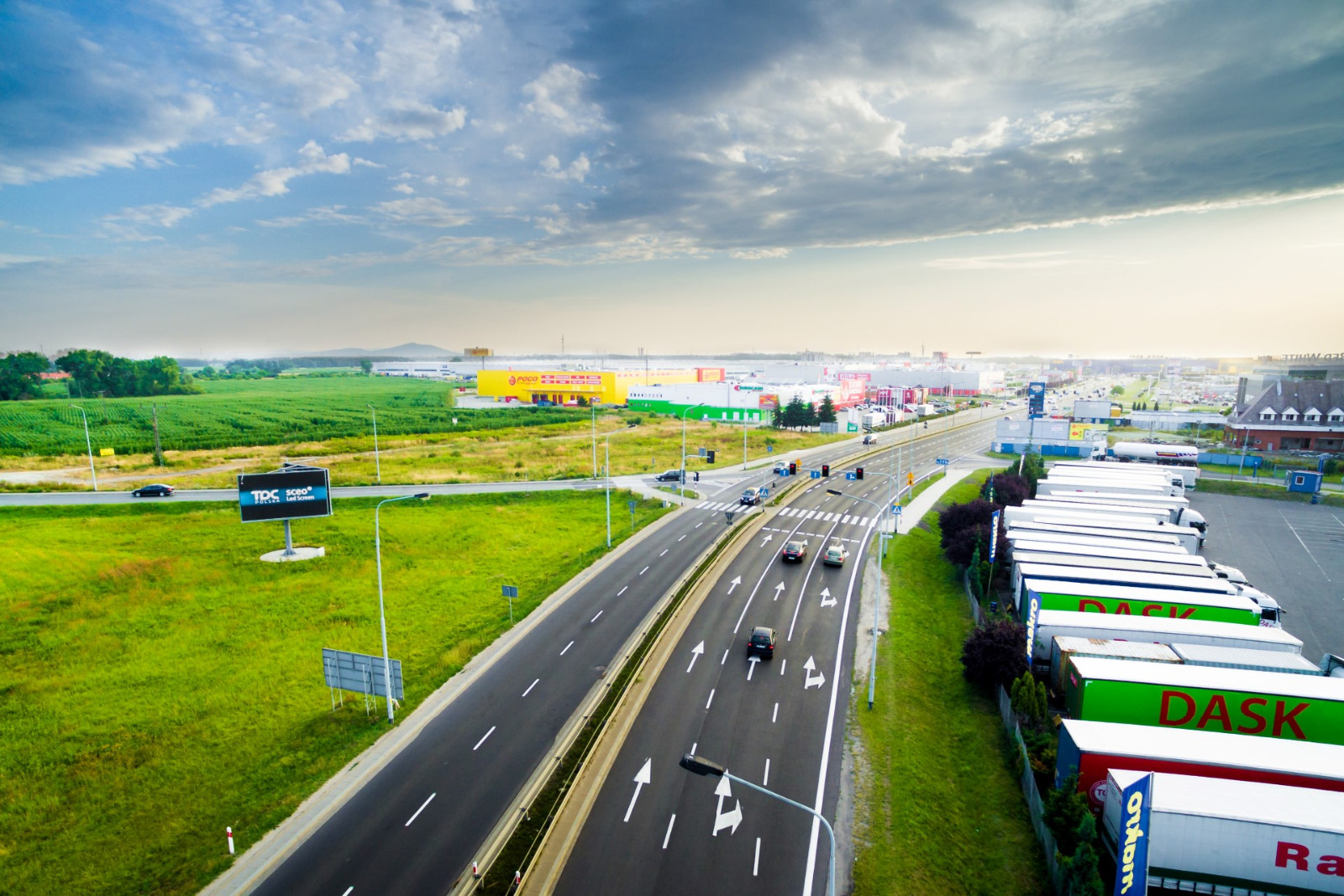

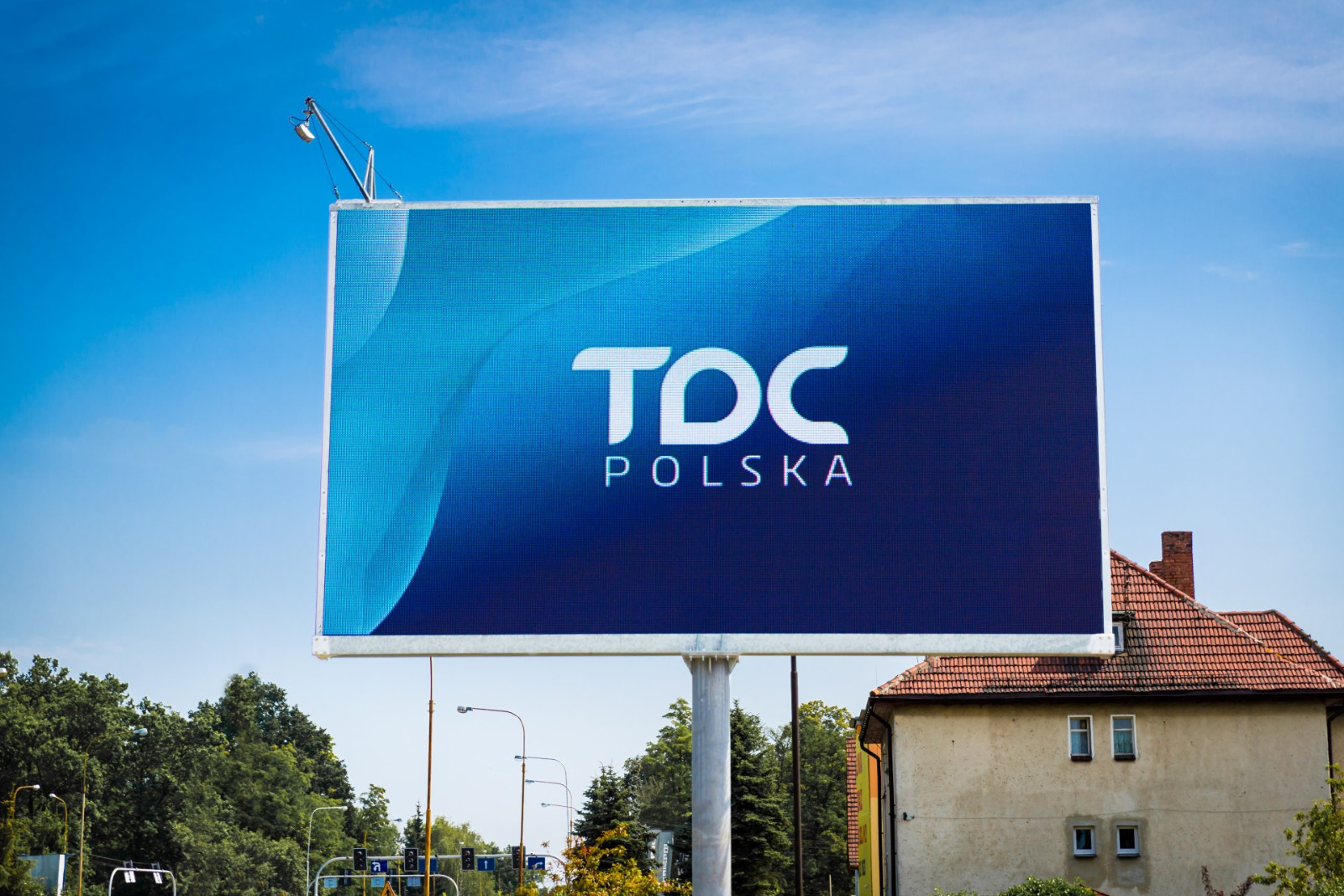

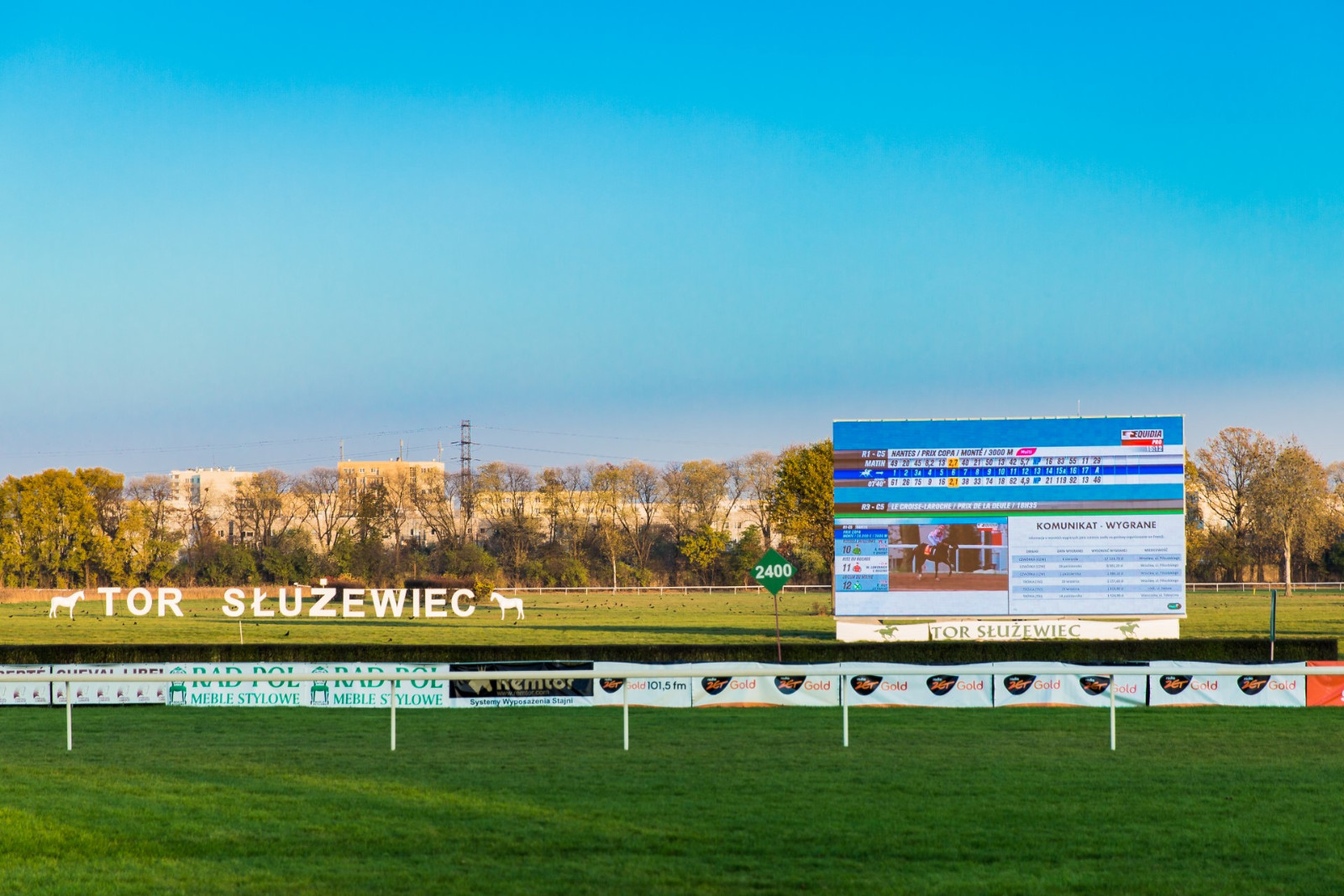

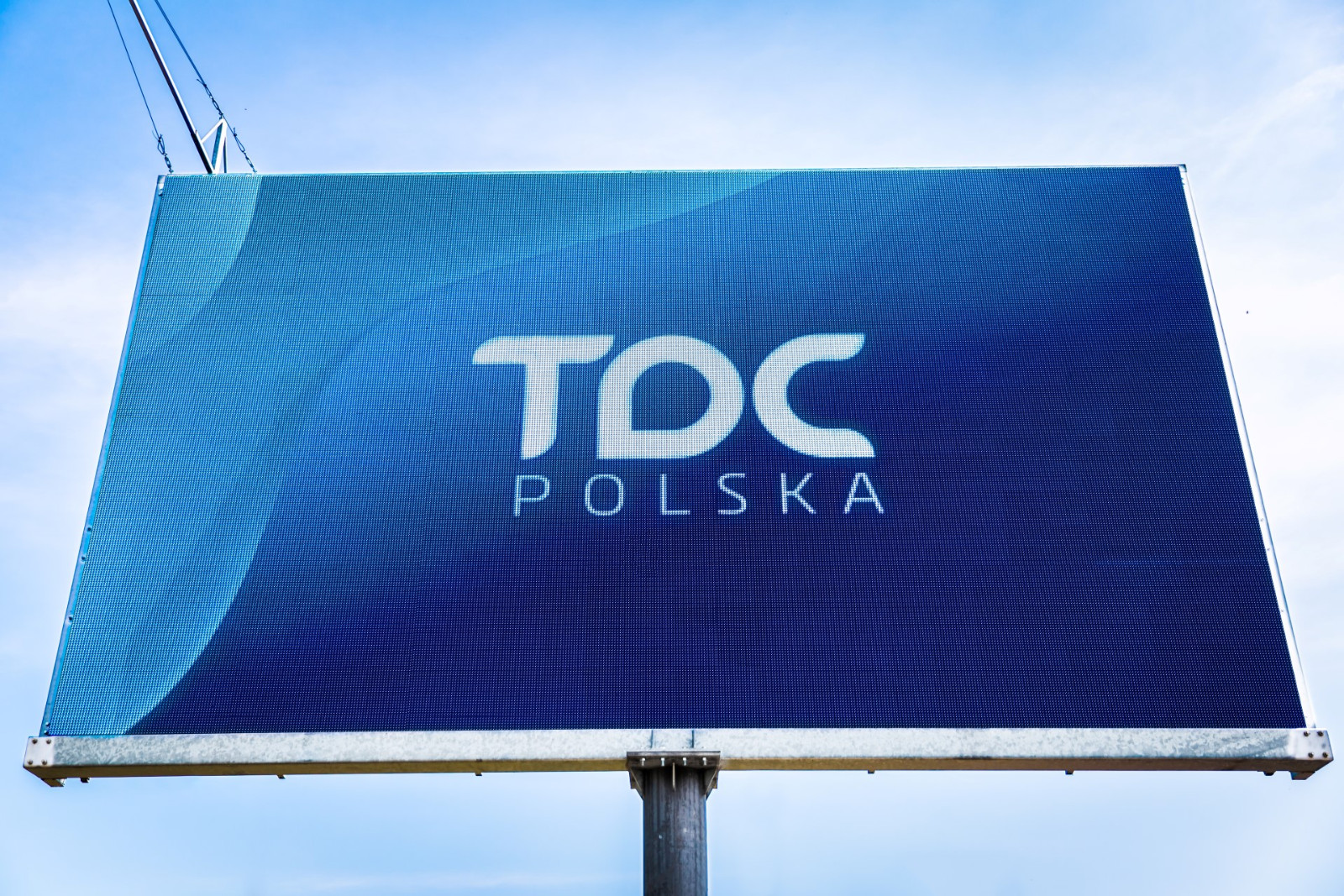

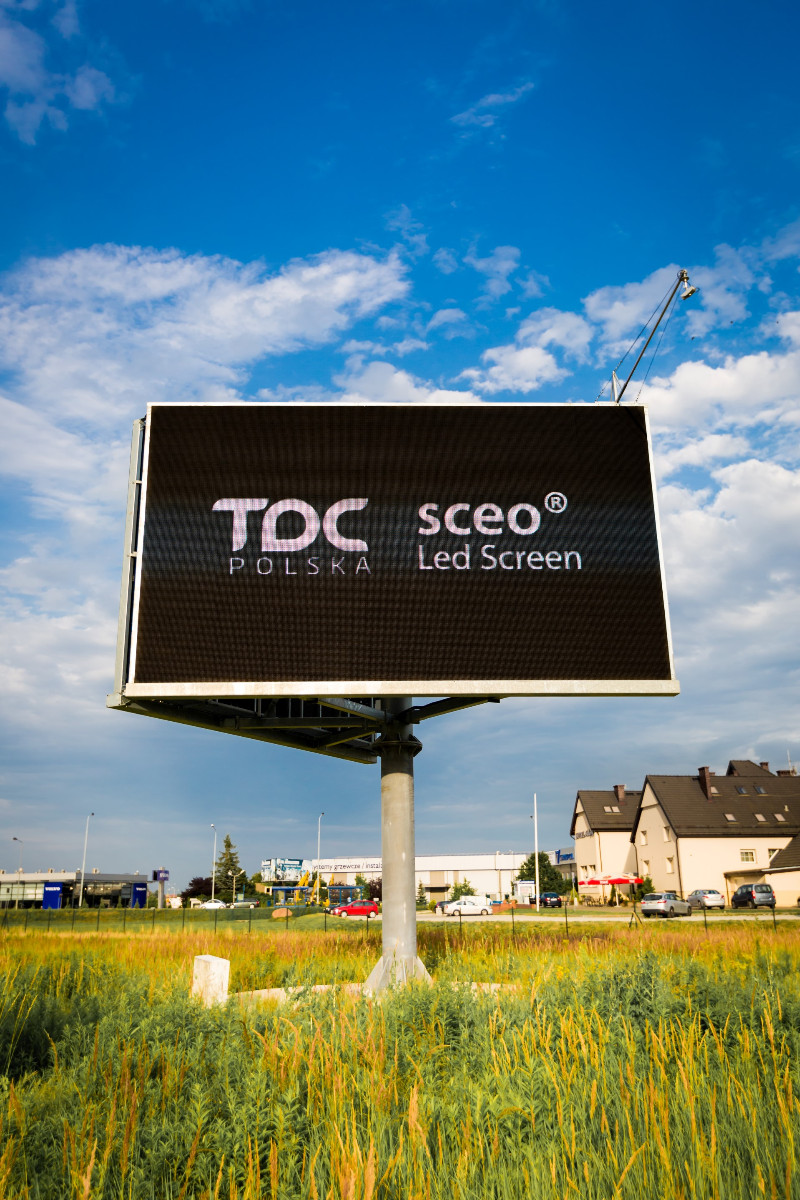

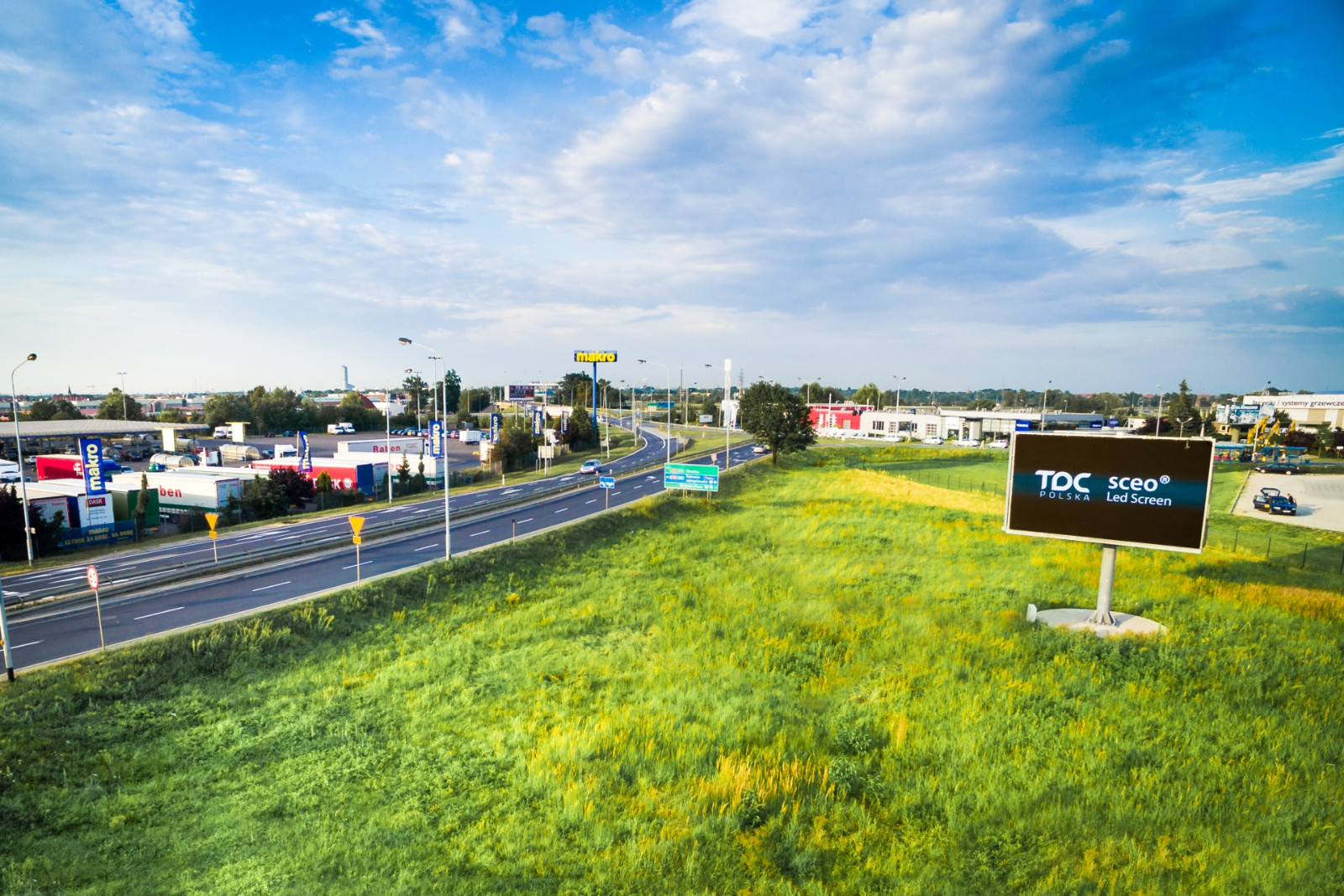

Type: LED screens dedicated for outdoor fixed installation, i.e information boards, advsertising banners, scoreboards, signboards
Application: Concert scenes, outdoor events, gardens, airports public transportation, public space
Distinguishing feature: The most economic solution available on the market
| Pixel pitch: | 10 mm(0.47n) | 12 mm(0.47in) | 12.5 mm(0.49in) | 16 mm(0.63in)R | 16 mm(0.63in)V | 20 mm(0.79in)R | 20 mm(0.79in)V | 25 mm(0.98in) | 31.25 mm(1.23in) | 37.5 mm(1.48in) |
| Pixel Density (pixels/m2) | 10,000 | 6,944 | 6,400 | 3,906 | 3,906 | 2,500 | 2,500 | 1,600 | 1,024 | 711 |
| Pixel Configuration | 1R1G1B | 1R1G1B | 2R1G1B | 1R1G1B | 2R1G1B | 1R1G1B | 2R1G1B | 1R1G1B | 4R2G2B | 4R3G2B |

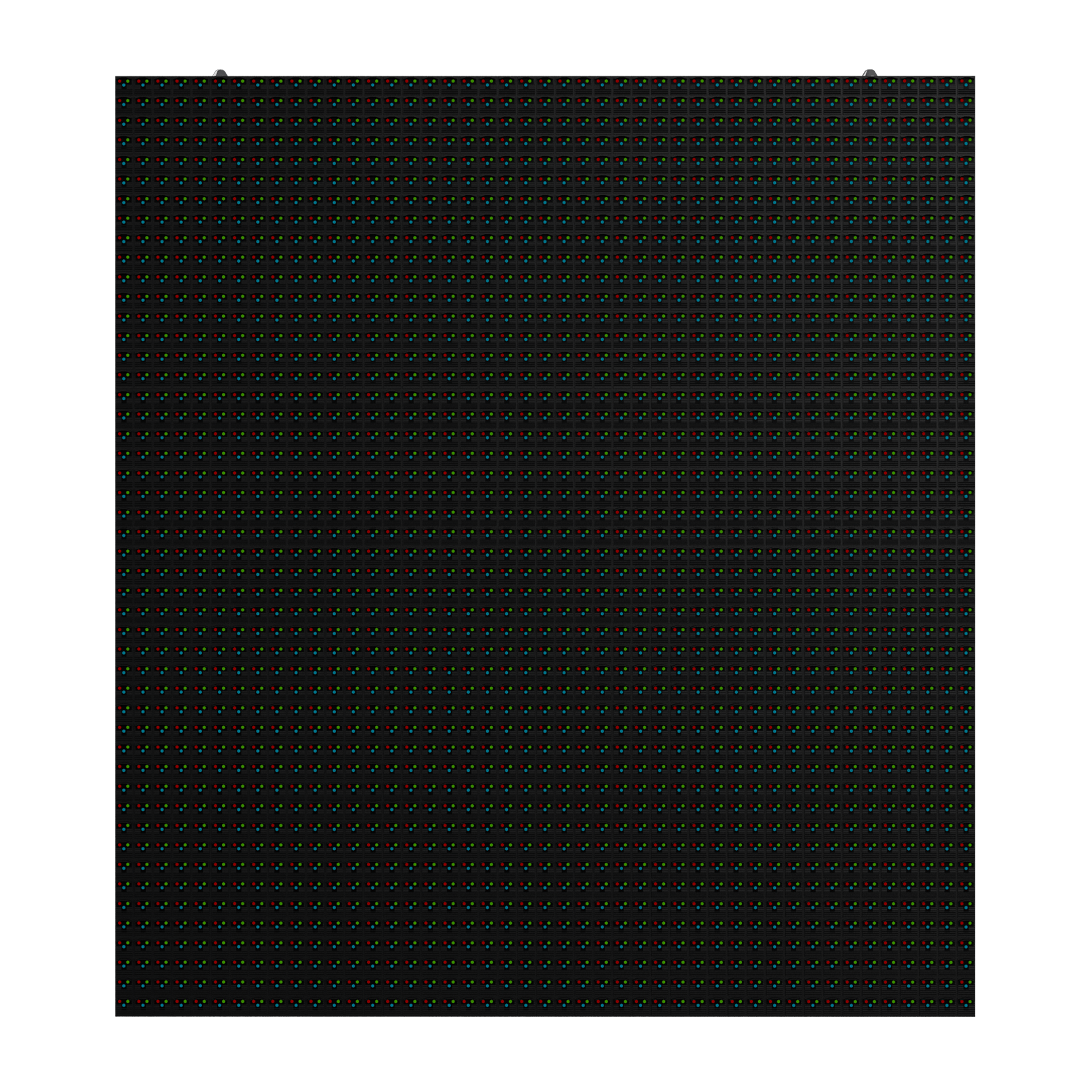

| Module Dimension | 160*160mm 6.30*6.30in |
192*192mm 7.56*7.56in |
200*200mm 7.87*7.87in |
256*128mm 10.08*5.04in |
256*128mm (10.08*5.04in) |
320*160mm 12.60*6.30in |
320*160mm 12.60*6.30in |
200*200mm 7.87*7.87in |
250*250mm 9.84*9.84in |
300*300mm 11.81*11.81in |
| Module Resolution | 16*16 | 16*16 | 16*16 | 16*8 | 16*8 | 16*8 | 16*8 | 8*8 | 8*8 | 8*8 |

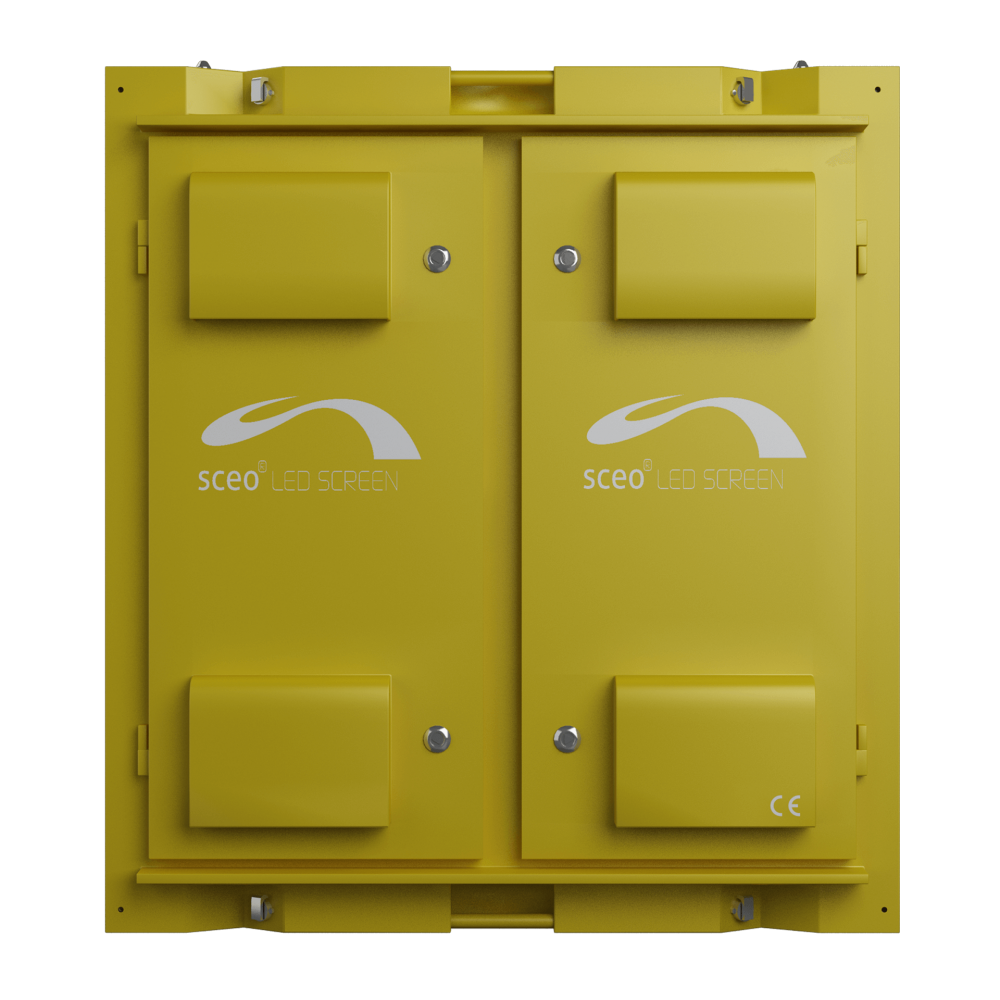

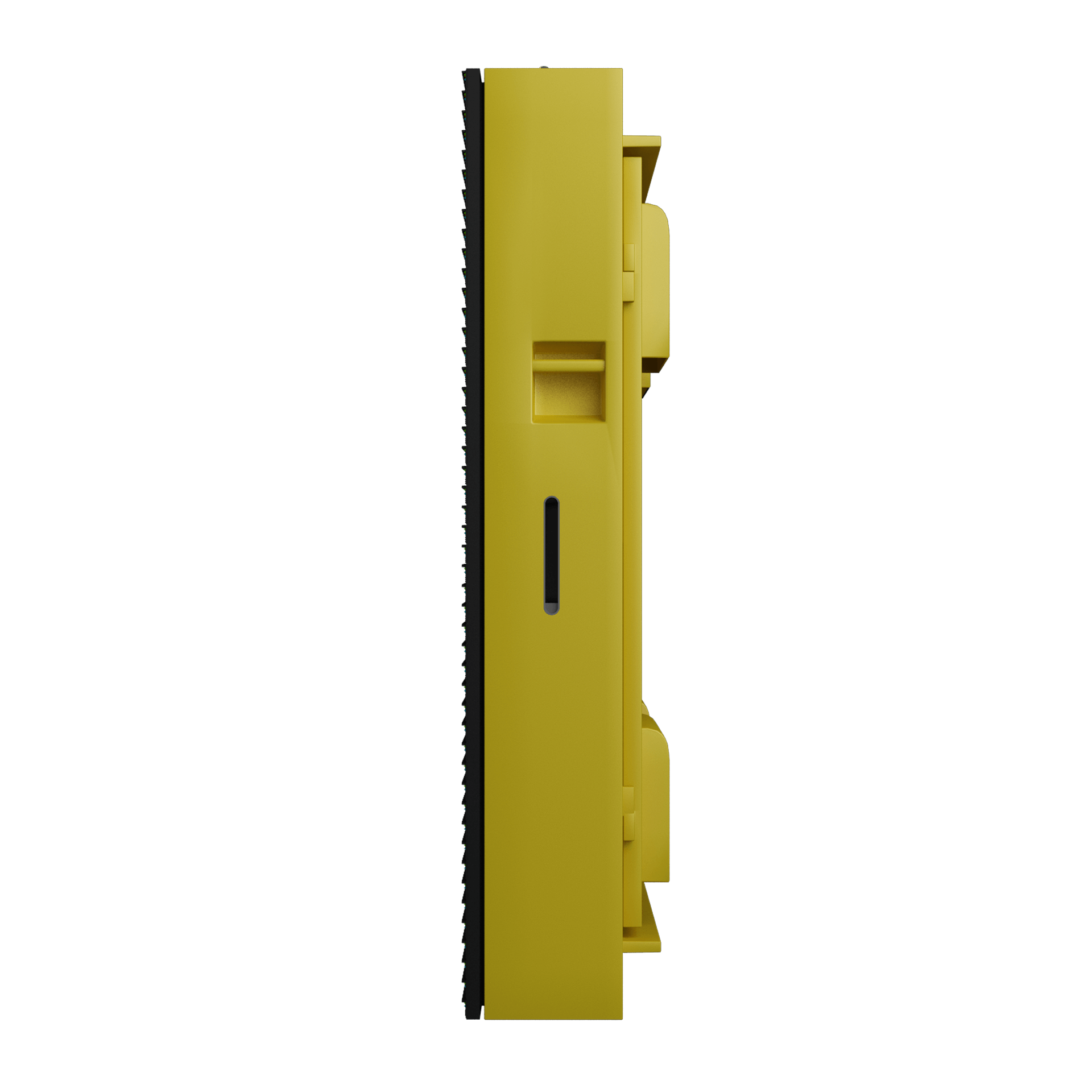

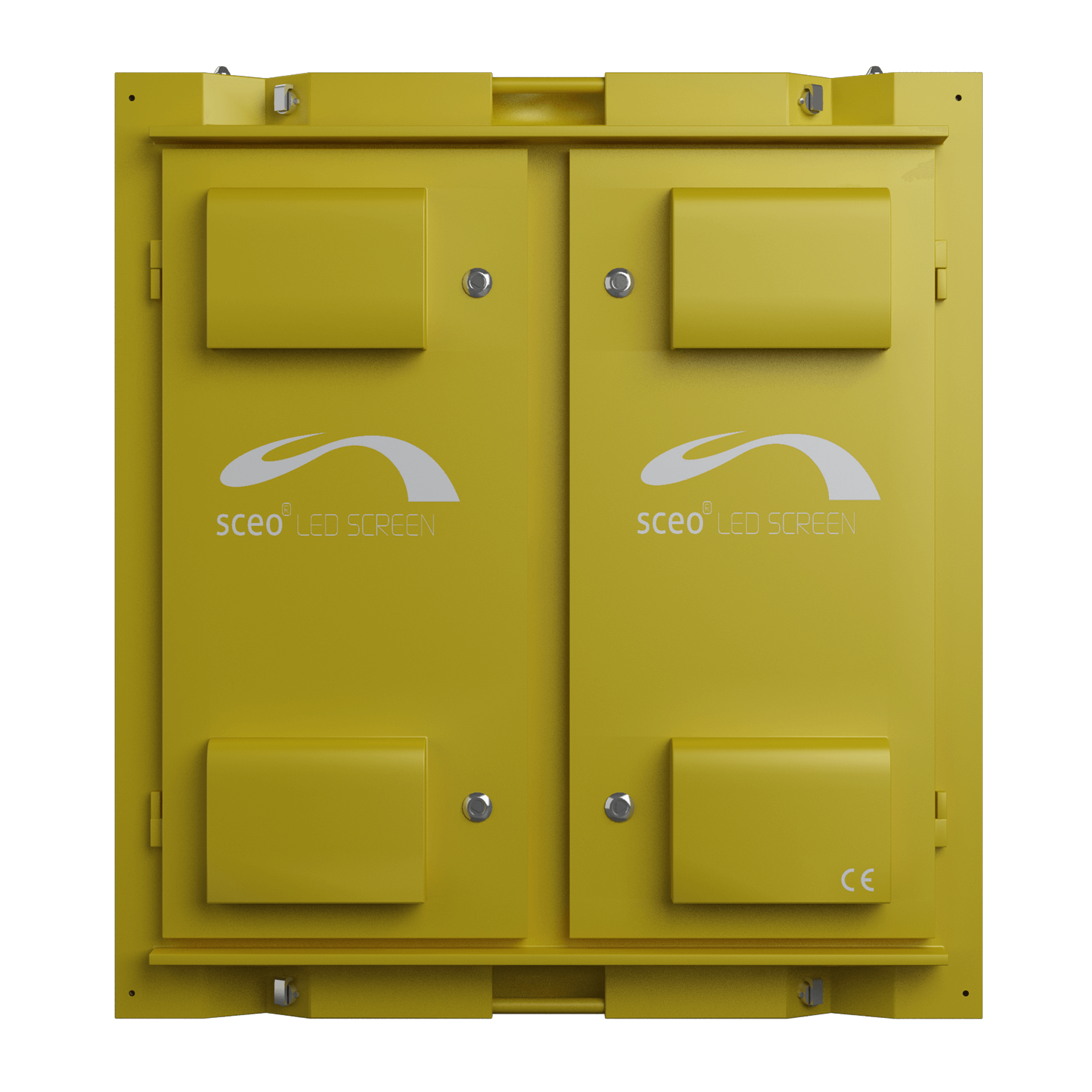

| Cabinet Dimensions | 640*640mm 25.20*25.20in |
768*768mm 30.24*30.24in |
800*800mm 31.50*31.50in |
1,024*768mm 40.31*30.24in |
1,024*768mm 40.31*30.24in |
1,280*960mm 50.39*37.80in |
1,280*960mm 50.39*37.80in |
1,000*1,000mm 39.37*39.37in |
1,000*1,000mm 39.37*39.37in |
1,200*1,200mm 47.24*47.24in |
| Cabinet Resolution (pixels) | 64*64 | 64*64 | 64*64 | 64*48 | 64*48 | 64*48 | 64*48 | 40*40 | 32*32 | 32*32 |
| Brightness (nits) | 6,800 | 6,800 | 6,400 | 7,500 | 7,500 | 6,800 | 6,800 | 5,000 | 6,000 | 6,000 |
| Max Power consumption (W/m2) | 720 | 665 | 890 | 835 | 900 | 650 | 820 | 465 | 800 | 600 |
| Best viewing distance (m) | 13~33 | 15~40 | 15~40 | 20~53 | 20~53 | 25~67 | 25~67 | 31~83 | 40~107 | 48~127 |
| Viewing angle (vertical) | 60o | 60o | 60o | 60o | 60o | 60o | 60o | 60o | 60o | 60o |
| Viewing angle (horizontal) | 120o | 120o | 120o | 120o | 120o | 120o | 120o | 120o | 120o | 120o |
| Gray Scale levels (bits) | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Refresh rate (Hz) | >600 | >600 | >600 | >600 | >1000 | >1000 | >1000 | >1000 | >1000 | >1000 |
| Protection rating | Front IP65; Rear IP54 | Front IP65; Rear IP54 | Front IP65; Rear IP54 | Front IP65; Rear IP54 | Front IP65; Rear IP54 | Front IP65; Rear IP54 | Front IP65; Rear IP54 | Front IP65; Rear IP54 | Front IP65; Rear IP54 | Front IP65; Rear IP54 |
| LED lifetime (hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Input voltage | 90~ 260VAC, 50/60Hz | |||||||||
| Humidity range | 10%~99% | 10%~99% | 10%~99% | 10%~99% | 10%~99% | 10%~99% | 10%~99% | 10%~99% | 10%~99% | 10%~99% |
| Temperature Range | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 |
Parameters can be modified according to the individual order.
