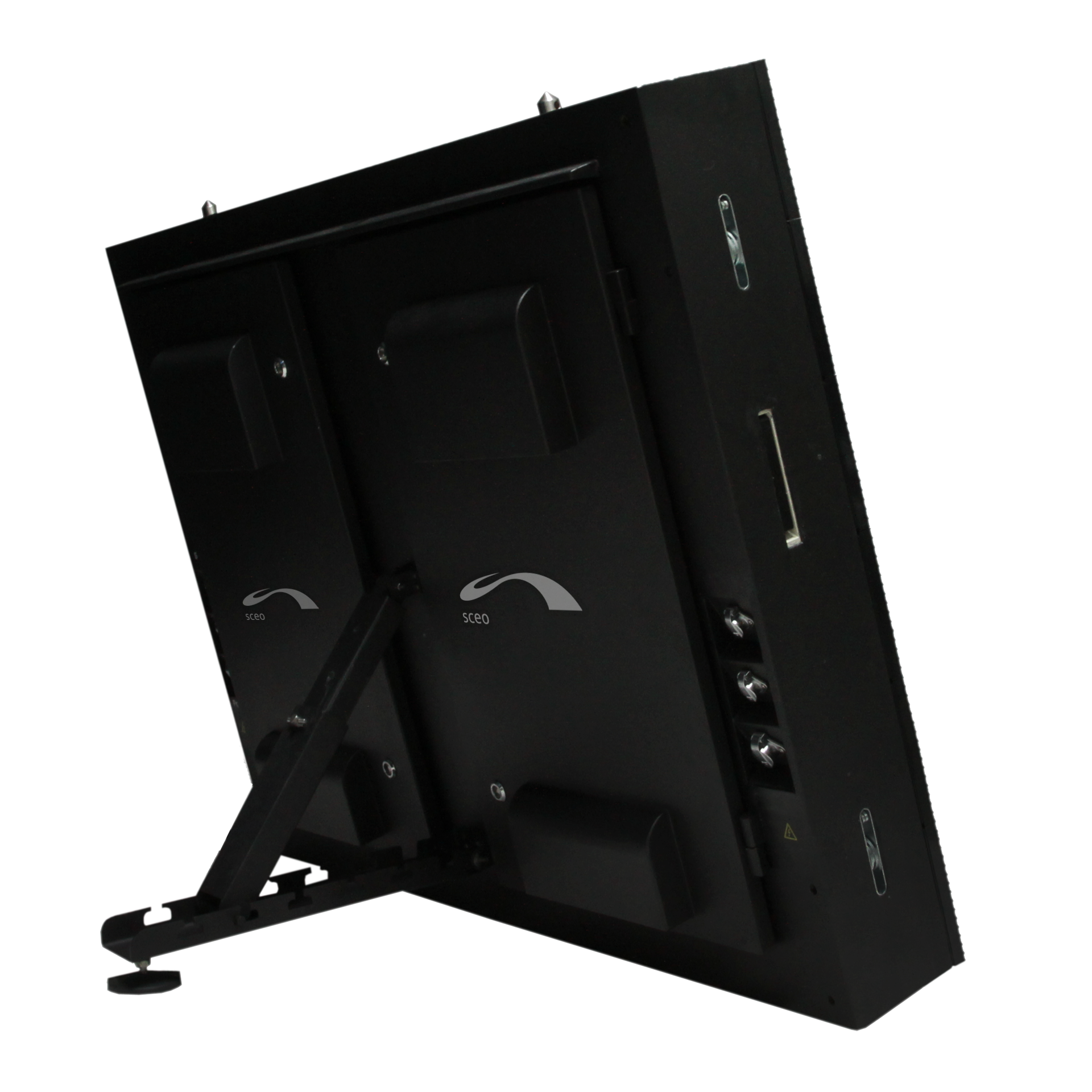

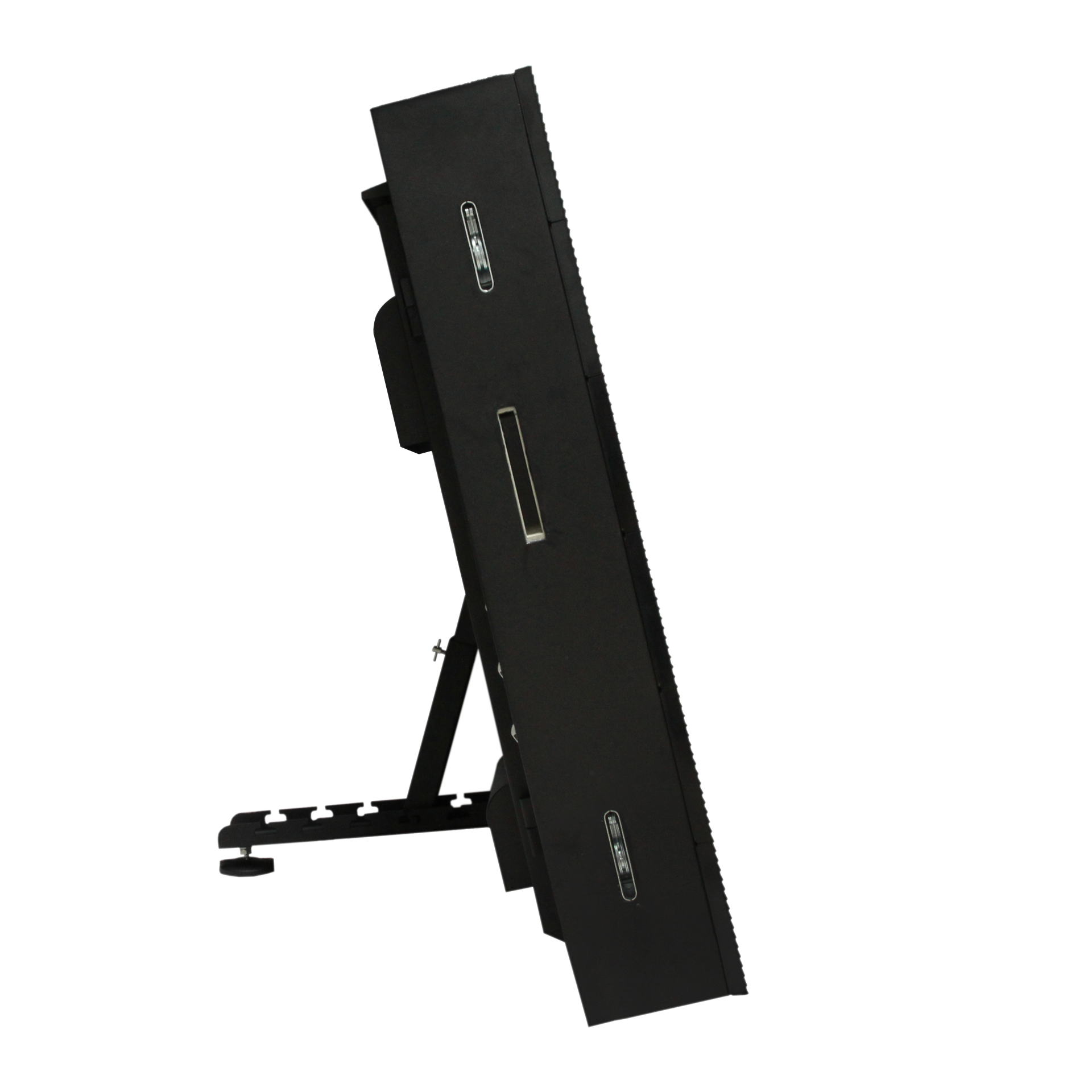

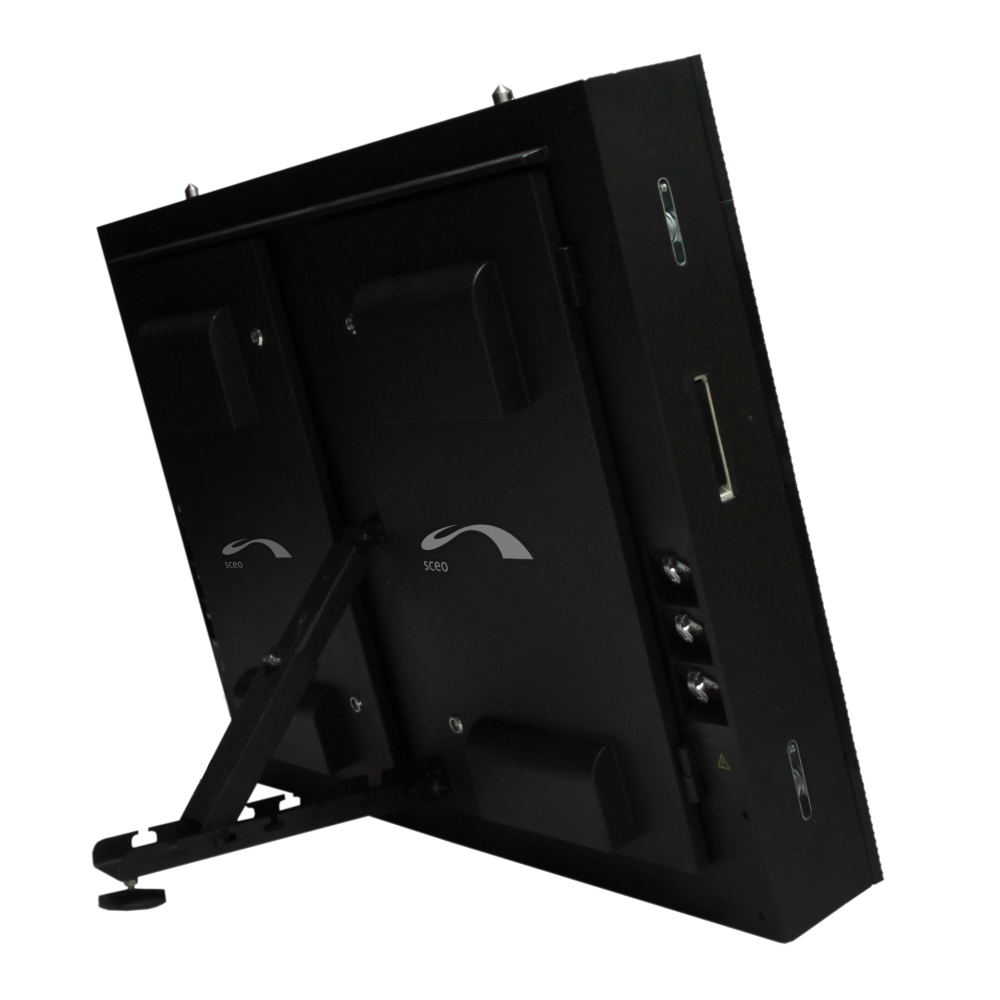

Construction of the cabinet adapted to installation directly on a ground, contains injury protecting solutions

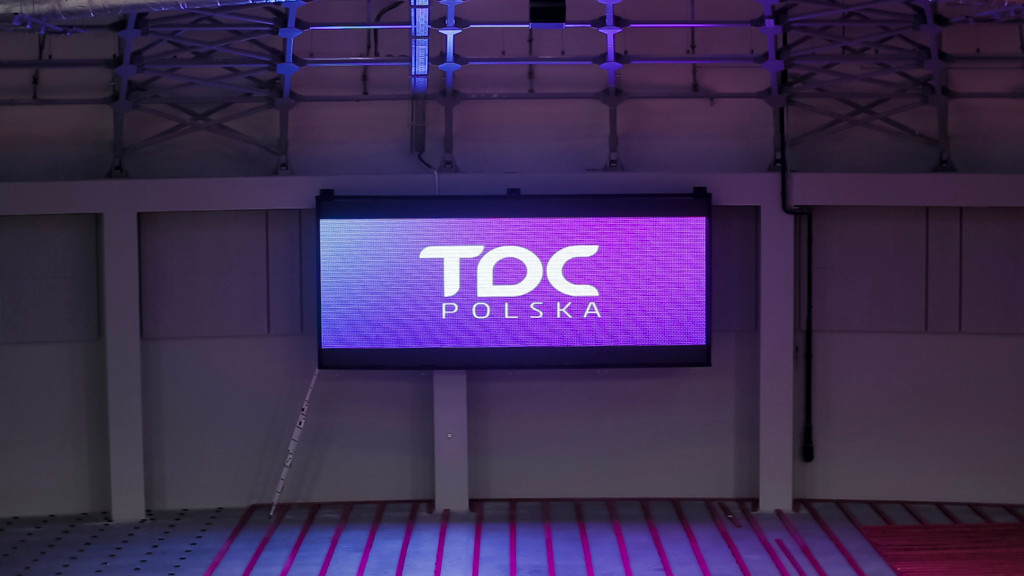

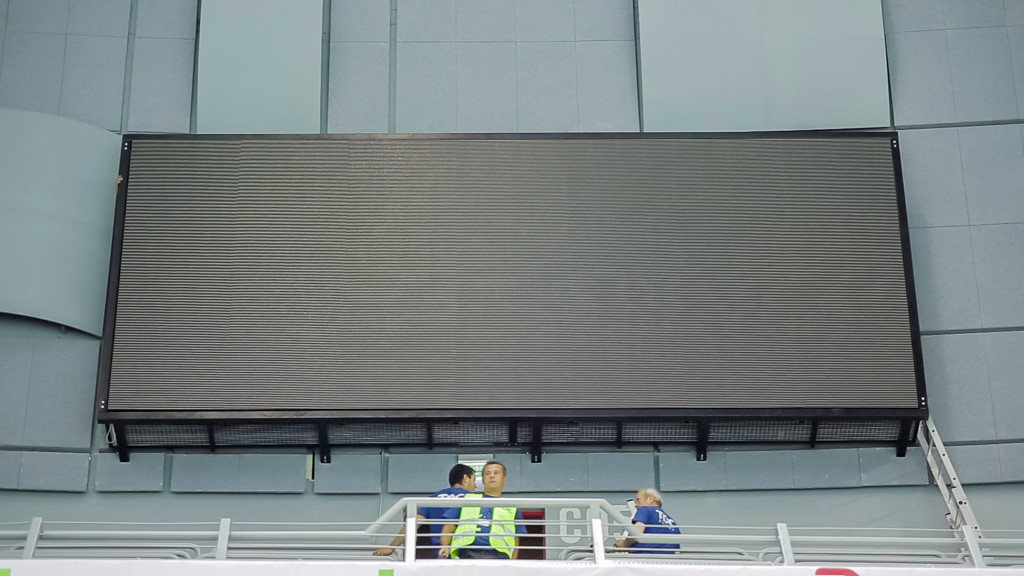

Type: LED screens dedicated to indoor installation in entertainment and sports halls
Application: Entertainment and sports halls, ice rinks, pools, tennis courts
Distinguishing feature: Construction of the cabinet adapted to installation directly on a ground, contains injury protecting solutions
| Pixel pitch: | 10 mm (0.47in) |
| Pixel Density (pixels/m2) | 6,944 |
| Pixel Configuration | SMD 3 in 1 |
| Module Dimension | 192*192mm 7.56*7.56in |
| Module Resolution (pixels) | 16*16 |

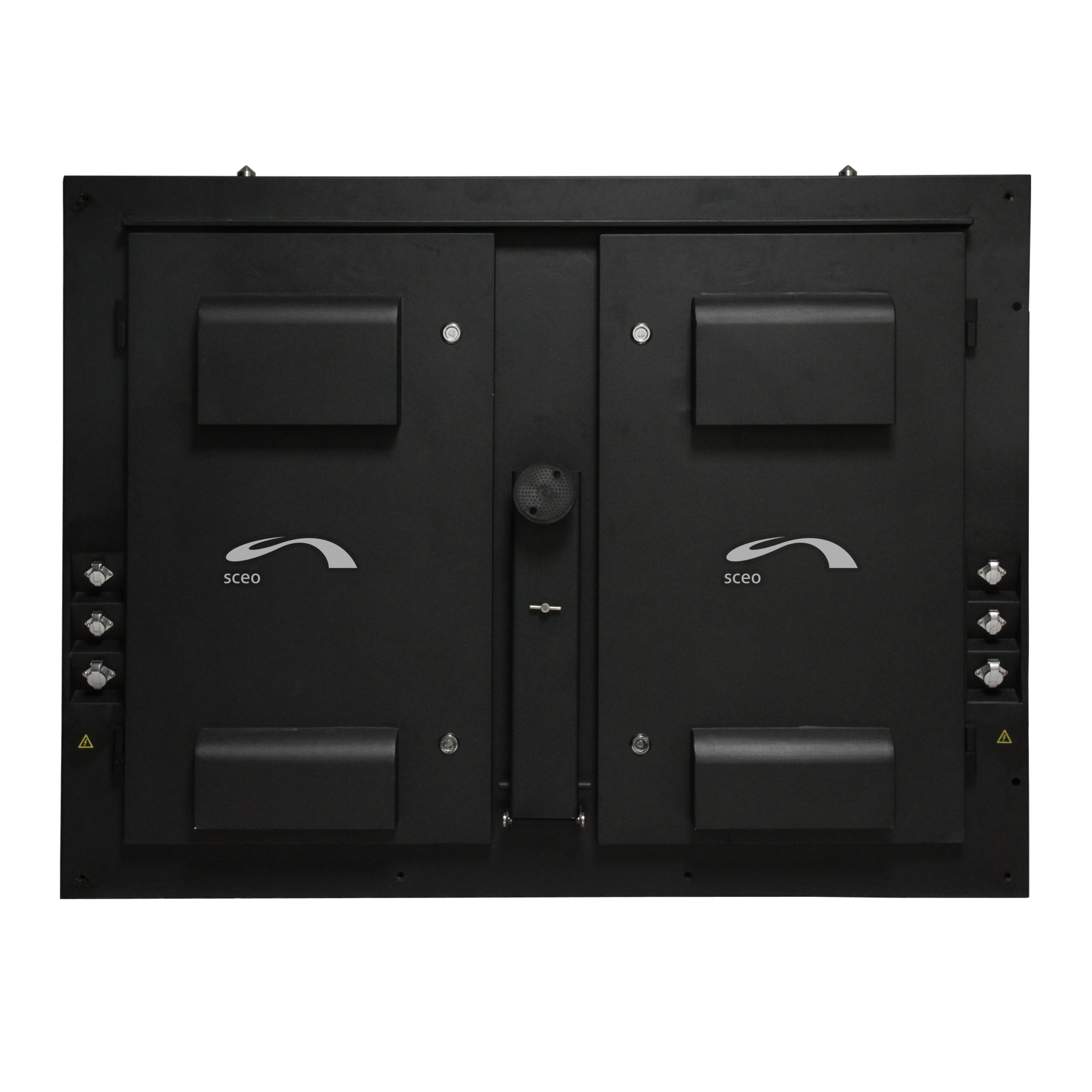

| Cabinet Dimensions | 1,152*768mm 45.35*30.24in |
| Cabinet Resolution (pixels) | 90*64 |
| Brightness (nits) | 1,500 |
| Best viewing distance (m) | 15~40 |
| Max Power consumption (W/m2) | 550 |
| Viewing angle (vertical) | 140o |
| Viewing angle (horizontal) | 140o |
| Gray Scale levels (bits) | 16 |
| Refresh rate (Hz) | >600 |
| Protection rating | IP40 |
| LED lifetime (hours) | 100,000 |
| Input voltage | 90~ 260VAC, 50/60Hz |
| Humidity range | 10%~99% |
| Temperature Range | -20 ~ 60 |
Parameters can be modified according to the individual order.
