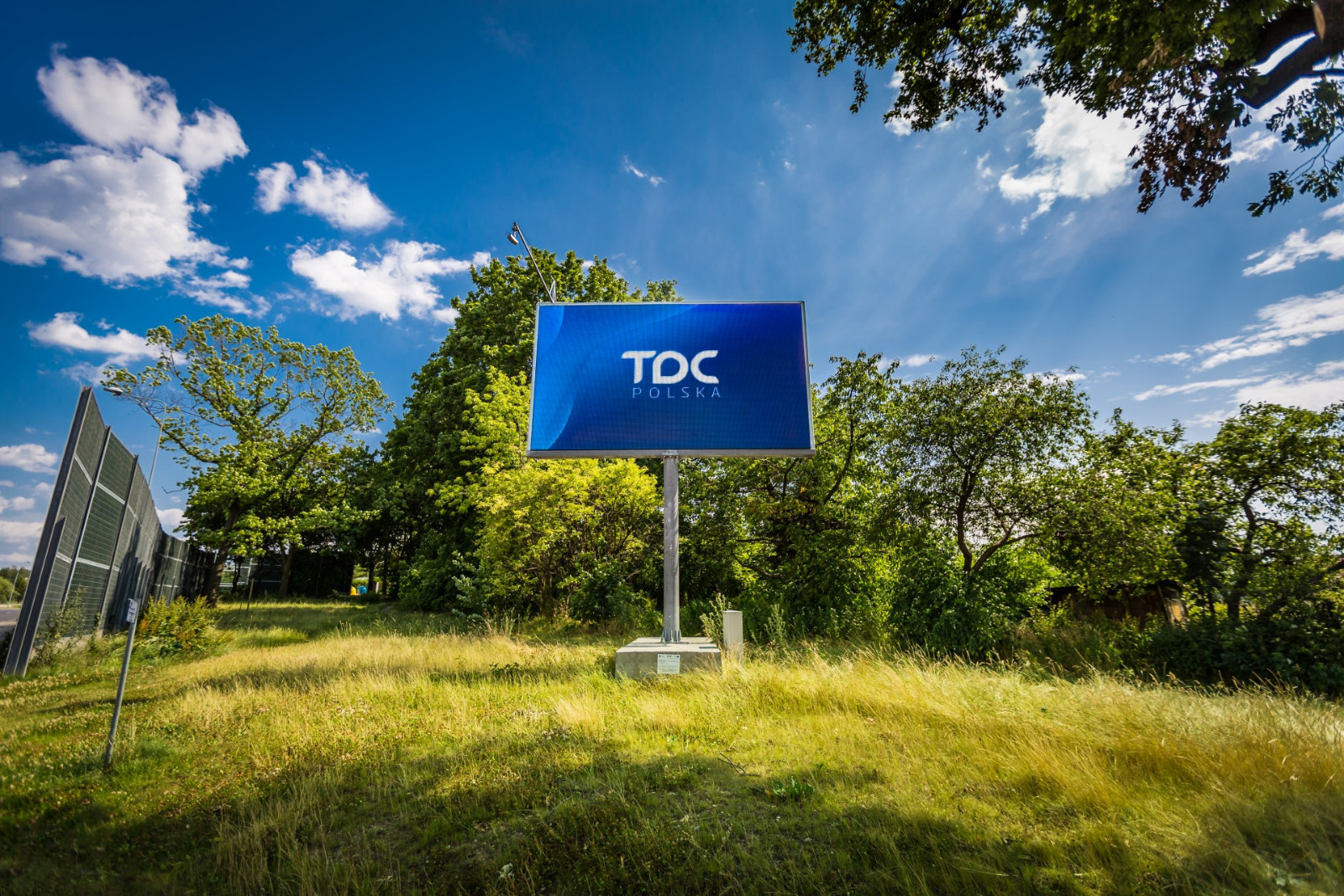

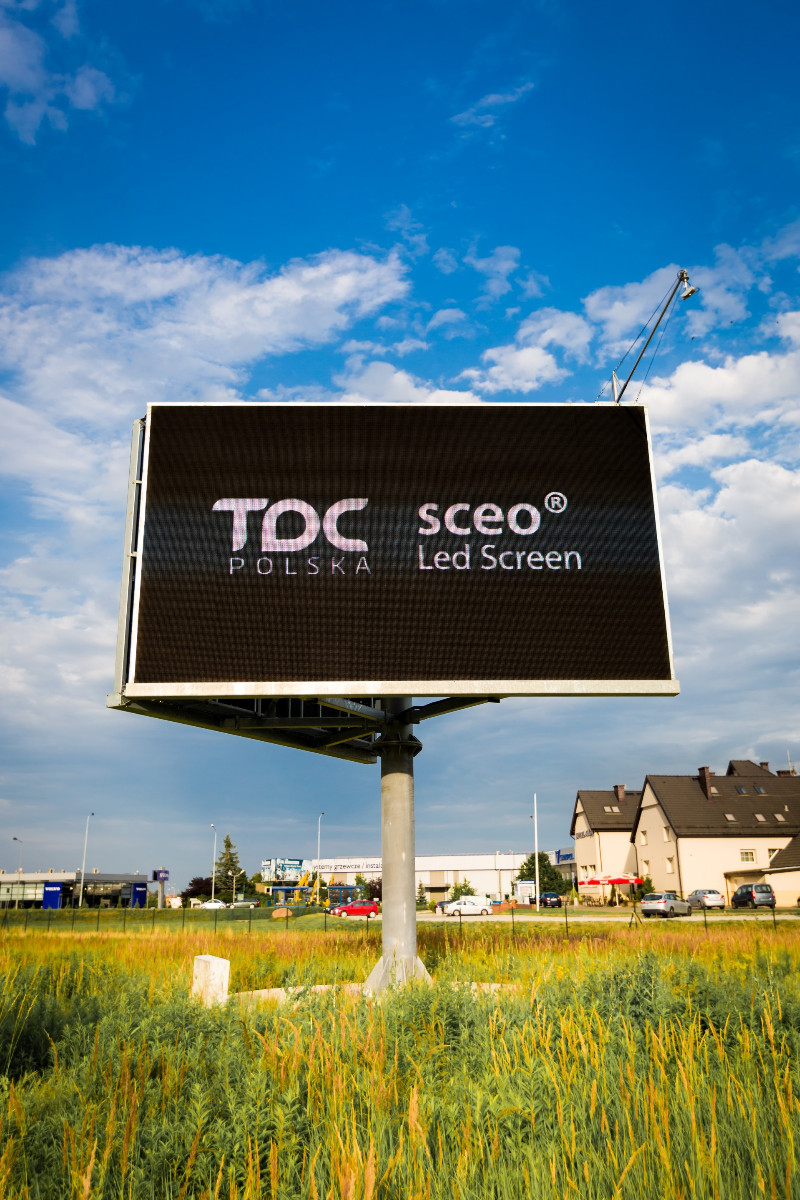

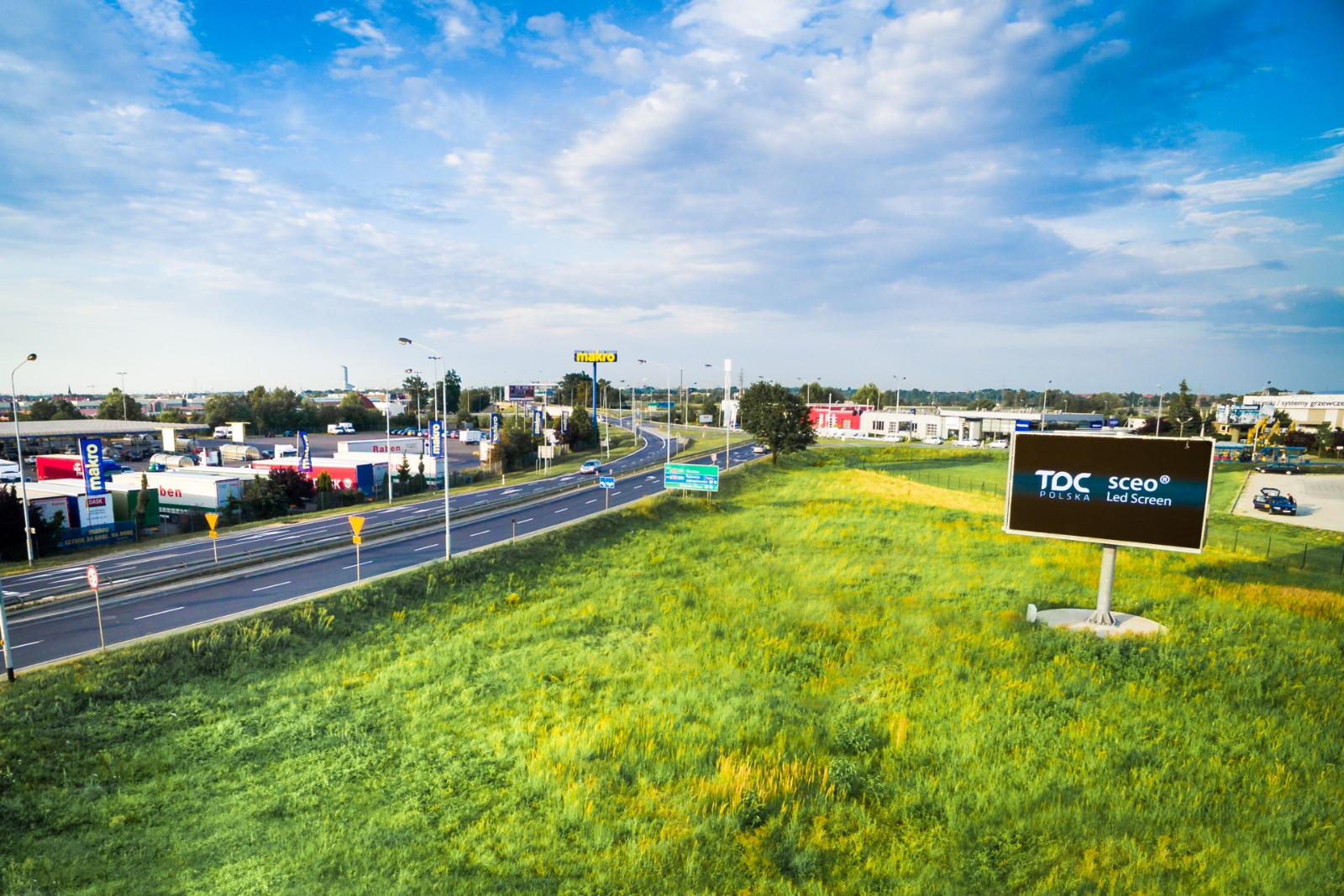

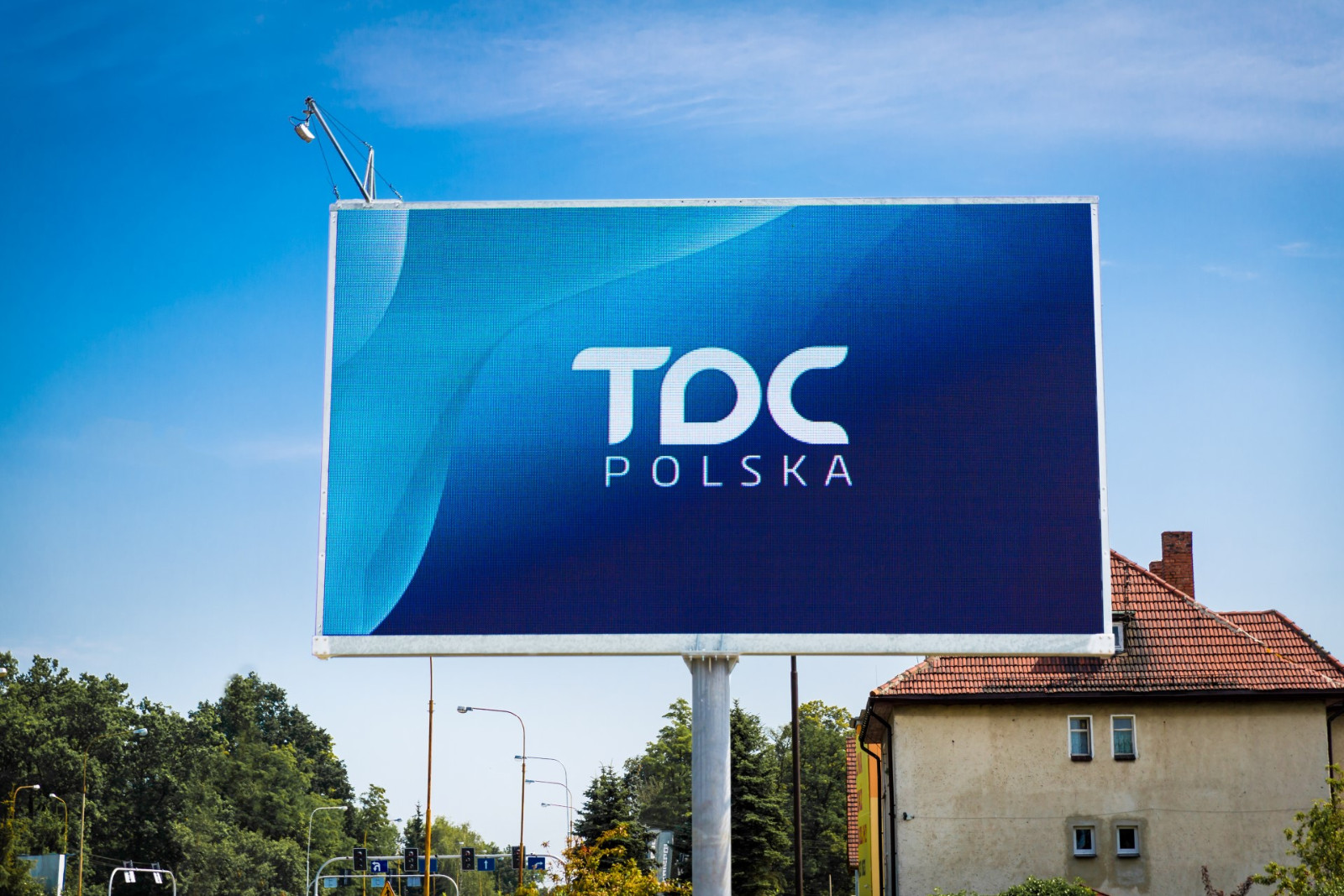

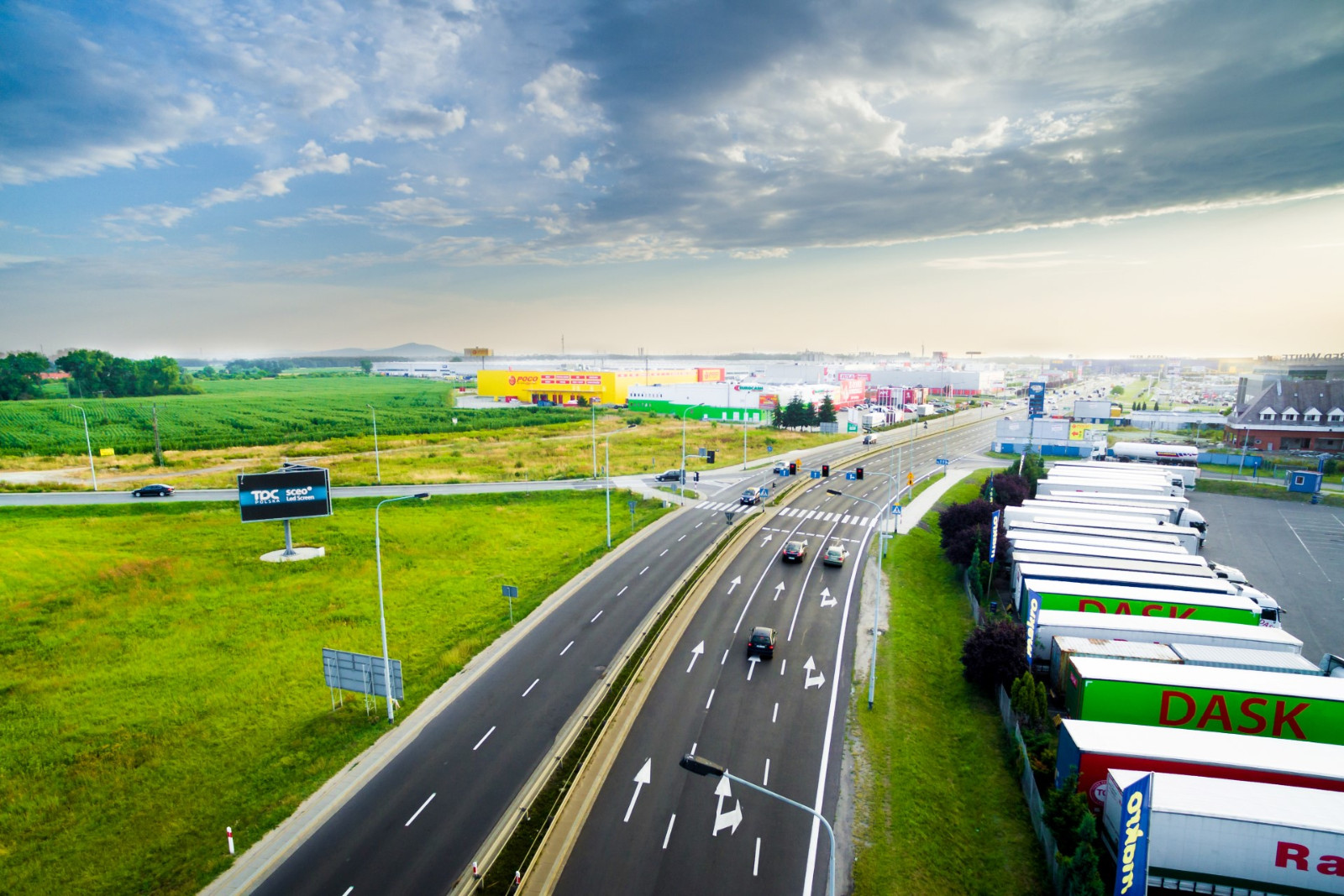

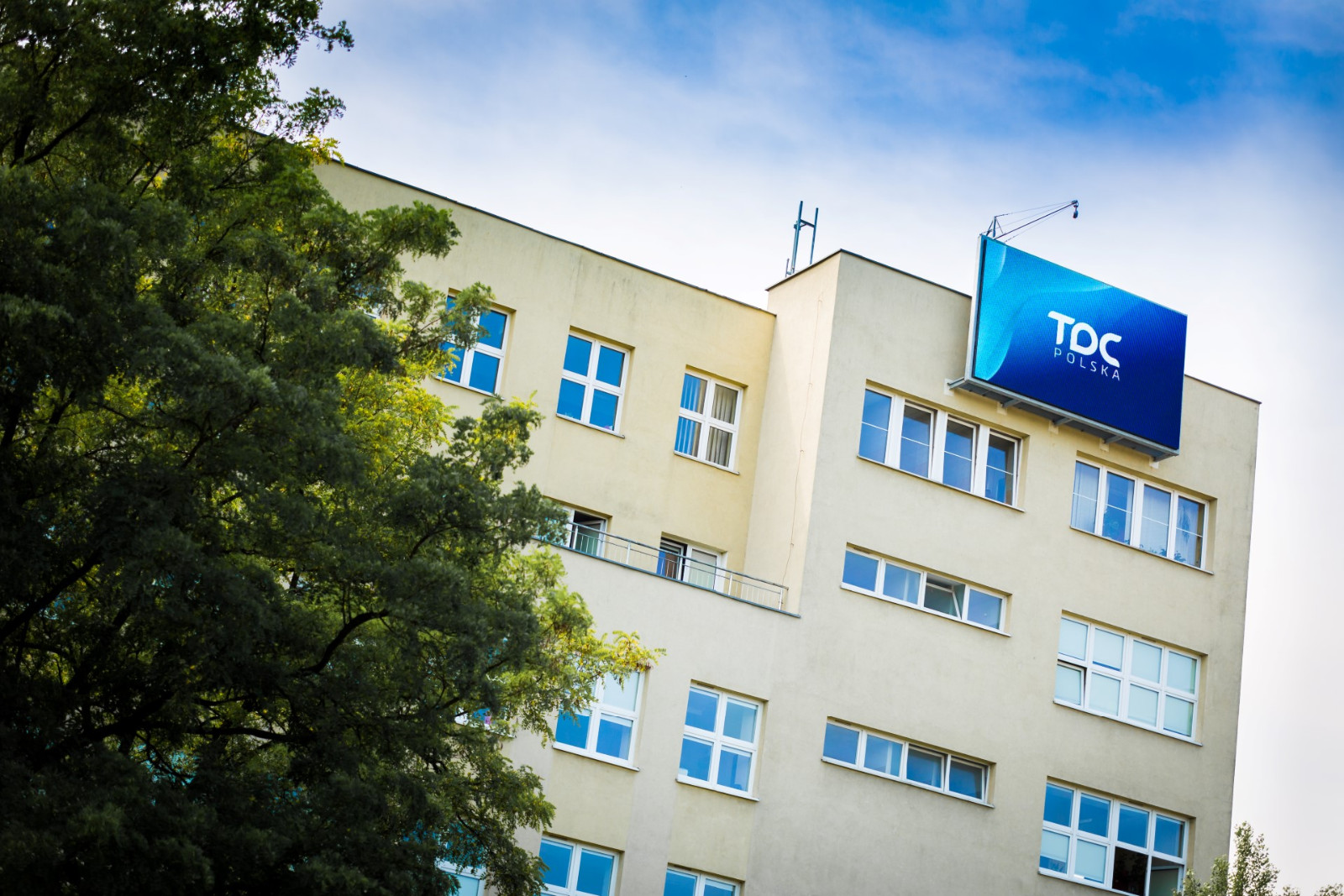

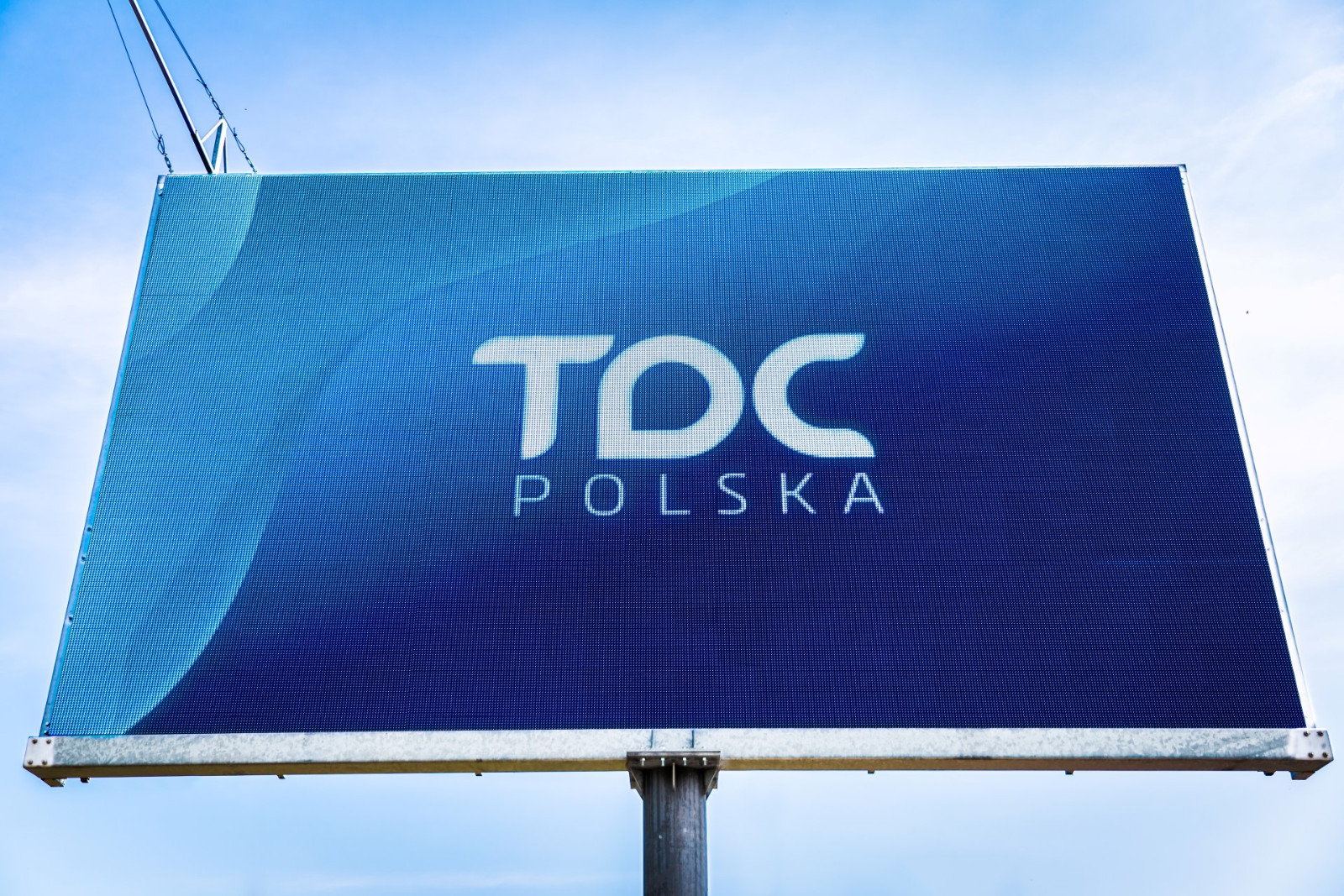

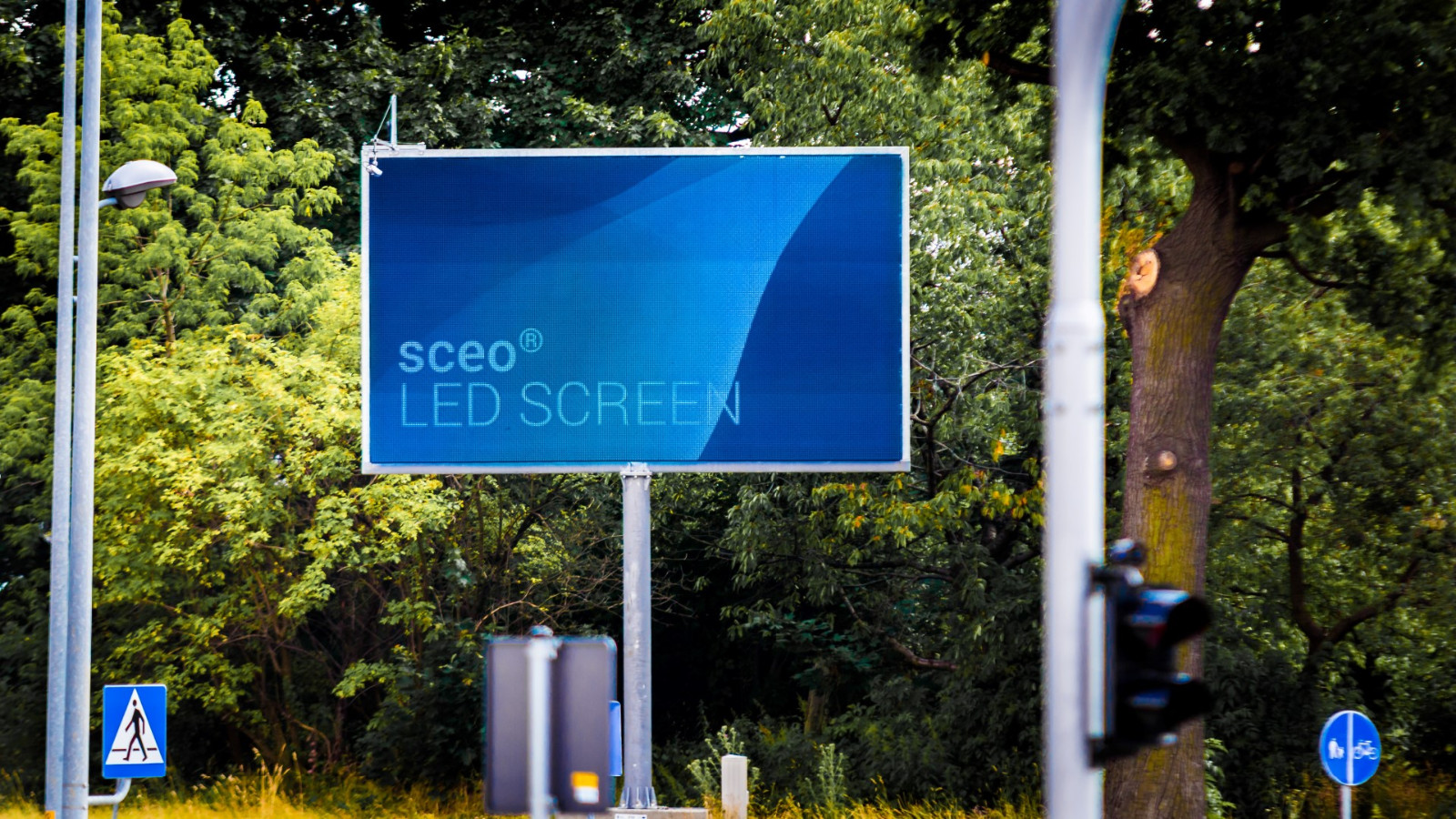

Type: LED screens dedicated for outdoor fixed installation, i.e information boards, advertising banners, video banners, signboards, VMS
Application: Concert scenes, outdoor events, airports, public transportation, public space
Distinguishing feature: Versatility
| Pixel pitch: | 6.25 mm(0.25in) | 8 mm(0.31in) | 10 mm(0.39in) | 12 mm(0.47in) | 16 mm(0.63in) |
| Pixel Density (pixels/m2) | 25,600 | 15,625 | 10,000 | 6,944 | 3,906 |
| Pixel Configuration | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Module Dimension | 250*250mm 9.84*9.84in |
256*128mm 10.08*5.04in |
160*160mm 6.30*6.30in |
192*192mm 7.56*7.56in |
256*128mm 10.08*5.04in |
| Module Resolution (pixels) | 40*40 | 32*16 | 16*16 | 16*16 | 16*8 |

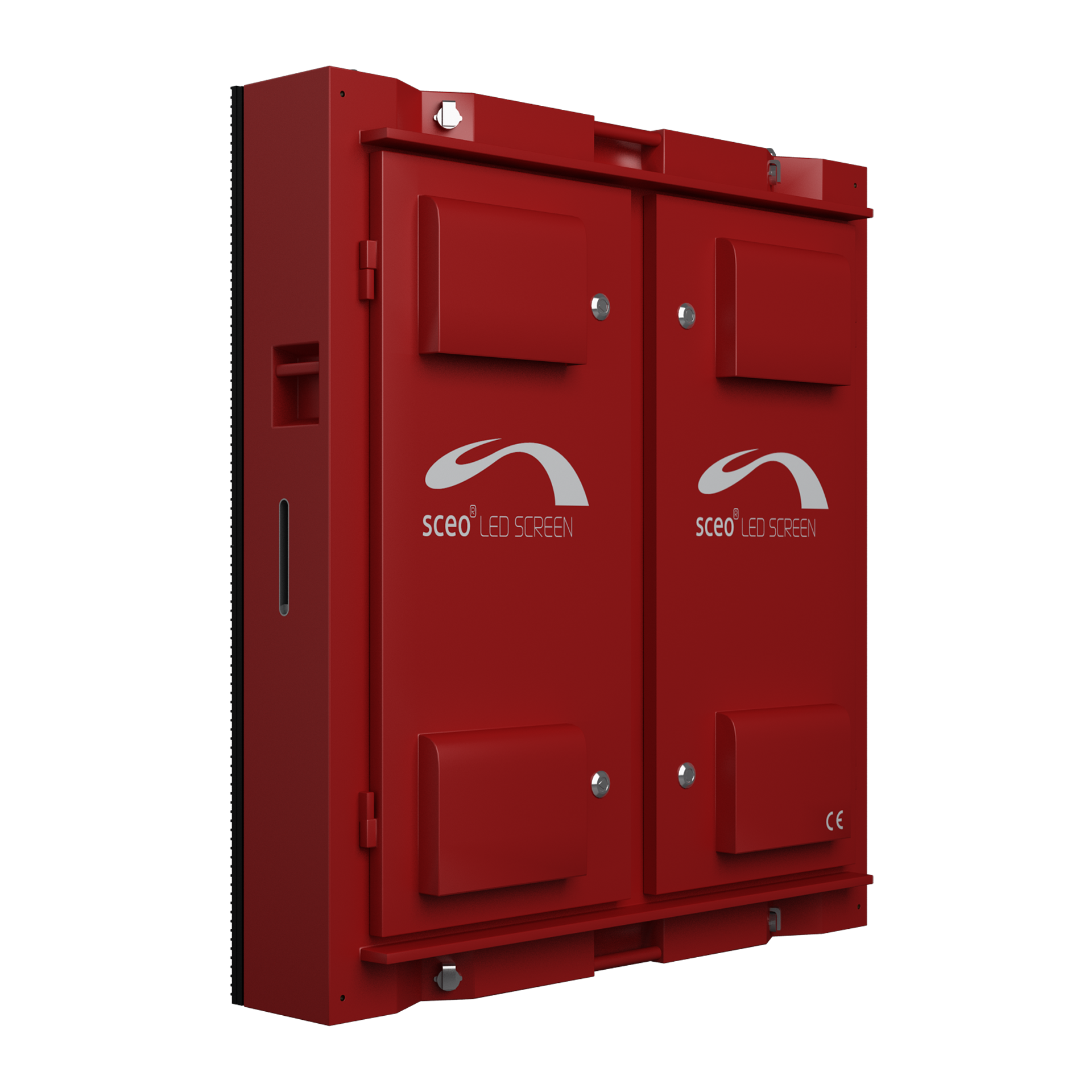

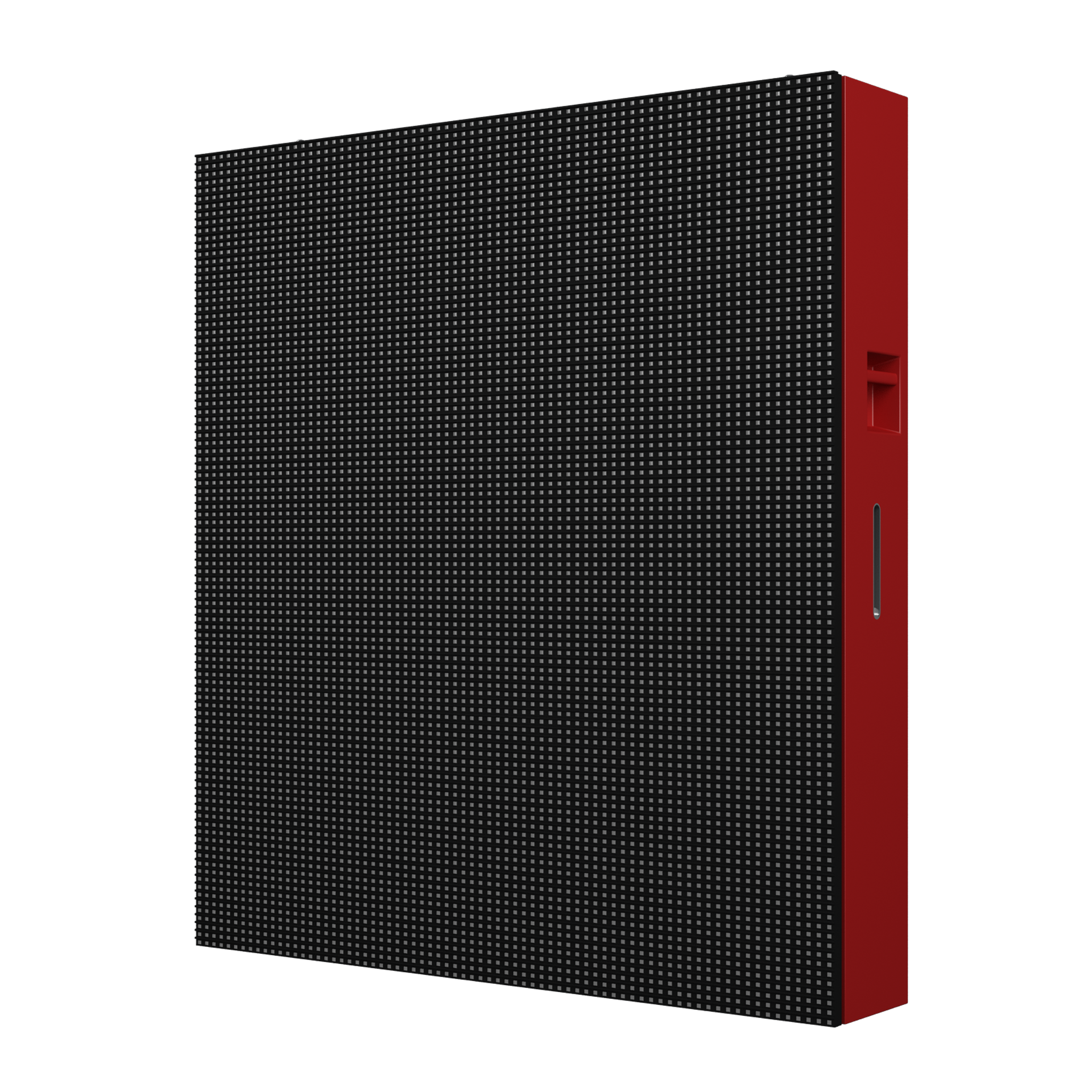

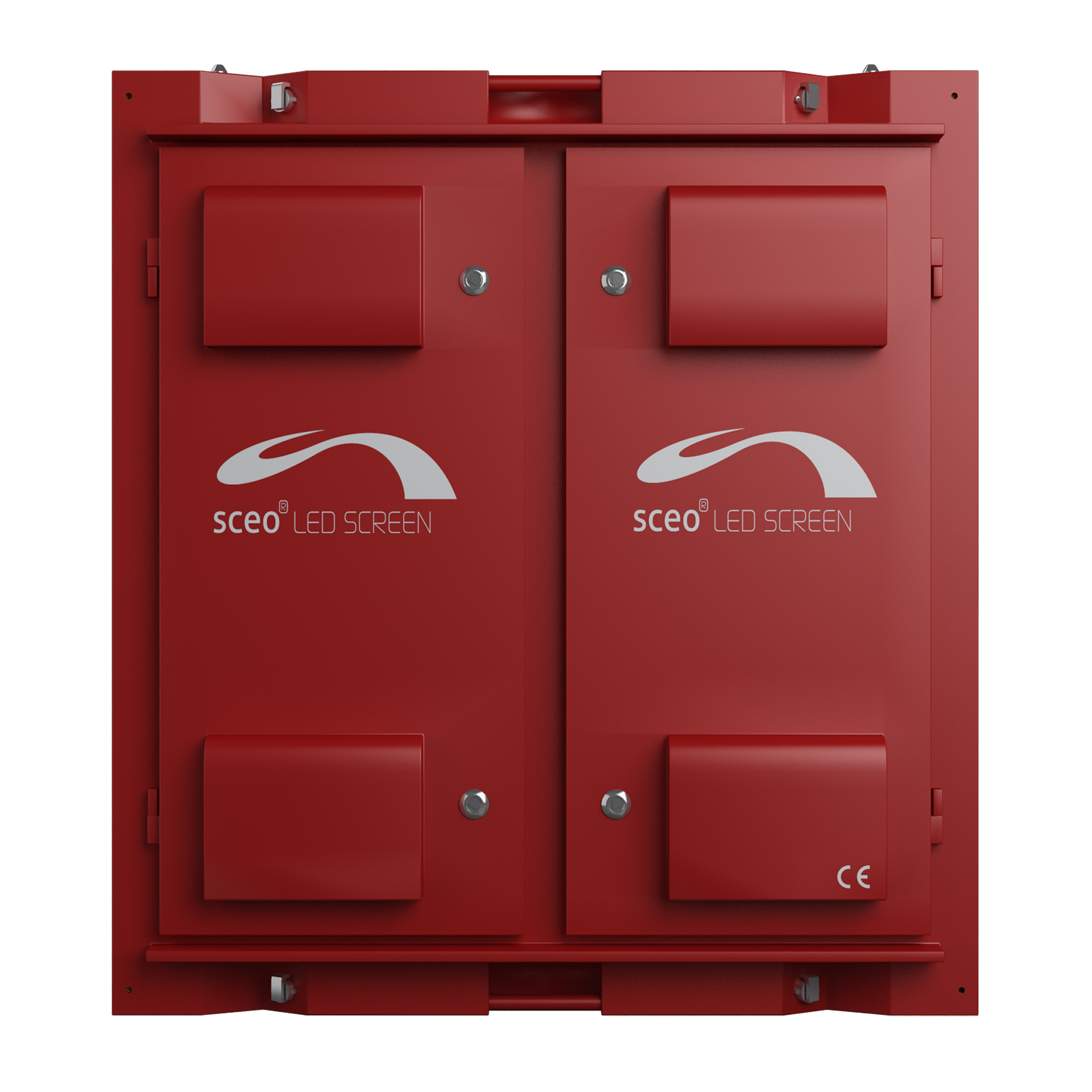

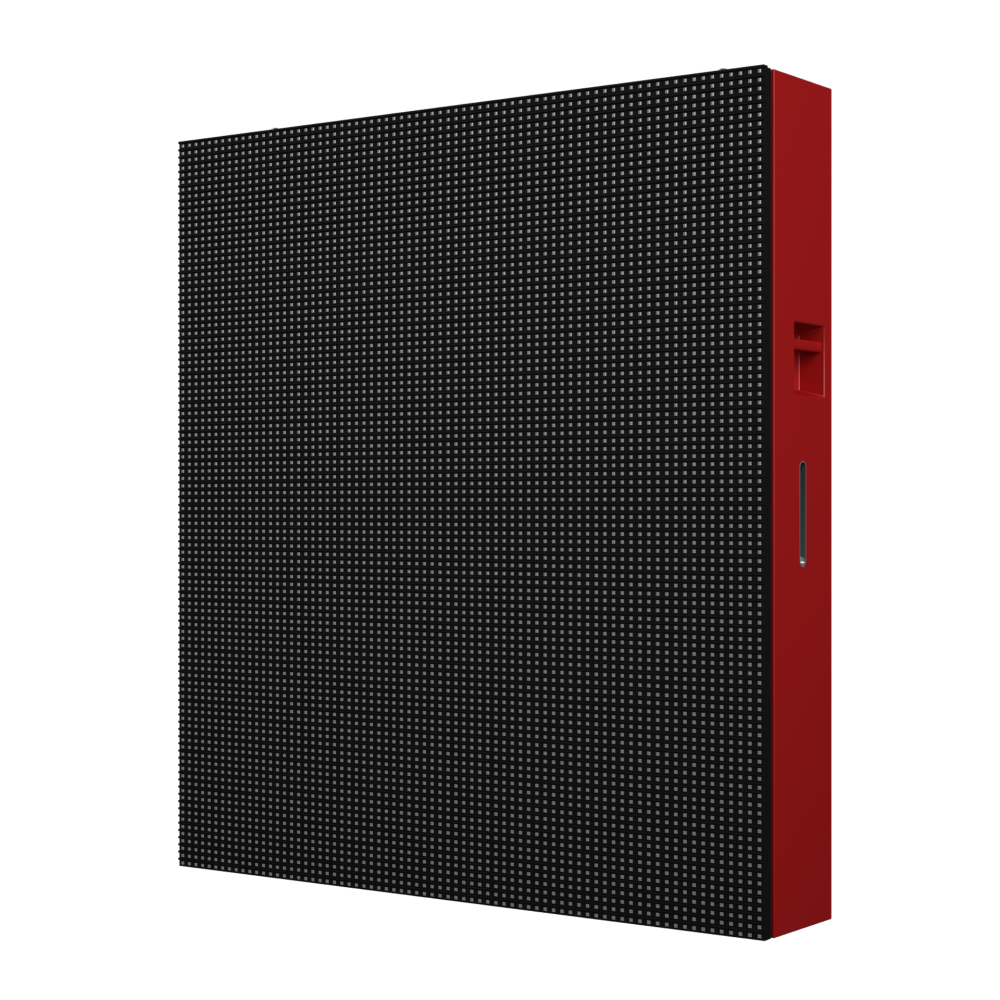

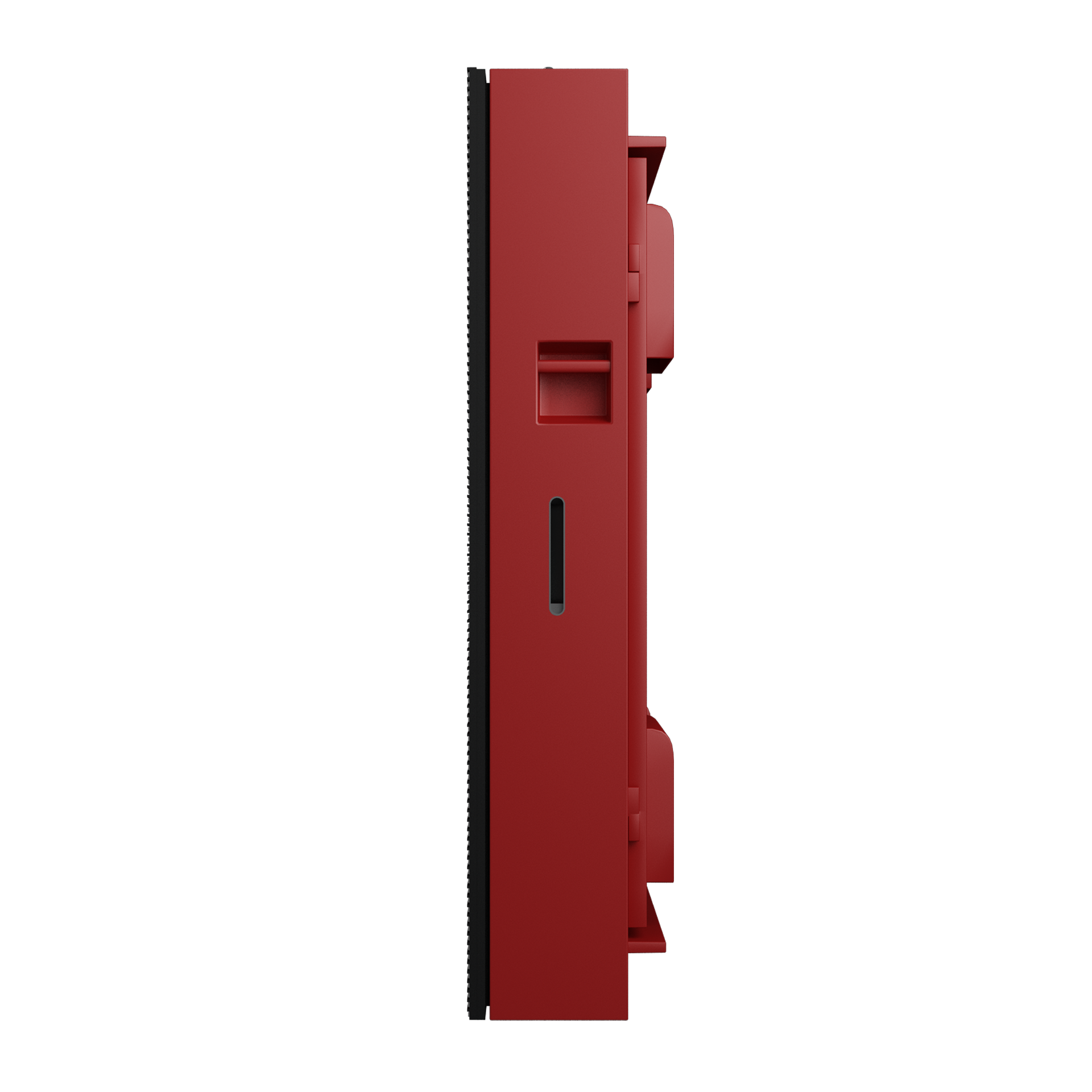

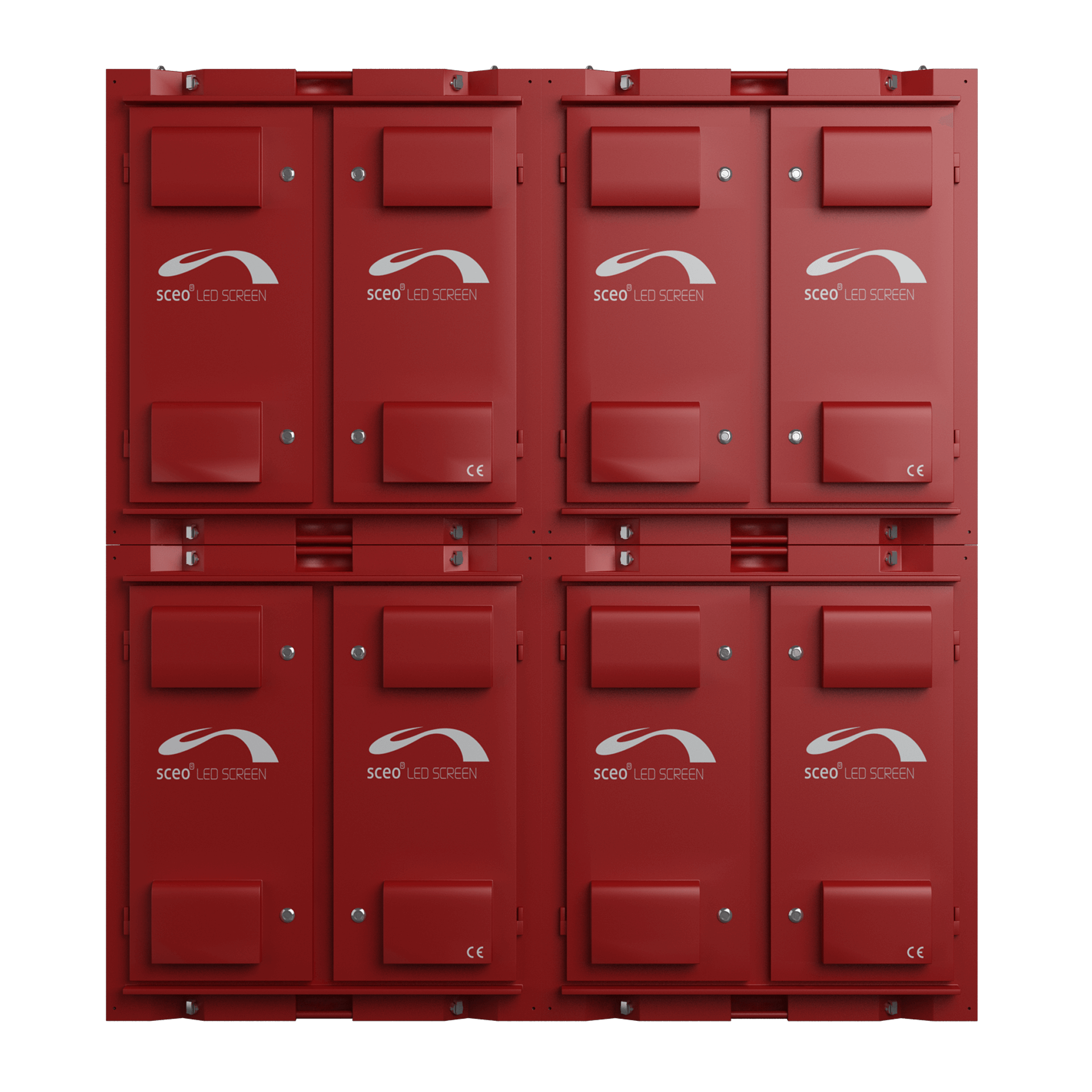

| Cabinet Dimensions | 1,000*1,000mm 39.37*39.37in |
640*640mm 25.20*25.20in |
640*640mm 25.20*25.20in |
768*768mm 30.24*30.24in |
1,024*768mm 40.31*30.24in |
| Cabinet Resolution (pixels) | 160*160 | 80*80 | 64*64 | 64*64 | 64*48 |
| Brightness (nits) | 6,000 | 6,000 | 6,000 | 6,000 | 6,000 |
| Max Power consumption (W/m2) | 1,070 | 930 | 770 | 800 | 825 |
| Best viewing distance (m) | 7~20 | 10~27 | 12~33 | 15~40 | 20~53 |
| Viewing angle (vertical) | 140o | 140o | 140o | 140o | 140o |
| Viewing angle (horizontal) | 140o | 140o | 140o | 140o | 140o |
| Gray Scale levels (bits) | 16 | 16 | 16 | 16 | 16 |
| Refresh rate (Hz) | >600 | >600 | >600 | >600 | >600 |
| Protection rating | Front IP65; Rear IP54 | Front IP65; Rear IP54 | Front IP65; Rear IP54 | Front IP65; Rear IP54 | Front IP65; Rear IP54 |
| LED lifetime (hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Input voltage | 90~ 260VAC, 50/60Hz | ||||
| Humidity range | 10%~99% | 10%~99% | 10%~99% | 10%~99% | 10%~99% |
| Temperature Range | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 | -20 ~60 |
Parameters can be modified according to the individual order.
