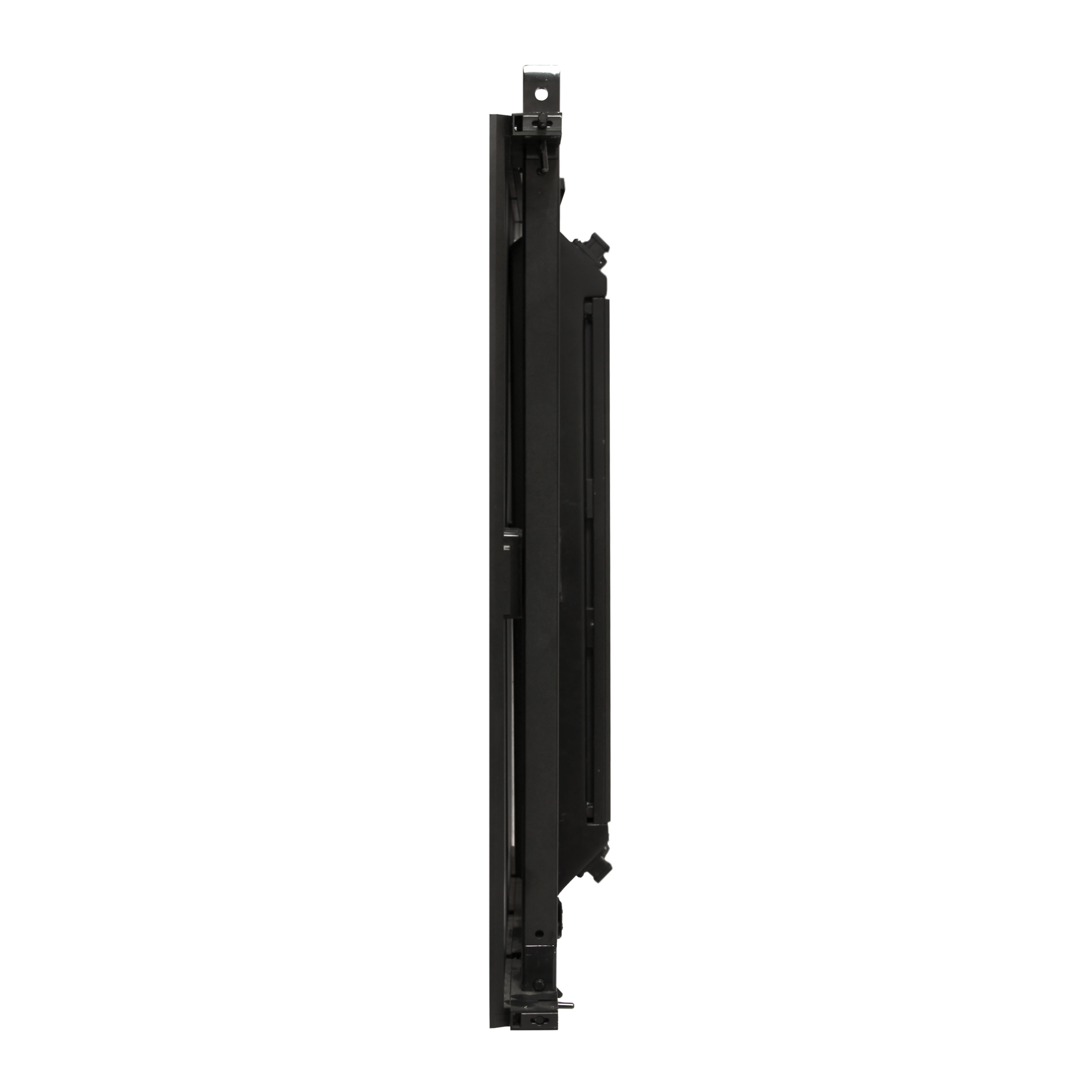

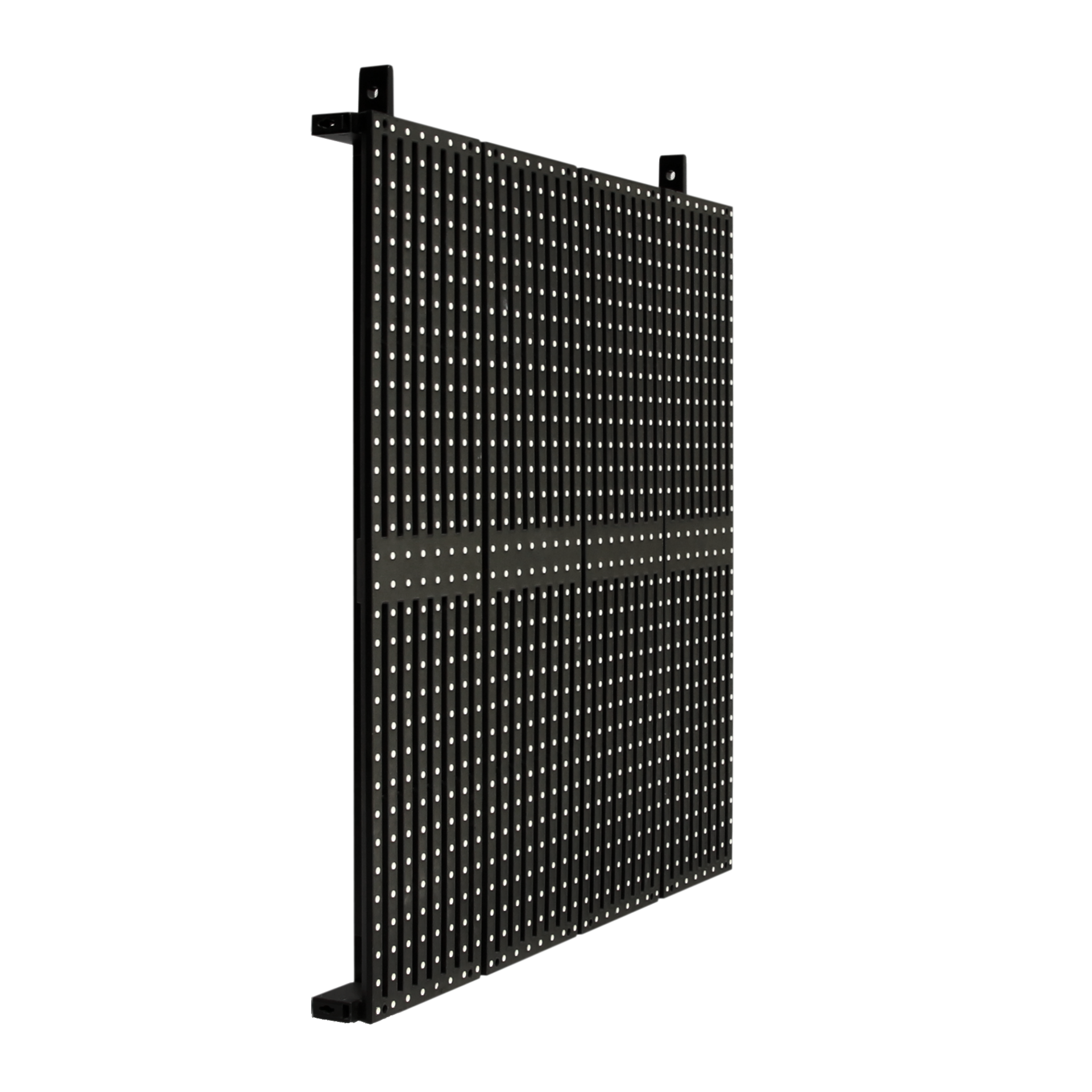

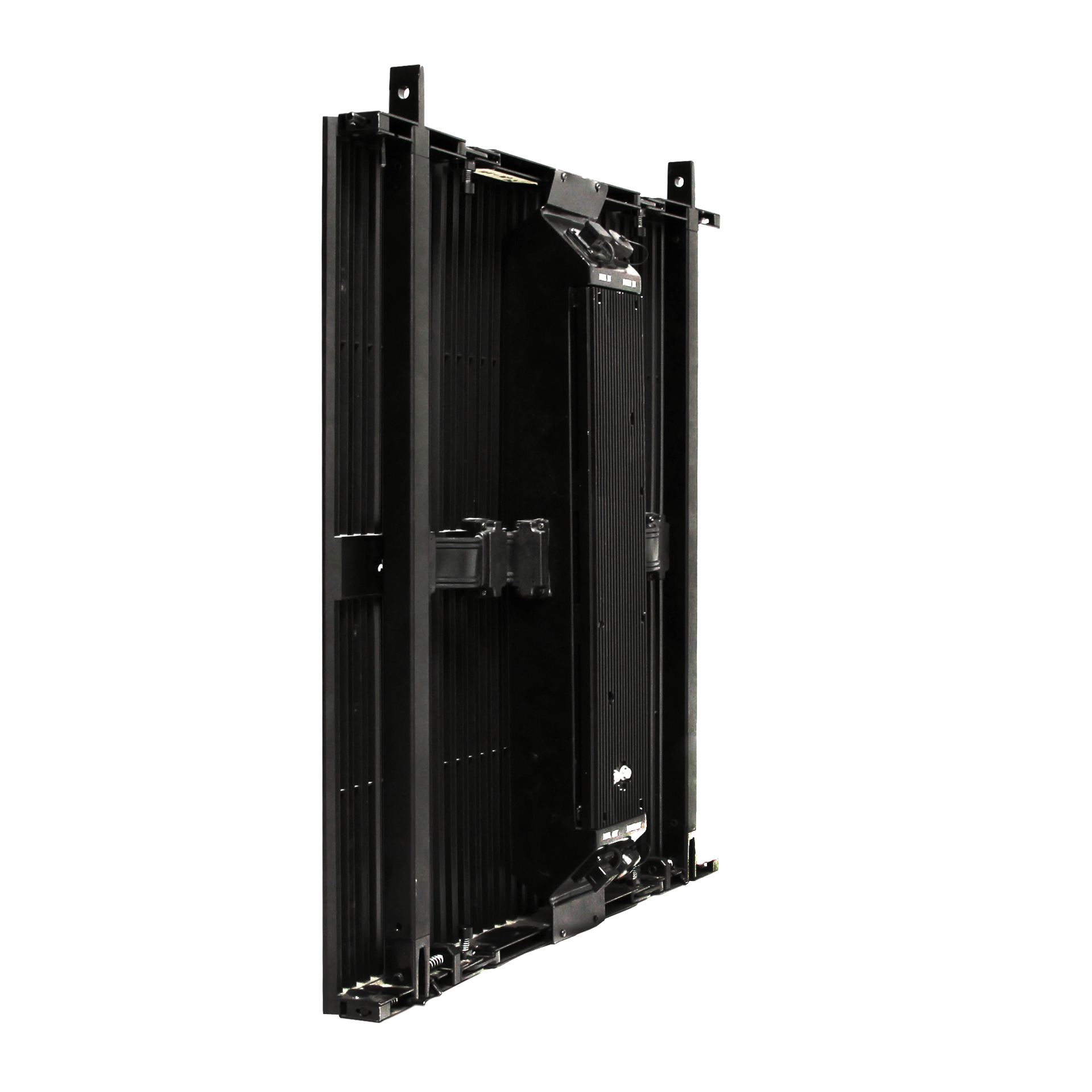

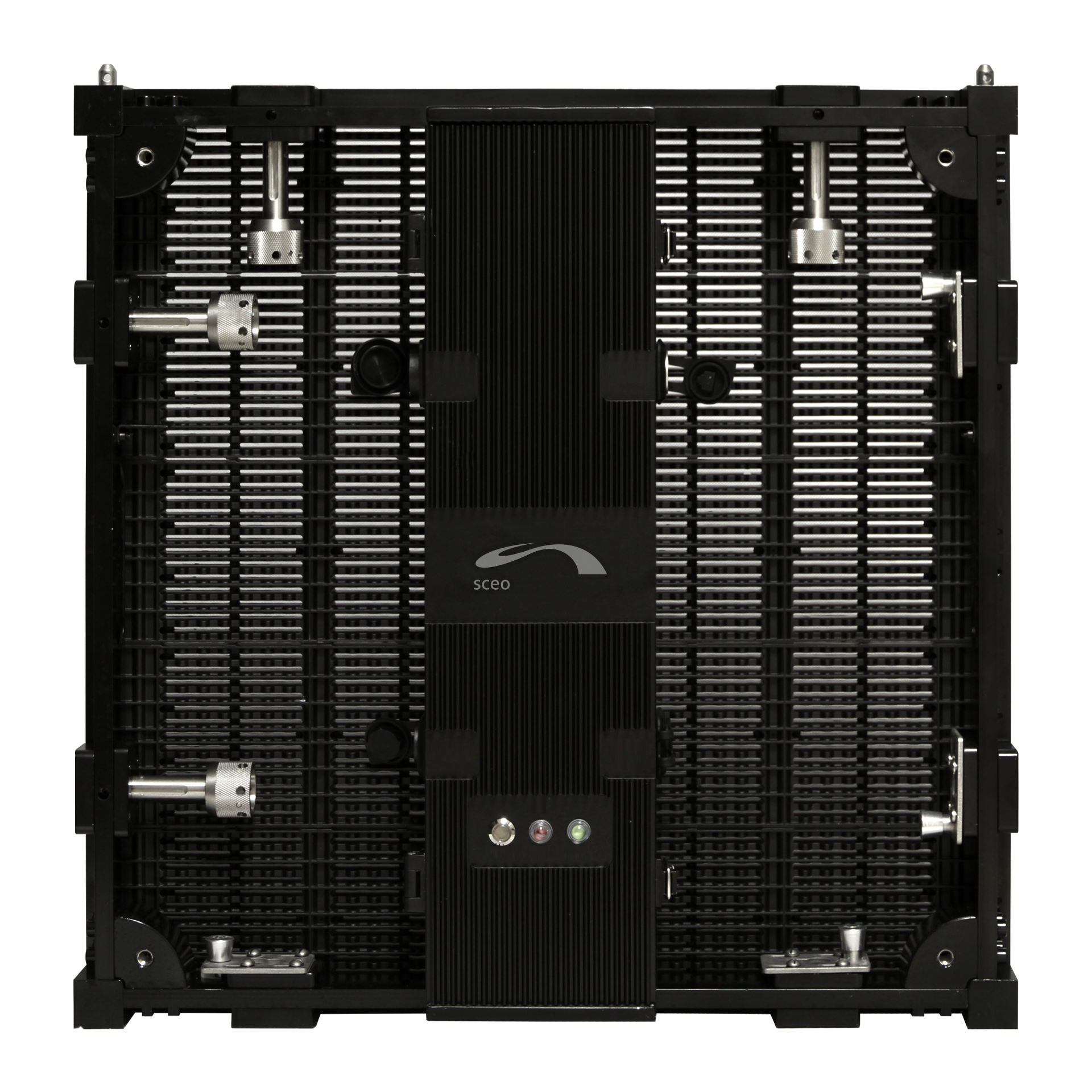

Type: LED screen dedicated for indoor and outdoor installation of light structure and transparent construction

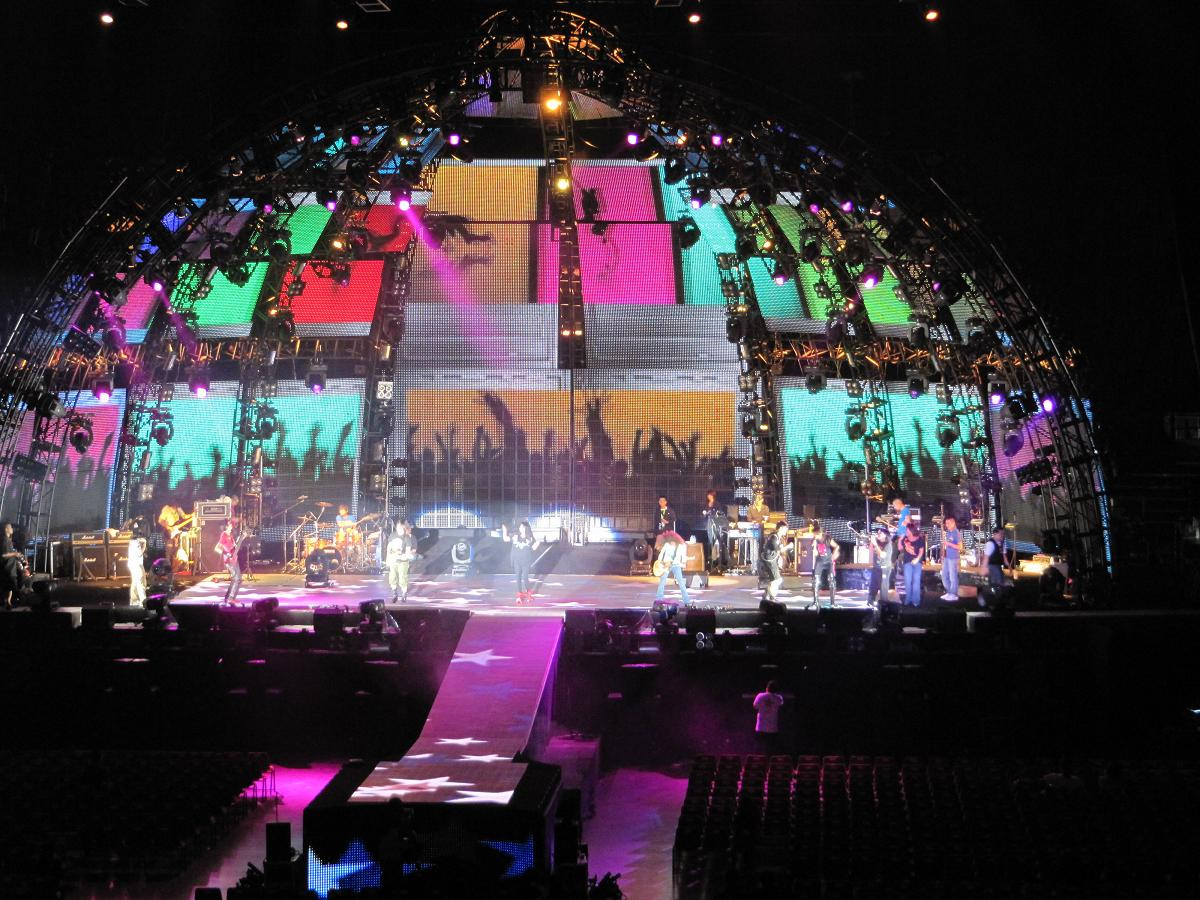

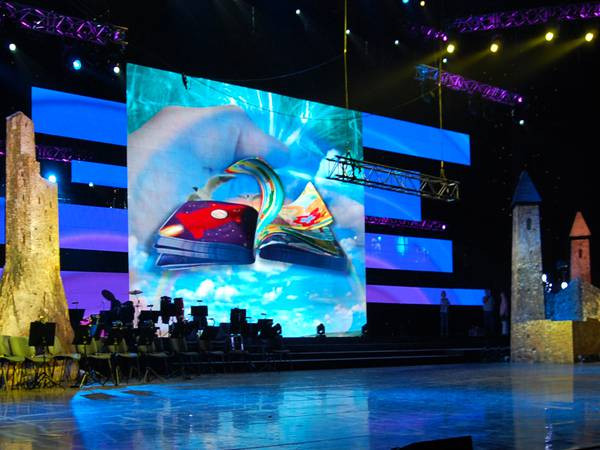

Application: Concert scenes, outdoor TV releases, sports stadiums, outdoor entertainment centres, building facades

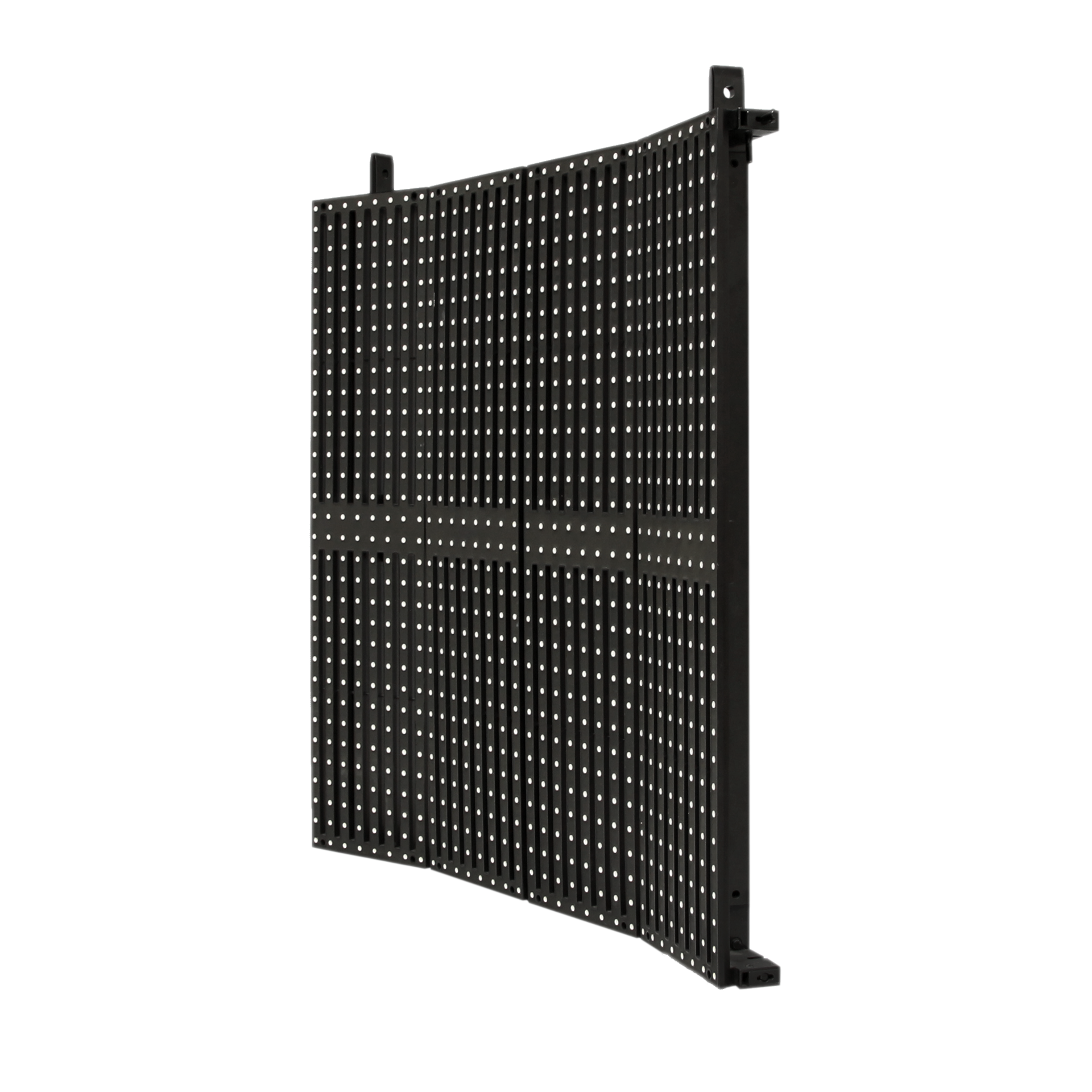

Distinguishing feature: Ability to fit random surfaces, transparent structure
| Pixel pitch: | 7.14 mm (0.28in) | 9 mm (0.35in) | 12.5 mm (0.49in) | 18.75 mm (0.73in) |
| Pixel Density (pixels/m2) | 19,600 | 12,345 | 6,400 | 2,844 |
| Pixel Configuration | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Cabinet Dimensions (W*H*D) | 500*500*98mm 19.7*19.7*3.9in |
576*576*92mm 22.7*22.7*3.6in |
600*600*91mm 23.6*23.6*3.5in |
600*600*91mm 23.6*23.6*3.5in |
| Cabinet Resolution (piksels) | 70*70 | 64*64 | 48*48 | 32*32 |
| Weight (kg/cabinet) | 9kg (19.8lb) | 8.5kg (18.7lb) | 6.2kg (13.6lb) | 8kg (17.6lb) |
| Brightness (nits) | 5,000 | 5,000 | 4,000 | 6,500 |
| Best viewing distance (m) | 9~24 | 11~30 | 16~42 | 23~62 |
| Max Power consumption (W/m2) | 700 | 750 | 450 | 600 |
| Viewing angle | Horizontal: 140o, Vertical: 140o | |||
| Gray Scale levels (bits) | 12~16 | 16 | 16 | 16 |
| Protection rating | IP65 | IP65 | IP65 | IP65 |
| Refresh rate (Hz) | High: >=2000; Zwyczajna: >=1000 | >600 | >600 | >1,800 |
| Material | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy |
| LED lifetime (hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Input voltage | 100~ 200VAC, 50/60Hz | 90~ 260VAC, 50/60Hz | 90~ 260VAC, 50/60Hz | 90~ 260VAC, 50/60Hz |
| Rotation Angle | N/A | -15o ~ +15o | -15o ~ +15o | -15o ~ +15o |
| Humidity range | 10%~80% | 10%~99% | 10%~99% | 10%~99% |
| Temperature Range | -20 ~ 50 | -20 ~ 60 | -20 ~ 60 | -20 ~ 60 |
Parameters can be modified according to the individual order.
